MTD010786

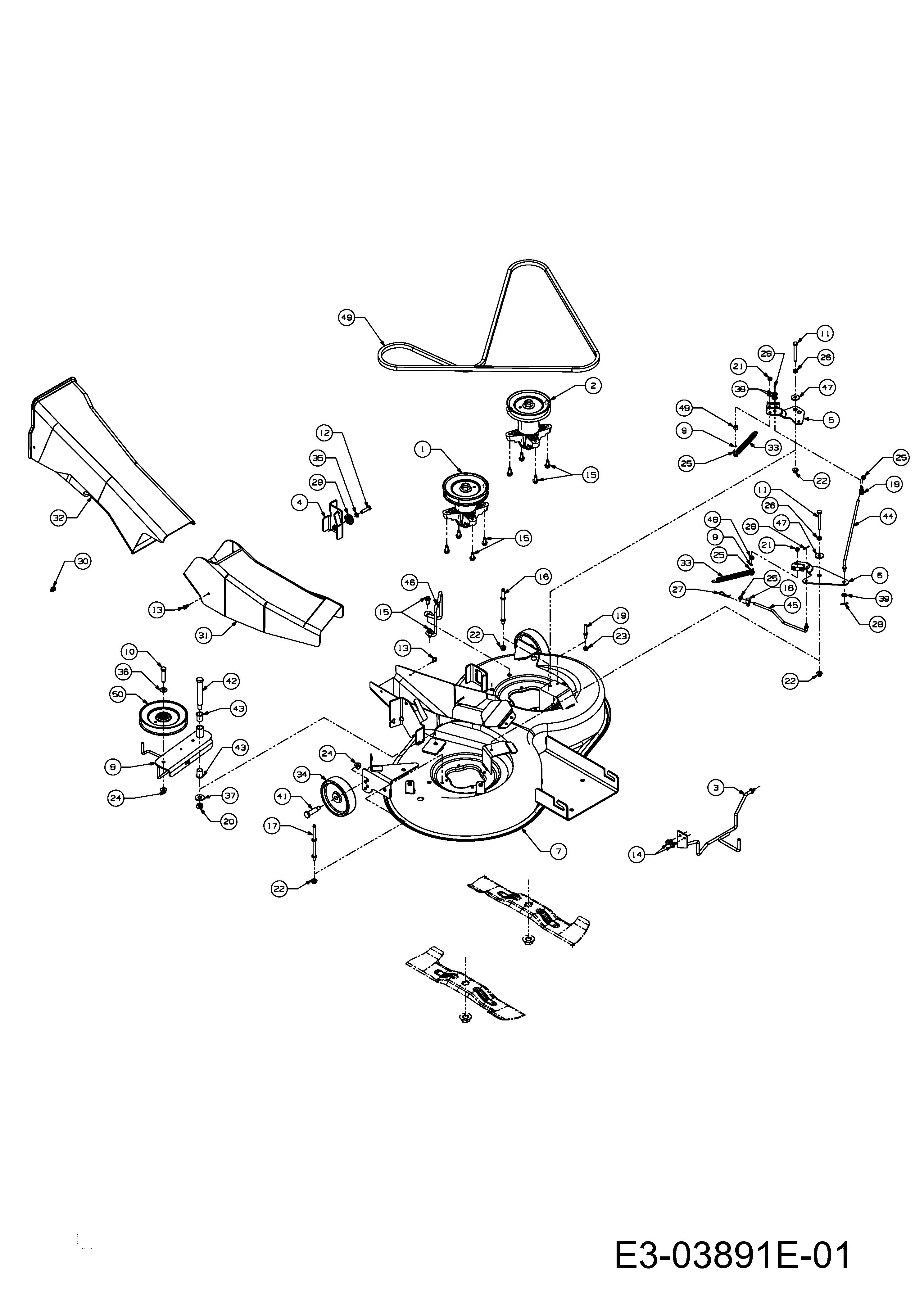

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	618-04197B	SPINDLE ASSY	£151.86	Add
002	918-0409C	KNIFE SHAFT ASSEMBLY PULLEY 5.39 DIA	£150.30	Add
003	647-04144	KEEPR ASM:FRM:92cm	£26.08	Add
004	683-04396637	BRKT ASM:DECK:HNGR ADJ	£24.00	Add
005	983-04409	BRAKE ASM:DECK:30IN	£21.98	Add
006	983-04417	BRAKE ASM:DECK	£21.70	Add
007	683-04418E-S	DECK 92CM BLACK	£562.16	Add
008	683-04420	BRKT ASM:IDLR	N/A	POA
009	710-0106	HHCS:1/4-20:1.25:GR5:SPEC	£3.95	Add
010	710-0347	HEX SCR	£3.72	Add
011	710-0378	HHCS:5/16-18:2.50:GR5:STD	£3.80	Add
012	710-0528	SCREW (DNR)	£3.55	Add
013	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
014	710-0607	SELF TAP SCREW	£4.71	Add
015	710-1260A	SCREW	£4.00	Add
016	711-05319	PIN:BELT GUARD:5/16x4.75 LG	£12.45	Add
017	711-05320	PIN:BELT GUARD:5/16x4.75 LG	£14.70	Add
018	711-0736	FERRULE-ADJ:1/4-20 x 1.00	£15.86	Add
019	711-0993	BELT GUARD PIN Ò1/4 x 1.43	£4.50	Add
020	712-0290	NUT 7/16 CAD P/T LOCK TYPE 5	£2.78	Add
021	712-0291	LOCK-NUT	£2.77	Add
022	712-04063	FLANGED NUT	£4.20	Add
023	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
024	712-04065	NUT	£4.02	Add
025	712-3006	NUT	£2.77	Add
026	712-3007	HEX JAM NUT	£3.07	Add
027	714-0145	R CLIP	£2.78	Add
028	714-0507	COTTER PIN 3/32 DIA	£3.13	Add
029	717-04074	GEAR DECK ADJUSTMENT	£11.11	Add
030	729-04033	NO LONGER AVAILABLE	N/A	POA
031	731-06251	LOWER CHUTE	£66.87	Add
032	731-06252	UPPER CHUTE	£86.01	Add
033	732-0604A	SPR:EXT: .56 DIA x 5.52 LG	£17.65	Add
034	734-0973	WHEEL DECK 5in. DIA	£11.16	Add
035	736-0119	LOCK WASHER 5/16	£3.33	Add
036	736-0300	WASHER	£2.81	Add
037	736-04097A	WASHER	£3.33	Add
038	736-0700	FLAT WASHER	£2.63	Add
039	736-3020	WASH:FLAT:.271 X.630 X.065	£2.98	Add
041	738-0373	AXLE BOLT	£6.84	Add
042	738-0476	SHOULDER SCREW	£4.70	Add
043	741-0591	FLANGE BEARING	£3.44	Add
044	747-04781	ROD:BRAKE:DECK	£22.01	Add
045	747-04782B	ROD:BRAKE:DECK	£25.24	Add
046	747-04840A	BELT KEEPER ROD	£12.50	Add
047	748-0234	SHOULDER SPACER	£5.43	Add
048	750-05381	SPCR:.254 ID x.500 OD x.275	£4.70	Add
049	754-04175	BELT FOR E. DECK (L.T. AUTO)	£67.18	Add
050	756-04050	IDLER PULLEY	£38.38	Add
