MTD009359

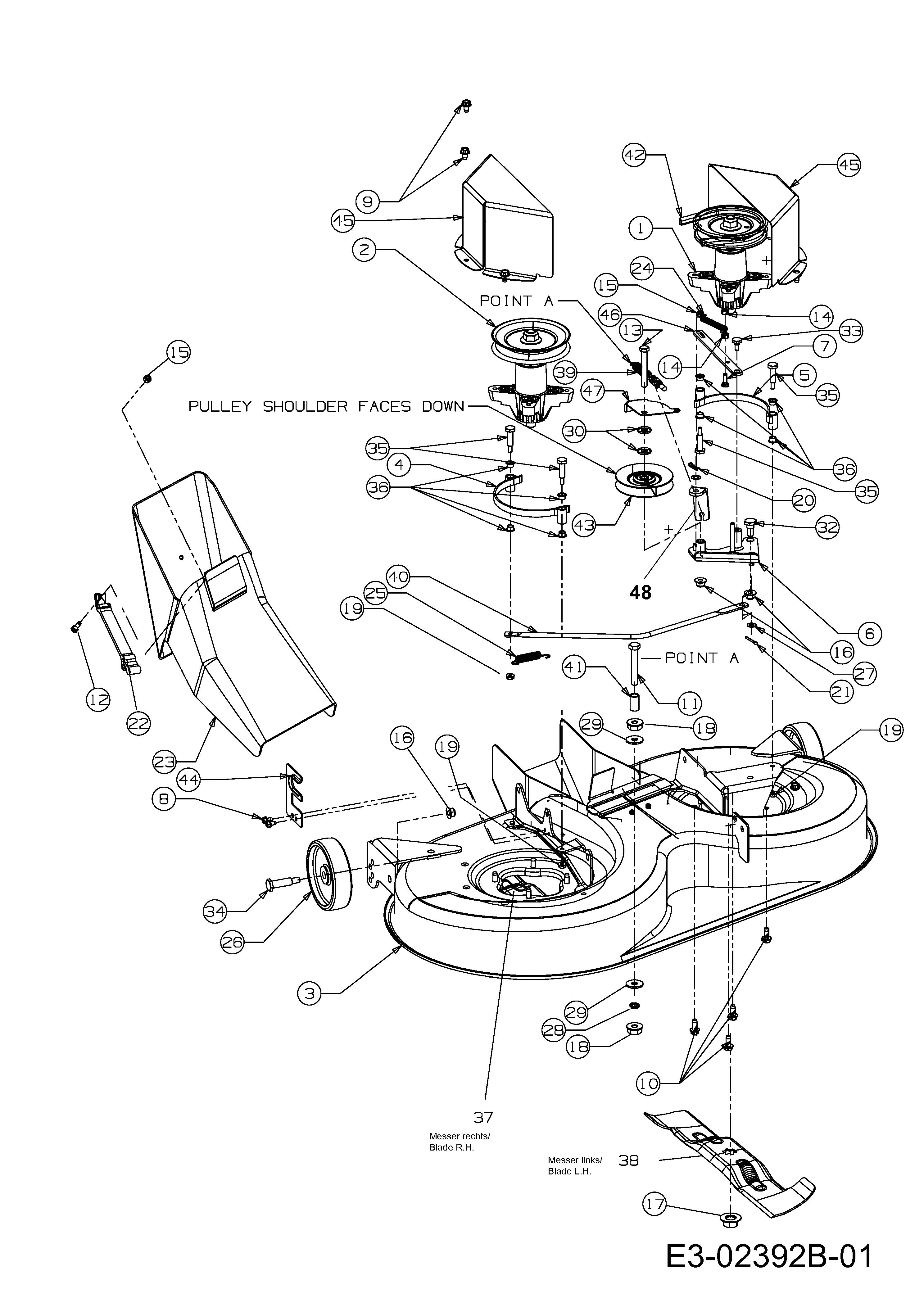

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD009359

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 918-0408A SPDL ASM:PUL:5.17 DIA 618-0408A £131.67 Add
002 918-0409C KNIFE SHAFT ASSEMBLY PULLEY 5.39 DIA £125.17 Add
003 683-0286D DECK ASM:92 cm N/A POA
004 683-0426-Z BRAKE ASM:RIGHT £31.45 Add
005 683-0427-Z BRAKE ASM:LEFT £25.19 Add
006 683-0451A-Z V-BELT CLAMP COMPLETE N/A POA
007 710-0412 HHCS:1/4-28:.75:GR5:STD £3.20 Add
008 710-0599 HEX TT SCREW 1/4-20 £4.16 Add
009 710-0607 SELF TAP SCREW £3.97 Add
010 710-0602 SCREW:TT:5/16-18:1.00:HXINDWSH £5.54 Add
011 710-1735 SCREW M10x60-8.8 DIN 931 £4.41 Add
012 710-3015 SCREW HEX CAP £2.82 Add
013 710-3022 HEX BOLT UTV £2.82 Add
014 712-0117 NUT:CTR LOCK:1/4-28:GR A £2.76 Add
015 712-0324 HEX. INS L NUT £1.36 Add
016 712-04065 NUT UTV £1.60 Add
017 712-05134 NUT £2.92 Add
018 712-0635 NUT M10-8 DIN 934 £2.42 Add
019 712-3027 LOCK NUT £2.38 Add
020 714-0104 PIN INTERNAL COTTER £2.36 Add
021 714-0115 COTTER PIN £2.89 Add
022 723-0383 STRAP ASSY-RETAINER £8.32 Add
023 931-0155 FRONT CHUTE £59.23 Add
024 732-0303 SPRING:EXTN:.375 x 3.18 LG £5.69 Add
025 732-0433 EXTENSION SPRING £9.36 Add
026 734-0973 WHEEL DECK 5in. DIA £9.66 Add
027 736-0204 F.I. WASHER £3.04 Add
028 736-0686 LOCK WASHER B10 DIN 127 N/A POA
029 736-0702 WASH:FLAT:10.5IDX30OD:DIN 9021 £2.42 Add
030 736-3072 WASH:FLAT:.38 x.93 x.110:HT £3.51 Add
032 738-0143 SHOULDER BOLT £11.95 Add
033 738-0255 BOLT SHOULDER £5.54 Add
034 738-0373 AXLE BOLT £5.74 Add
035 738-0572 SHOULDER BOLT £7.32 Add
036 741-3073 BEARING, HEX FLANGE £4.84 Add
037 742-0672 BLADE R/H £28.45 Add
038 742-0673 BLADE LEFT HAND £28.45 Add
039 746-1123A DECK CABLE ONLY £38.58 Add
040 747-04398 ROD:BRAKE:DECK 92 cm 400 £23.40 Add
041 750-1257 SPCR:.630x.440x1.09 LG 750-1287 N/A POA
042 754-04087 BELT:V TYP:B x 97.16 LG:KEVL £60.24 Add
043 756-0487 PULLEY £31.04 Add
044 783-04734 BRKT:KEEPER:400 E-DECK £22.02 Add
045 783-0864637 BELT GUARD £30.77 Add
046 783-1086A LINK:BRAKE N/A POA
047 783-1087637 GUARD:BELT 783-1087 £8.48 Add
048 783-1169-Z BRKT:CABLE:92cm DECK:MAN-PTO £16.21 Add
