MTD009089

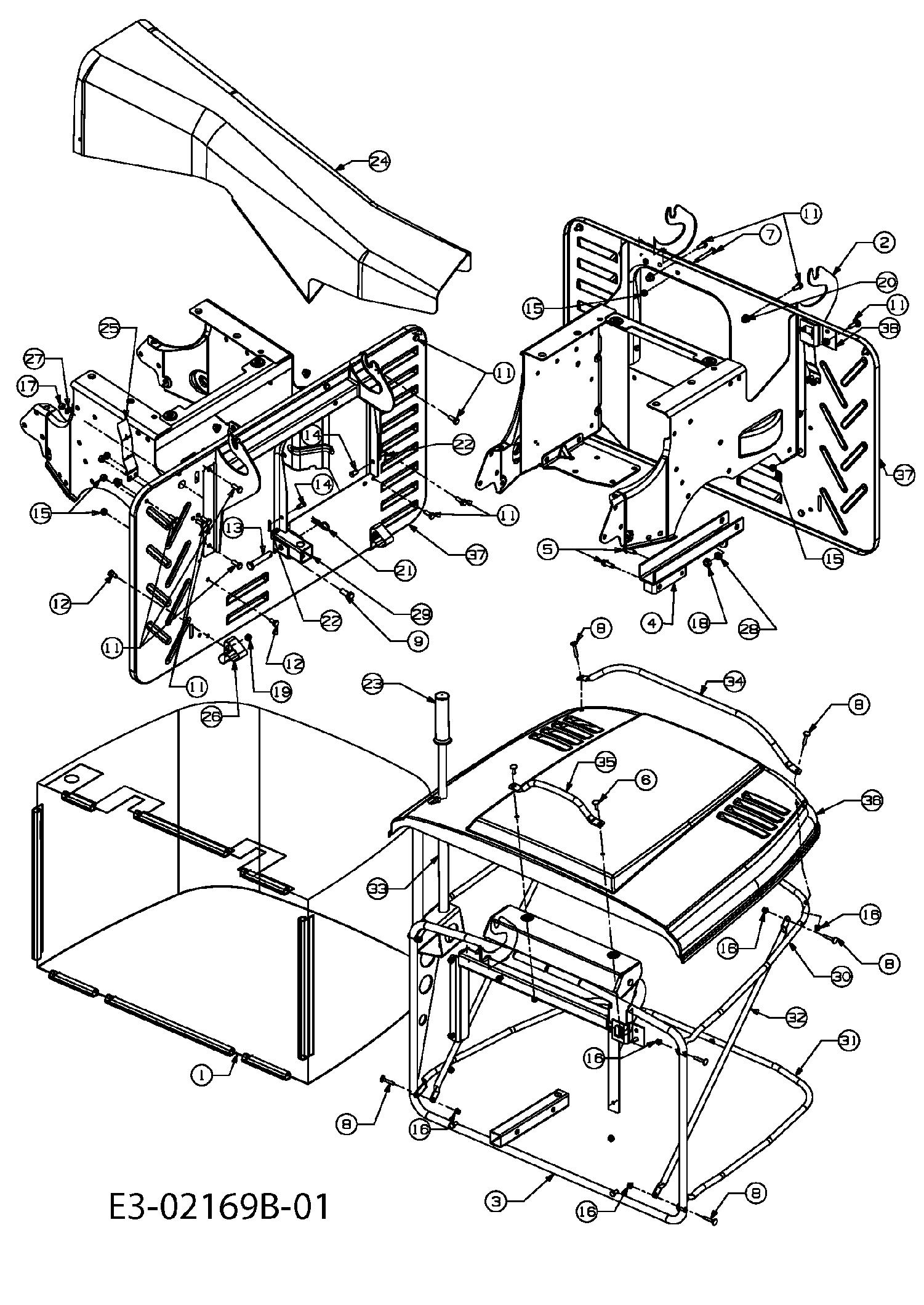

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD009089

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 664-0125A GRASS BAG TISSUE £160.96 Add
002 683-0230A BRKT:COMPL:GRASS CTCHR N/A POA
003 683-0231637 TUBE FRAME ASM WELDING PART 683-0231 £150.58 Add
004 683-0428 HITCH BRACKET £29.40 Add
005 710-0642 SCREW-HEX HD TAP 4-20 x 7.5 £3.11 Add
006 710-1360 SCREW DIN 603 M5x16-8.8 £3.41 Add
007 710-1391 Screw 21.1443.55 £4.78 Add
008 710-1612 BOLT:CRG:5mm x 30.0 LG £5.01 Add
009 710-1681 HEX BOLT M8 X 20 DIN 933 (RED) £2.75 Add
011 710-1690 HHCS:M6-1:16.00 £3.89 Add
012 710-1691 HEX. SCREW:M6X12 DIN 933 8.8 £4.60 Add
013 711-0679A CLEVIS PIN £5.62 Add
014 711-0701 CLEVIS PIN £4.12 Add
015 712-0633 NUT:HEXLK:M6-1 DIN 980 £4.03 Add
016 712-0642 NUT FLGLK M5 0.8 £2.27 Add
017 712-0689 NUT:HEX:M6-1:DIN 934 £2.16 Add
018 712-0690 NUT:HEX:M8-1.25 DIN 934 £2.33 Add
019 712-0691 HEX NUT M6 DIN 985 £1.28 Add
020 712-0713 Nut £3.60 Add
021 714-0147 COTTER PIN £2.96 Add
022 714-0507 COTTER PIN 3/32 DIA £2.65 Add
023 720-0301 GRIP £8.24 Add
024 931-0156 CHUTE £47.10 Add
025 732-0750A SPACER: SWITCH ACTUATOR £10.47 Add
026 732-0838A SPRING £5.84 Add
027 736-0222 WASH:LOCK:1/4:EXTRN (OBSOLETE) N/A POA
028 736-0649A WASHER:LOCK:B8:DIN 12 736-0649 £2.17 Add
029 749-04013B-S HITCH TUBE BLACK £26.88 Add
030 749-1009637 TUBE;GRSBG:UPPER:#03280011 749-1009 N/A POA
031 749-1010637 TUBE:GRSBG:LOWER:#03280014 749-1010 N/A POA
032 749-1011 BRACE-VAR SP £20.98 Add
033 749-1012A TUBE:LVR:BAG:LIFT £22.49 Add
034 749-1013 HANDLE LONG £29.53 Add
035 749-1014637 HANDLE SHORT 749-1014 N/A POA
036 783-0583 HOOD:CATCHER N/A POA
037 783-0858637 PLT:RR DIS:36" 783-0858 £56.17 Add
038 783-0931A BRKT:SW:BAG PRESENT N/A POA
