MTD009087

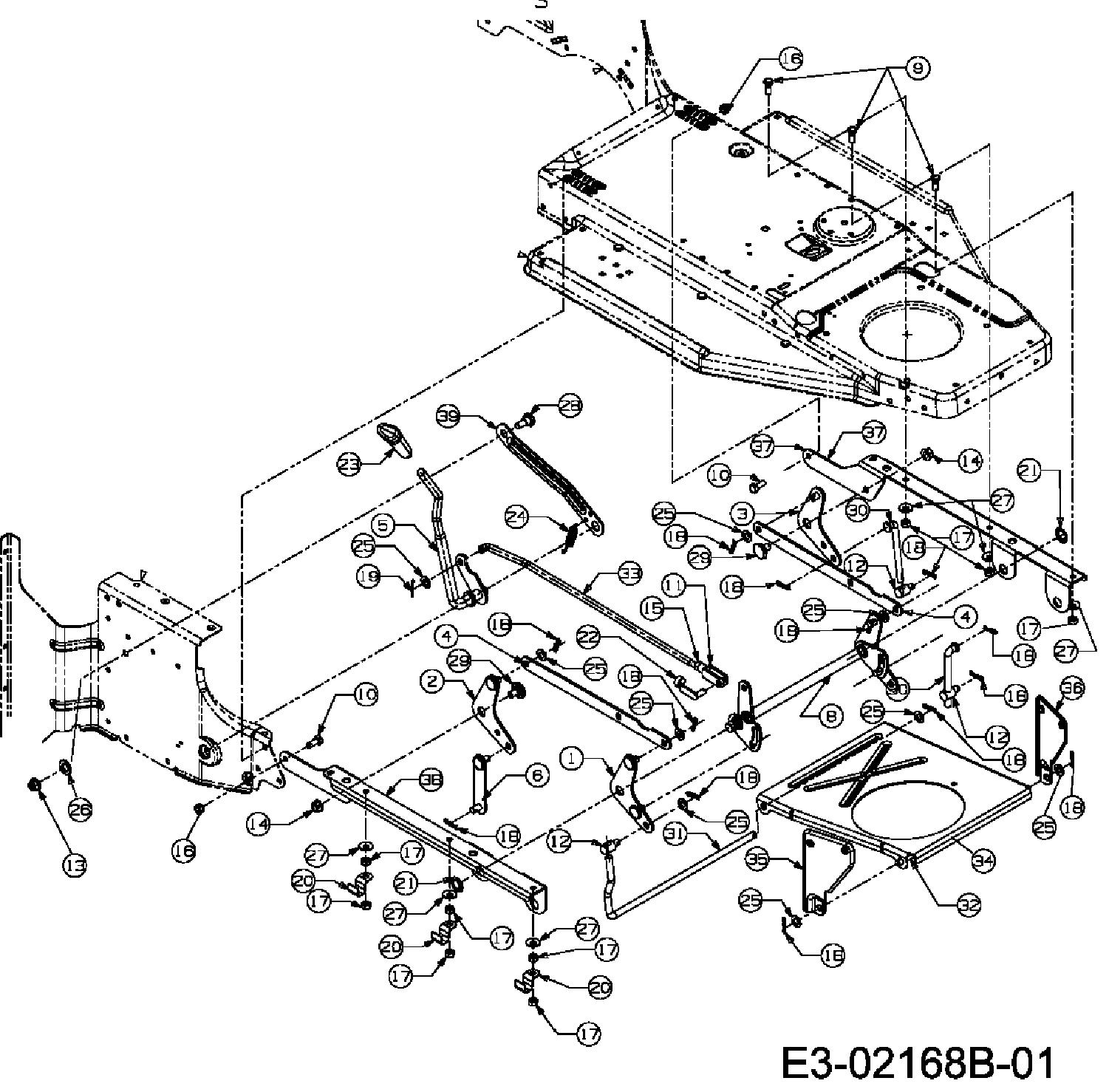

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD009087

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 17554 ASM:DK LFT PVT BRKT R.FR-P £321.12 Add
002 17555637 BRKT ASM:PIVOT:DECK LIFT RH RR 17555 £29.57 Add
003 17556637 BRKT ASM:PIVOT:DECK LIFT LH 17556 £22.22 Add
004 17562637 CONNECTING LINK LH 17562 £11.34 Add
005 647-0056-Z SHF ASM:LIFT £51.45 Add
006 683-0111-Z LINK ASSY. 3.31"LG. £18.92 Add
007 683-0233637 BRKT ASM: PIVOT:DECK LIFT LH 683-0233 £17.76 Add
008 683-0430 SHF ASM:CROSS:92CM £41.62 Add
009 710-1012 BOLT:RIBBED:HD 5/16-24 x.87"LG £3.89 Add
010 710-1681 HEX BOLT M8 X 20 DIN 933 (RED) £2.75 Add
011 711-1407 LINK £11.71 Add
012 711-3397 FERRULE ADJUSTMENT £10.68 Add
013 712-04065 NUT UTV £3.39 Add
014 712-0431 NUT £2.71 Add
015 712-0690 NUT:HEX:M8-1.25 DIN 934 £2.33 Add
016 712-0692 HEX NUT £2.57 Add
017 712-3057 NUT 5/16-24 £2.35 Add
018 714-0104 PIN INTERNAL COTTER £2.36 Add
019 714-0111 COTTER PIN £2.71 Add
020 726-0354 CLAMP 16mm £7.07 Add
021 726-04028 NUT:PUSH:5/8 DIA. £3.97 Add
022 726-0457 CLIP £7.96 Add
023 731-2509 GRIP £13.04 Add
024 732-0898 SPRING:EXTN:12mm DIAx63.93 LG £23.80 Add
025 736-0185 FLAT WASHER (RED) £3.04 Add
026 736-0192 WASH:FL:.535 X .93 X .090 £3.89 Add
027 736-0242 BELL WASHER £3.14 Add
028 738-0143 SHOULDER BOLT £11.95 Add
029 738-0281 SCR:SHLDR:.625 x.17:3/8-16 £8.16 Add
030 747-04351 LINK:HNGR:DECK 400 SD £4.74 Add
031 747-1188B ROD:LIFT:FNT PIVOT DECK 92cm £31.10 Add
032 747-1190B ROD:STAB:FRT 10MM X 11.50 LG 747-1190A N/A POA
033 747-1233 LIFT ROD £50.92 Add
034 783-0850637 PLT:STAB 783-0850 N/A POA
035 783-0851A637 BRKT:STAB:RH 783-0851A N/A POA
036 783-0852A637 BRKT:STAB:LH 783-0852A N/A POA
037 783-0853637 BRKT:SUPT:PIVOT:LH 783-0853 N/A POA
038 783-0854637 BRKT:SUPT:PIVOT:RH 783-0854 N/A POA
039 783-0871637 BRACE:STAB:LIFT 783-0871 N/A POA
