MTD009015

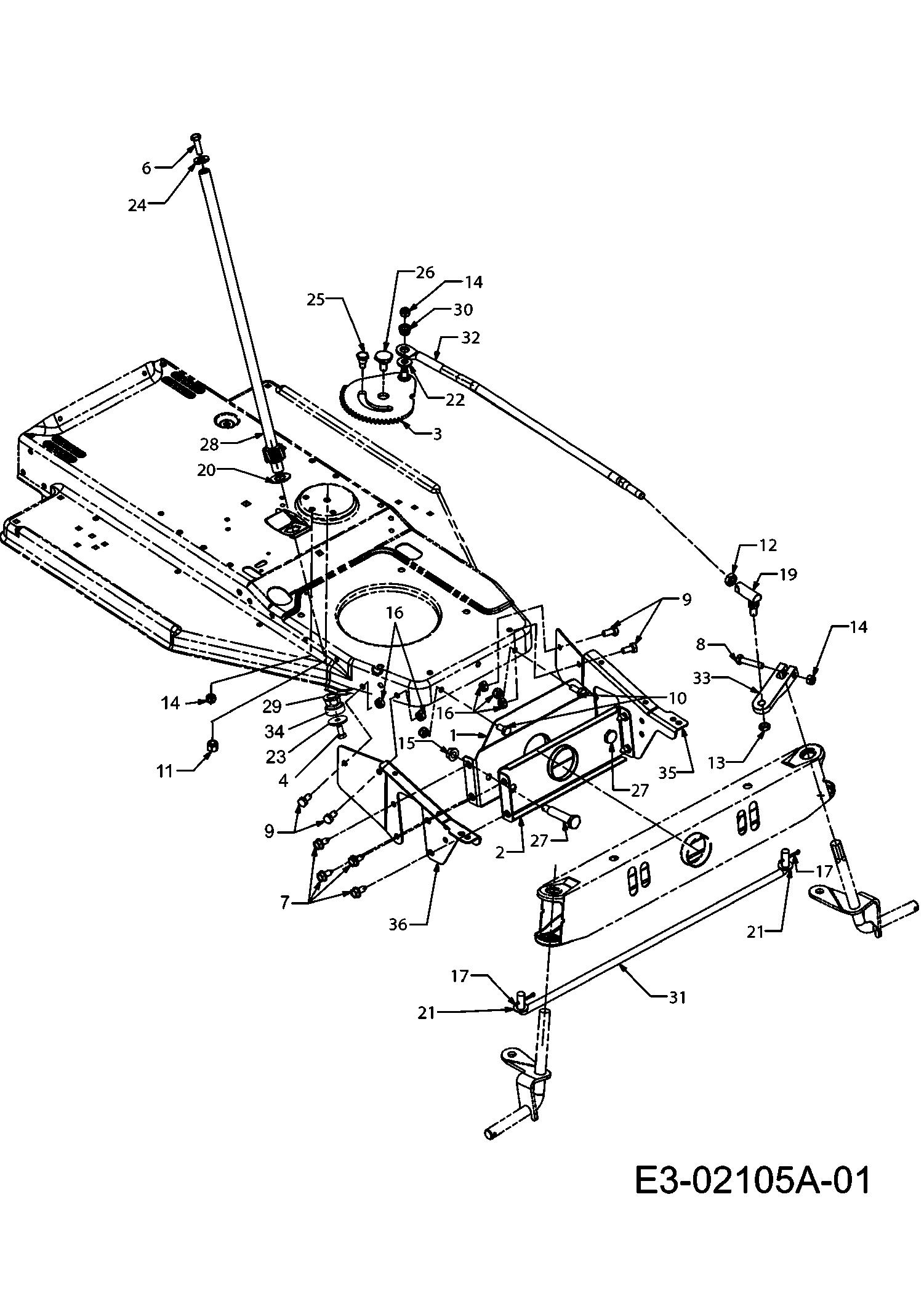

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD009015

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 17547637 PIVOT BAR SUPPORT BRKT-REA 17547 (OBSOLETE) N/A POA
002 17548637 PIVOT BAR SUPP BRACKET FRONT £29.18 Add
003 617-04010A GEAR ASSY SEGMENT £29.77 Add
004 710-0538 HEX L BOLT £3.07 Add
005 710-0602 SCREW:TT:5/16-18:1.00:HXINDWSH £5.54 Add
006 710-0643 BOLT £3.25 Add
007 710-0726 HEX SCREW AB 5/16-12:0.750 £3.01 Add
008 710-0805 SCRE.HHCS:5/16-18:1.50:GR5:STD £4.08 Add
009 710-1376 CAP SCREW £3.79 Add
010 710-1681 HEX BOLT M8 X 20 DIN 933 (RED) £2.75 Add
011 712-0130 HEX. INS L NUT (DNR) £1.80 Add
012 712-0240 NUT £3.07 Add
013 712-0262 NUT:JAMLK:3/8-24:GR2 £10.85 Add
014 712-0429 NUT HEX.INS L NUT £3.77 Add
015 712-0431 NUT £2.71 Add
016 712-0692 HEX NUT £2.57 Add
017 714-0470 COTTER PIN £2.50 Add
019 723-0448A BALL JOINT ASSY £21.74 Add
020 736-0187 FLAT WASHER £2.70 Add
021 736-0226 WASHER:FLAT:.474 x.879 x.064 £2.91 Add
022 736-0300 WASHER £2.39 Add
023 736-0343 WASHER-5/16 x 1.25 £3.84 Add
024 736-3004 FLAT WASHER £2.35 Add
025 738-0141 SHLD SCREW £7.26 Add
026 738-0322A SCR:SHLD:.625 DIA x.217 £12.89 Add
027 738-0527 SCR:SHLDR:.498 DIA X 2.045 £6.91 Add
028 738-0937 STEERING SHAFT £53.87 Add
029 741-0225 HEX FLANGE BEARING £4.14 Add
030 741-0475 PLASTIC BUSHING .38 INCH ID £3.67 Add
031 747-04008 ROD-RIE NON ADJ ZINC £19.02 Add
032 747-04182 DRAG LINK £19.68 Add
033 748-04014B-S ARM-STEERING 748-04014B N/A POA
034 750-0532 SPACER £4.08 Add
035 783-0255B637 PLT:SD:PIVOT BAR-L.H. 783-0255B £22.62 Add
036 783-0256B637 PLT:SD:PIVOT BAR-R.H. 783-0256B £20.84 Add
