MTD009010

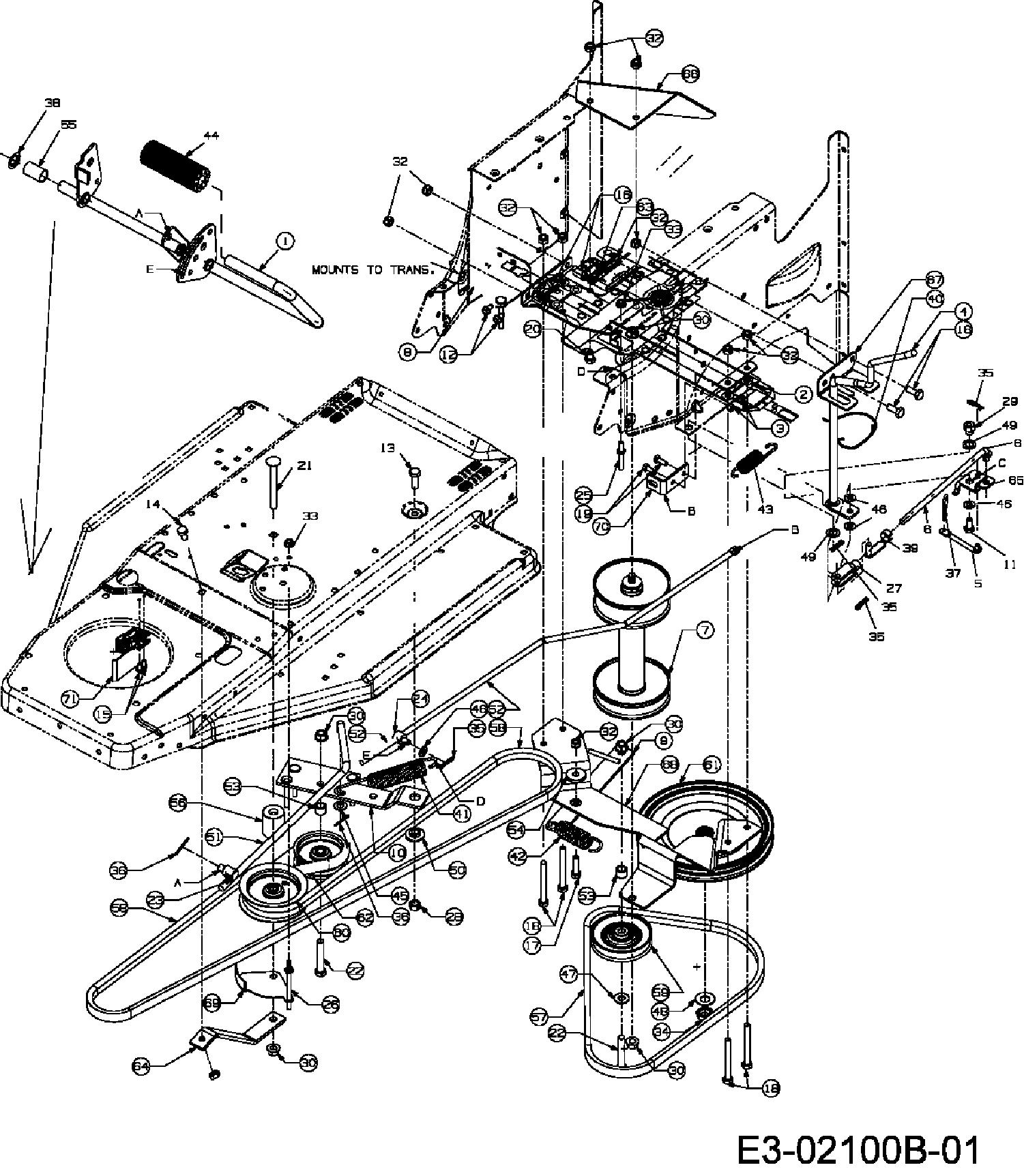

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD009010

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 17644A637 ROD ASM:BRK/CL 17644A £63.32 Add
002 17840-Z BRKT:MTG:TRANSAXLE £18.33 Add
003 618-0556A GEAR £310.72 Add
004 647-0075-Z LVR ASM SHIFT (OBSOLETE) N/A POA
005 647-0076-Z ROD ASM:SHFT £42.64 Add
006 647-0077 ROD ASM:SHFT £29.74 Add
007 656-04029 PUL ASM:VAR SPD £319.35 Add
008 683-0335637 BRKT ASM:BELT GUARD:400:E-DECK 683-0335 N/A POA
009 683-0336637 BRKT ASM:BELT GUARD:400:E-DECK 683-0336 N/A POA
010 683-0429A-Z IDLER ASSEMBLY. £36.14 Add
011 710-0538 HEX L BOLT £3.07 Add
012 710-0599 HEX TT SCREW 1/4-20 £4.16 Add
013 710-1039 HEX BOLT 3/8-24 x 1 INCH Lg £2.78 Add
014 710-1376 CAP SCREW £3.79 Add
015 710-1388 SCREW £2.74 Add
016 710-1681 HEX BOLT M8 X 20 DIN 933 (RED) £2.75 Add
017 710-1683 SCR:M8-1:30.00 LG:DIN 933 £2.64 Add
018 710-1685 SCR:M8-1:75.00 LG:DIN 931 £5.54 Add
019 710-1690 HHCS:M6-1:16.00 £3.89 Add
020 710-1714 Screw 21.1441.67 £3.57 Add
021 710-1813 SCR:CRG:3/8-16:GR5:3.50 £6.93 Add
022 710-3011 HHCS:3/8-16:2.25:GR5:STD £6.93 Add
023 711-0198 PIVOT BUSHING £9.13 Add
024 711-0677 FERRULE:5/16-18 x.312 DIA £16.07 Add
025 711-0993 BELT GUARD PIN Ò1/4 x 1.43 £5.10 Add
026 711-1000 BELT KEEPER £2.89 Add
027 711-1407 LINK £11.71 Add
028 712-0214 HEX NUT £3.00 Add
029 712-0329 NUT-HEX £8.58 Add
030 712-0431 NUT £2.71 Add
031 712-0691 HEX NUT M6 DIN 985 £1.28 Add
032 712-0692 HEX NUT £2.57 Add
033 712-3027 LOCK NUT £2.38 Add
034 712-3035 NUT:JAM:9/16-18:GRADE 5 £3.89 Add
035 714-0104 PIN INTERNAL COTTER £2.36 Add
036 714-0111 COTTER PIN £2.71 Add
037 714-0149B COTTER PIN £2.78 Add
038 726-04028 NUT:PUSH:5/8 DIA. £3.97 Add
039 726-0457 CLIP £7.96 Add
040 732-0525 COMP SPRING CLIP £2.65 Add
041 732-0971 EXTENSION SPRING 6 1/2" LONG £24.91 Add
042 732-1015A SPRING £13.98 Add
043 732-1029 SPR:EXTN:.78 OD X 3.63 LG £19.24 Add
044 735-0239A FOOT PAD £6.34 Add
045 736-0185 FLAT WASHER (RED) £3.04 Add
046 736-0264 WASH:FLAT:.330 x.630x.0635 £2.87 Add
047 736-0300 WASHER £2.39 Add
048 736-0427 BELL:WASH:.567 x 1.125 x .06 £3.57 Add
049 736-3024 WASH:FL:.469 X .750 X .06 £2.46 Add
050 738-0347 SPACER £3.50 Add
051 747-1232 ROD:VARI:CONT £42.22 Add
052 747-1289 ROD-BRAKE £43.44 Add
053 748-0270 SPCR:.440 ID X .625 X .445 £3.40 Add
054 748-0331 SHLD SPACER £3.56 Add
055 750-0800 SPACER £4.82 Add
056 750-1130 SPACER £21.99 Add
057 754-0468 BELT £50.75 Add
058 754-0492 BELT:V-TYPE:5L X 97.1 LG POLY £36.78 Add
059 756-0399 PUL:IDLR:V-TYPE 3.5 DIA £71.19 Add
060 756-0643A PUL IDLER FLAT 3.12 £20.64 Add
061 756-0950 PUL:V-TYP:8.0 x 5/8-36 £52.86 Add
062 756-04224 IDLER PULLEY £23.48 Add
063 783-0823A637 BRKT:AXLE:MT 783-0823A £11.64 Add
064 783-0988637 DRAW BAR 783-0988 N/A POA
065 783-0990 BRKT: SHFT: TRANSMATIC £22.58 Add
066 783-0991637 BRKT: SHLD GRASS 783-0991 N/A POA
067 783-1016B BRKT:ROD:SPEED CONTROL £8.80 Add
068 783-1070A637 BRKT: VAR: PUL 783-1070A N/A POA
069 783-1087637 GUARD:BELT 783-1087 £8.48 Add
070 783-1092A BRKT:BRAKE;ROD HLDR N/A POA
071 783-1113A BRKT:SW:SUPT £8.68 Add
072 720-0232 KNOB:SHFT:1.60 OD X 1.56 £6.60 Add
