MTD008081

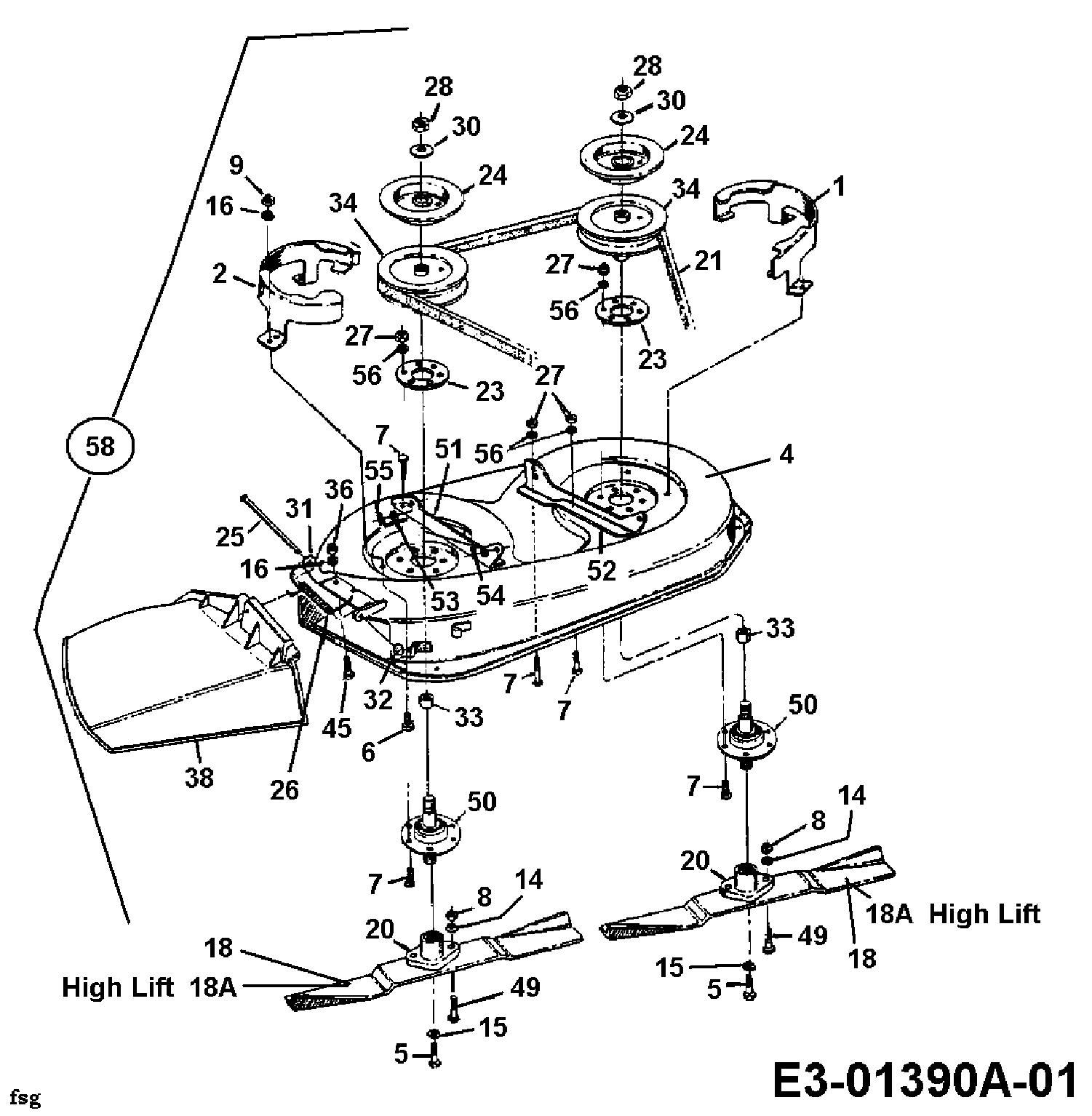

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD008081

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 683-0113637 COVER ASSY:BELT LH 32" 683-0113 £36.82 Add
002 683-0112637 COVER ASSY:BELT RH 32" 683-0112 (OBSOLETE) N/A POA
004 17750A637 DECK ASM:SD:32 W/OUT WHL 'S 17750 (OBSOLETE) N/A POA
005 710-1039 HEX BOLT 3/8-24 x 1 INCH Lg £2.78 Add
006 710-0195 HEX BOLT £2.50 Add
007 710-0157 HHCS:5/16-24:.75:GR5:STD £3.38 Add
008 712-3057 NUT 5/16-24 £2.35 Add
009 712-0138 NUT £2.57 Add
014 736-0119 LOCK WASHER 5/16 £2.81 Add
015 736-0217 H.L. WASHER (RED) £4.12 Add
016 736-0270 BELL WASHER £4.50 Add
018 742-04108A BLADE 16in £20.50 Add
020 748-0300 BLADE ADAPTOR £16.90 Add
021 754-0363 BELT £75.30 Add
023 09164A637 PLATE-REINFORCEMENT £18.68 Add
024 09322 Monobolt 1/4 £10.24 Add
025 711-0792 HINGE PIN £10.31 Add
026 732-0602A SPRING £4.37 Add
027 712-3057 NUT 5/16-24 £2.35 Add
028 712-0318 NUT £3.32 Add
030 736-0158 WASHER:LOCK:5/8:SPLT:REG £3.44 Add
031 703-1693A CONNECTING PLATE 703-1693 £25.95 Add
032 726-0106 CAP SPEED NUT £2.82 Add
033 750-0456 SPACER .790 ID X .347 LG. £6.91 Add
034 756-0486 PULLEY £37.09 Add
036 712-0287 NUT HEX £2.59 Add
038 631-0220B CHUTE ASSY £30.79 Add
045 710-0751 BOLT 069 £2.68 Add
049 710-0888 HEX SCR SPECIAL £4.16 Add
050 753-05405 SPINDLE KIT £58.63 Add
051 783-0276 BRKT:32"DECK RH £17.44 Add
052 783-0275637 DECK BRACKET LH £33.34 Add
053 736-0185 FLAT WASHER (RED) £3.04 Add
054 714-0104 PIN INTERNAL COTTER £2.36 Add
055 714-0507 COTTER PIN 3/32 DIA £2.65 Add
056 736-0242 BELL WASHER £3.14 Add
057 732-0564 SPRING, GOVERNOR £18.40 Add
058 813-040070-S 32"D.DECK ASSY GERMANY GROUP 813-03121 (OBSOLETE) N/A POA
18A 742-0506A BLADE 16.28IN HIGH LIFT £22.02 Add
