MTD007357

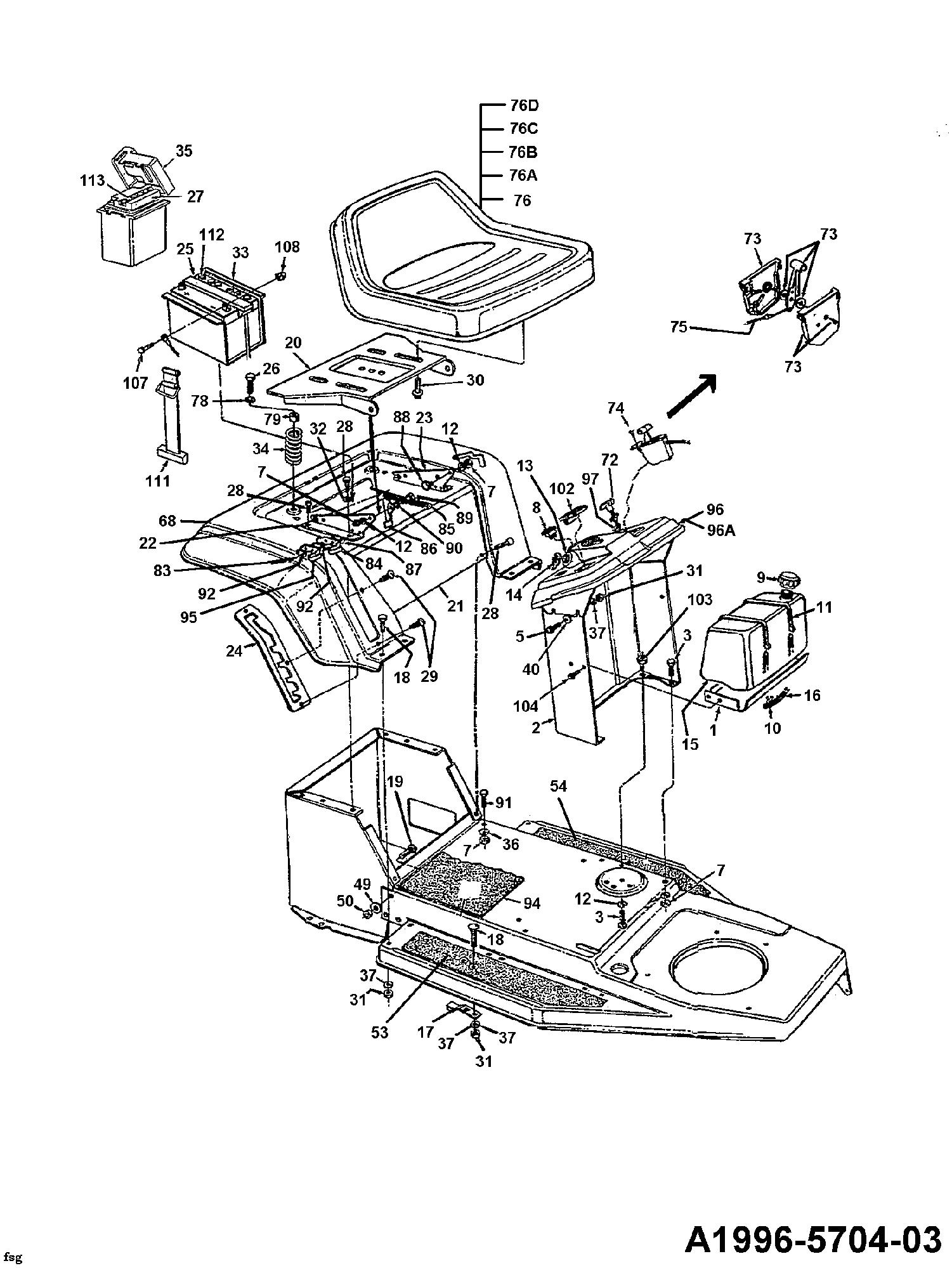

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD007357

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 17932 BRKT:SUPT:GAS TANK STYLE 1 £19.12 Add
002 17933A637 PANEL-DASH 17933A £67.61 Add
003 710-3008 HEX BOLT £2.57 Add
005 710-0751 BOLT 069 £2.68 Add
007 712-3010 NUT 5/16 x 18 £2.35 Add
008 725-0634 SW:ROCKER £18.79 Add
009 751-0603A CAP:FUEL £7.12 Add
010 726-0205 HOSE CLAMP 1/2 INCH DIA. £2.90 Add
011 726-0209 TIE:CBL:30.66 LG (OBSOLETE) N/A POA
012 736-0119 LOCK WASHER 5/16 £2.81 Add
013 725-0267B IGNITION SWITCH £20.89 Add
014 725-0201 IGNITION KEY £5.44 Add
015 751-0553 FUEL TANK £48.70 Add
016 751-0535-MET FUEL LINE HOSE BLACK £9.79 Add
017 761-0194A BLADE BRAKE ASSY £16.20 Add
018 710-0134 BOLT £2.57 Add
019 710-0793 SCREW-RIBBED NECK N/A POA
020 783-0039 SEAT PIVOT BRACKET £47.12 Add
021 783-0354 FENDER:HARDTOP ´96,400 N/A POA
022 17704 BRKT:SEAT:HINGE:SUPPORT R.H. £21.21 Add
023 17703A BRKT:SEAT:HGE:SUPT LH £17.37 Add
024 17553 BRKT:INDX:LIFT:DK:6POS-PAI £18.91 Add
025 5032-u3-0002 BATTERY (No Returns on this item) £61.73 Add
026 710-0817 SCR:TT:5/16-18:1.250:HXINDWSH £4.48 Add
027 EPB3117 BATTERY 12N14-3A (DRY) £39.80 Add
028 710-0726 HEX SCREW AB 5/16-12:0.750 £3.01 Add
029 710-1017 TAP SCREW £2.52 Add
030 710-0870 HHWSH:3/8-16:.625:GR5:STD £11.71 Add
031 712-0287 NUT HEX £2.59 Add
033 783-0349637 BATTERY TRAY £20.57 Add
034 732-0588 SPRG:COMP 1.35 OD X 3,6 £11.00 Add
035 731-0871B BATTERY BOX W/COVER £49.90 Add
036 736-0242 BELL WASHER £3.14 Add
037 736-0329 L. WASHER £1.28 Add
040 736-0270 BELL WASHER £4.50 Add
049 736-0217 H.L. WASHER (RED) £4.12 Add
050 712-0241 HEX NUT 3/8-24 £2.38 Add
053 725-0308B TRITTBRETTAUFFAGE RECHTS N/A POA
054 725-0309C FOOD PAD-L.H. N/A POA
068 731-051181 EDGE GUARD 731-0511 £31.36 Add
072 746-0616A CHOKE CONTROL CABLE ASSY £10.63 Add
073 931-0823A THROTTLE CONTROL BOX ASSY £18.86 Add
074 710-0779A SELF TAP SCREW £3.02 Add
075 746-0638 CABLE-THROTTLE £9.32 Add
076 757-04107 SEAT £156.05 Add
078 736-0159 WASH .349 ID X .879 OD X .063 £3.89 Add
079 722-0160 ELASTEMER BUSHING .930 OD X .5 £2.64 Add
083 710-0227 SCR:AB:#8-18:0.500:HXINDWH £2.66 Add
084 725-1439 SW:INNER SEAT SPRG £8.06 Add
085 732-0581B SPRG:EXTN:.75 OD X 5.31 £5.83 Add
086 17239C BRKT:LIFT:SEAT N/A POA
087 726-0278 INSULATING PLATE £2.53 Add
088 738-0155 BOLT:SHLDR:.435 x.160:5/16-18 £6.60 Add
089 738-3024 SHLD SCR (OBSOLETE) (OBSOLETE) (OBSOLETE) (OBSOLETE) N/A POA
090 736-0141 WASH:SPR:.440 x.750 x.015 £2.95 Add
091 710-0604A SCREW £3.50 Add
092 726-0279 INSULATING PLATE £2.53 Add
094 735-0254 CENTER FOOT PAD 723-0423 £33.57 Add
095 725-1303 SW:OUTER SEAT SPRG £3.27 Add
096 731-1228 DASH PANEL (OBSOLETE) N/A POA
097 17782 CHOKE CABLE RETAINER CLIP £716.53 Add
102 725-0925 AMMETER 620 £21.94 Add
103 712-3007 HEX JAM NUT £2.59 Add
104 710-0599 HEX TT SCREW 1/4-20 £4.16 Add
107 710-3015 SCREW HEX CAP £2.82 Add
108 712-0271 NUT:SEMS:1/4-20 £2.68 Add
111 723-0444 BATTERY STRAP £20.75 Add
112 725-0689 CAP-BATTERY 725-0117 N/A POA
113 725-0690 CAP-BATTERY-725-0514 £2.91 Add
76A 757-04107 SEAT £156.05 Add
76B 757-0348A SEAT-MED BACK BLACK 757-0348 £239.00 Add
76C 757-0364 SEAT:RAD YELLOW V380 £151.34 Add
76D 757-0365 SEAT:RAD YELLOW V460 £161.22 Add
96A 731-1502 Instrument panel £37.15 Add
