MTD007356

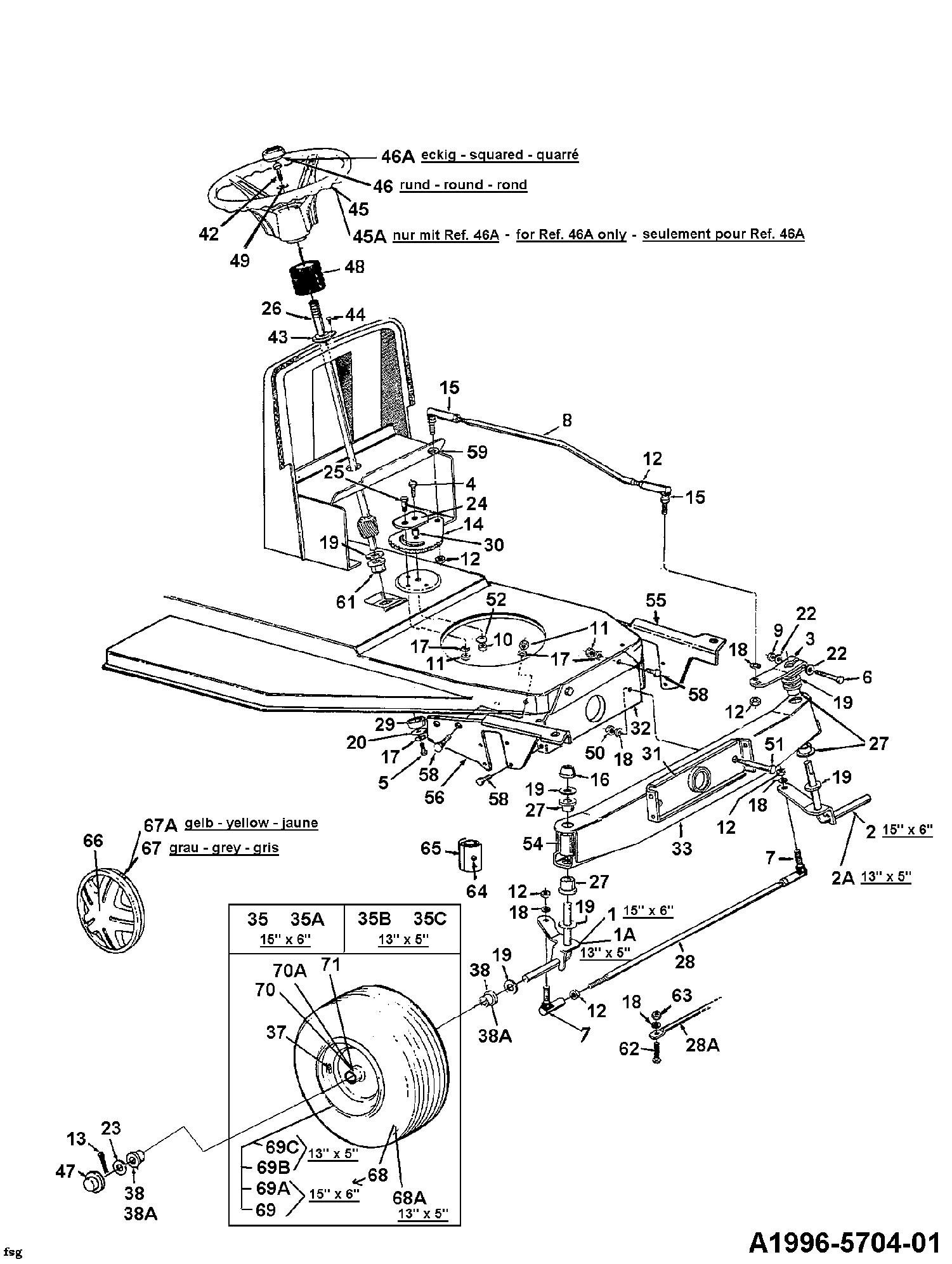

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD007356

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 17584A637 FRONT AXLE RH 3.32 x 4.07 £401.60 Add
002 17585A637 FRONT AXLE ASSY. L.H 3.64X5.34 £388.83 Add
003 683-0055637 STEERING ARM £38.86 Add
004 710-1039 HEX BOLT 3/8-24 x 1 INCH Lg £2.78 Add
005 710-0538 HEX L BOLT £3.07 Add
006 710-0772 HEX BOLT £9.73 Add
007 723-3018 BALL JOINT £20.04 Add
008 711-0838 Regulator rod (BING) £35.83 Add
009 712-0237 HEX CENTRE NUT £7.19 Add
010 712-0241 HEX NUT 3/8-24 £2.38 Add
011 712-3010 NUT 5/16 x 18 £2.35 Add
012 712-0262 NUT:JAMLK:3/8-24:GR2 £10.85 Add
013 714-0470 COTTER PIN £2.50 Add
014 717-0622C GEAR SEGMENT £29.86 Add
015 723-3018 BALL JOINT £20.04 Add
016 726-0214 PUSH CAP £4.51 Add
017 736-0119 LOCK WASHER 5/16 £2.81 Add
018 736-0169 L. WASHER £2.45 Add
019 736-0187 FLAT WASHER £2.70 Add
01A 683-0040A AXLE ASSY R.H (OBSOLETE) N/A POA
020 736-0343 WASHER-5/16 x 1.25 £3.84 Add
022 736-0271 WASHER £2.68 Add
023 736-0285 FLAT WASHER £3.43 Add
024 783-04644 BRACKET £13.54 Add
025 738-0141 SHLD SCREW £7.26 Add
026 738-0937 STEERING SHAFT £53.87 Add
027 741-0659 FLANGE BEARING £3.91 Add
028 747-0753 TIE ROD 3/8-24 X 20.0 LG £53.87 Add
029 750-0532 SPACER £4.08 Add
02A 683-0041A637 AXLE BLACK £46.88 Add
030 750-0535 SPACER £8.45 Add
031 17548637 PIVOT BAR SUPP BRACKET FRONT £29.18 Add
032 17547637 PIVOT BAR SUPPORT BRKT-REA 17547 (OBSOLETE) N/A POA
033 683-0128B637 PIVOT BAR ASSY £54.59 Add
035 634-0097B662 OYSTER GRAY 788-0662 £144.00 Add
037 734-0255 VALVE - TUBELESS AIR £5.89 Add
038 741-0487C FLANGE BEARING £4.81 Add
042 710-0643 BOLT £3.25 Add
043 741-0501 STEERING COLUMN BRG (OBSOLETE) (OBSOLETE) N/A POA
044 710-0837 OVAL SUNK SCREW £2.96 Add
045 731-1693 WHL:STRG:5/8 SPLINE 12.0 DIA £65.48 Add
046 731-0220 STEERING WHEEL CAP £7.40 Add
047 731-0484A HUB CAP £4.36 Add
048 731-0954 BELLOW STEERING COLUMN £19.66 Add
049 736-0242 BELL WASHER £3.14 Add
050 712-0431 NUT £2.71 Add
051 738-0527 SCR:SHLDR:.498 DIA X 2.045 £6.91 Add
052 736-0356 BELL WASHER £3.34 Add
054 731-1649 CAPAXLE CAP £2.68 Add
055 783-0255B637 PLT:SD:PIVOT BAR-L.H. 783-0255B £22.62 Add
056 783-0256B637 PLT:SD:PIVOT BAR-R.H. 783-0256B £20.84 Add
058 710-0604A SCREW £3.50 Add
059 736-0217 H.L. WASHER (RED) £4.12 Add
061 741-0225 HEX FLANGE BEARING £4.14 Add
062 710-0459A TIE ROD BOLT £3.07 Add
063 712-0711 NUT £2.59 Add
064 737-0280 FITTING-GREASE £4.72 Add
065 731-1291A ENDCAP AXLE £7.64 Add
066 727-0425A SPRING CLIP £2.49 Add
067 734-1613 HUBCAP 6" DIA OYSTER GRAY £19.18 Add
068 734-1731 TYRE 15x6.00-6 NHS £103.78 Add
069 634-0172A662 RIM ASM:6.0 X 4.5 x .81 ID 634-0024 N/A POA
070 737-0211A FITTING-GREASE 737-0211 £4.22 Add
071 737-0212A PLUG-GREASE FITTING 737-0212 £3.73 Add
28A 747-0861637 ROD:TIE:NON-ADJ 21.72 LG 747-0861 £16.82 Add
35A 634-0091 WHEEL ASSY - COMPL. £241.44 Add
35B 634-0097A662 WHL:COMPL.: 13 X 5 X 6:PLAS 634-0097 N/A POA
35C 634-0099 WHL:COMP:13X5X6:BB £146.10 Add
38A 741-0569 BALL BEARING £15.78 Add
45A 731-1687 WHL:STR:MTD PL:.625 SPLINE N/A POA
46A 731-1459A CAP-STEERING WHL SQ 731-1459 £7.07 Add
67A 734-1787A RADKAPPE GELB 731-1787A £17.63 Add
68A 734-0298 TIRE 13 X 5.00-6 £105.54 Add
69A 634-0090 WHEEL RIM £66.97 Add
69B 634-0097B662 OYSTER GRAY 788-0662 £144.00 Add
69C 634-0098A ASM:RIM:BB:6X3.87-DRILLED £98.45 Add
70A 737-0280 FITTING-GREASE £4.72 Add
