MTD010790

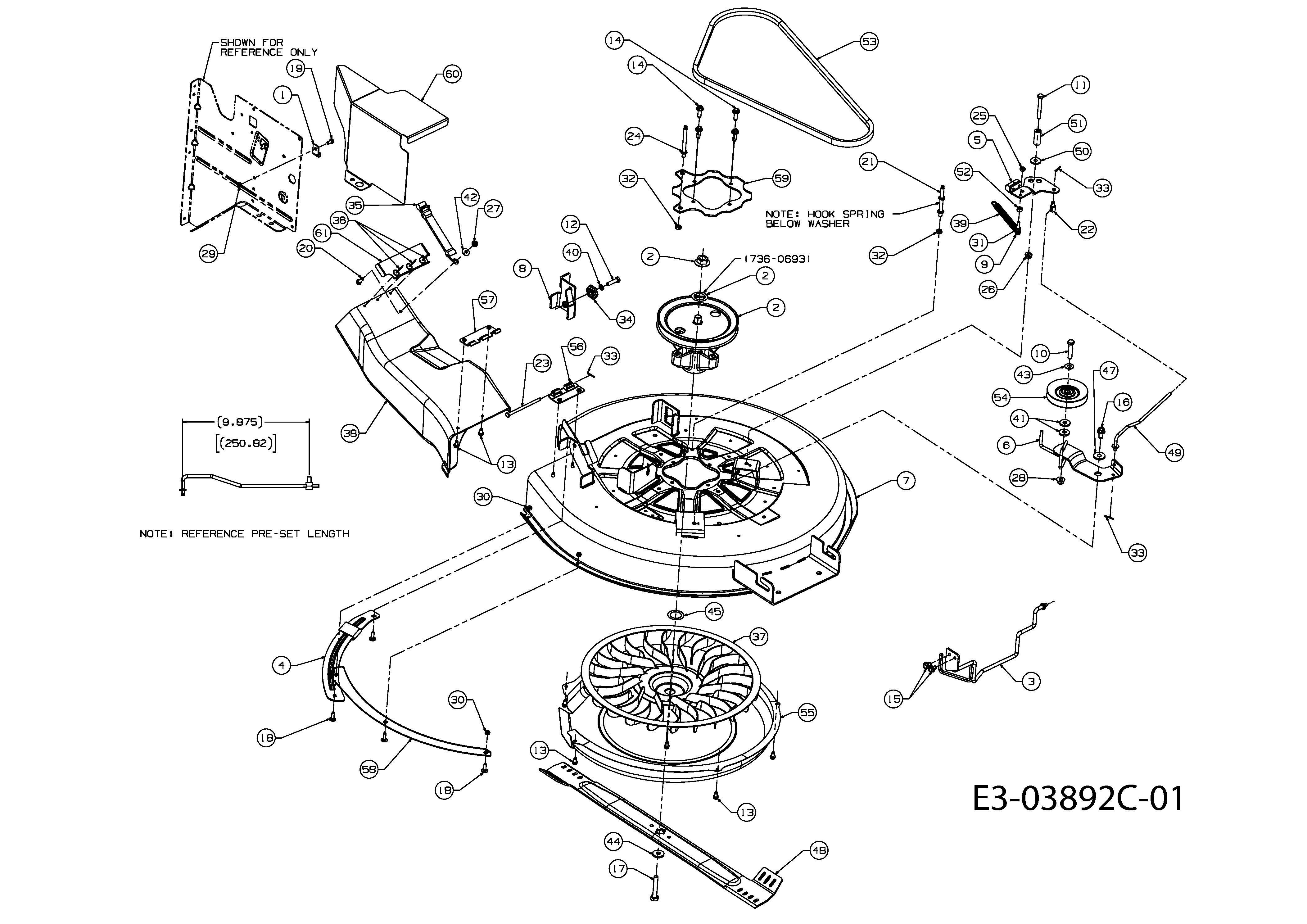

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD010790

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 16606-Z BRKT:HOOK:RETAINER 16606 £4.94 Add
002 918-0139B SPINDLE ASSY £164.89 Add
003 647-04148A-Z ROD ASM:FR:30IN 647-04148A £25.13 Add
004 683-0215A BRKT ASM:DIS:CHUT N/A POA
005 683-04409 BRAKE ASM:DECK:30IN N/A POA
006 683-04446B BRKT ASM:IDLER:V-PUL N/A POA
007 683-04459-WR DECK PAN WOLF RED £259.04 Add
008 683-04460 BRKT ASM:DECK N/A POA
009 710-0106 HHCS:1/4-20:1.25:GR5:SPEC £3.93 Add
010 710-0347 HEX SCR £3.14 Add
011 710-0378 HHCS:5/16-18:2.50:GR5:STD £4.22 Add
012 710-0528 SCREW (DNR) £3.00 Add
013 710-0599 HEX TT SCREW 1/4-20 £4.16 Add
014 710-0602 SCREW:TT:5/16-18:1.00:HXINDWSH £5.54 Add
015 710-0607 SELF TAP SCREW £3.97 Add
016 710-0623 SCR:TT:3/8-16:.750 HXINDWSH £5.77 Add
017 710-1382 SCREW £2.96 Add
018 710-1687 BOLT £2.76 Add
019 710-1691 HEX. SCREW:M6X12 DIN 933 8.8 £4.60 Add
020 710-3015 SCREW HEX CAP £2.82 Add
021 711-05322 PIN:BELT GUARD:.31x3.06 LG £17.57 Add
022 711-0736 FERRULE-ADJ:1/4-20 x 1.00 £18.73 Add
023 711-1054 PIN £5.95 Add
024 711-1065 PIN:BELT GUARD:.31 x 3.06 LG £7.92 Add
025 712-0291 LOCK-NUT £2.35 Add
026 712-04063 FLANGED NUT £3.54 Add
027 712-04064 NUT FLGLK 1/4 20 GRF NYLON £5.56 Add
028 712-04065 NUT £3.39 Add
029 712-0633 NUT:HEXLK:M6-1 DIN 980 £4.03 Add
030 712-0691 HEX NUT M6 DIN 985 £1.28 Add
031 712-3006 NUT £2.35 Add
032 712-3046 Nut, Hex Jam 5/16-18 Thd. £2.92 Add
033 714-0507 COTTER PIN 3/32 DIA £2.65 Add
034 717-04074 GEAR DECK ADJUSTMENT £9.30 Add
035 723-0383 STRAP ASSY-RETAINER £8.32 Add
036 728-0287 RIVET:ALU:BLACK:ELOX:4.8X10.0 £3.08 Add
037 731-1583 DECK FAN £82.97 Add
038 731-1605F CHUT:RR:DIS £101.16 Add
039 732-0604A SPR:EXT: .56 DIA x 5.52 LG £14.74 Add
040 736-0119 LOCK WASHER 5/16 £2.81 Add
041 736-0258 WASHER:FLAT:.385 X 1.0 X.135 £2.92 Add
042 736-0270 BELL WASHER £4.50 Add
043 736-0300 WASHER £2.39 Add
044 736-0684 WASH:BELL:10.5 DIN 6340 £2.42 Add
045 736-0693 SHIM WASHER £4.08 Add
047 738-0347 SPACER £3.50 Add
048 742-04058 BLADE 30 INCHES £53.74 Add
049 747-04912 ROD:LINK:BRAKE £29.30 Add
050 748-0234 SHOULDER SPACER £4.57 Add
051 750-04993 SPCR:.322 x.625 x 1.5" £5.53 Add
052 750-05381 SPCR:.254 ID x.500 OD x.275 £5.47 Add
053 754-04190 DECK BELT £47.66 Add
054 756-0487 PULLEY £31.04 Add
055 783-0289637 SHROUD FAN 30 INCH DECK BLACK £73.14 Add
056 783-0291ZW TOP HINGE (BLUE) £10.39 Add
057 783-0292 BRKT:DECK CHUTE PIVOT £6.31 Add
058 783-0301637 SKIRT-DECK 30 INCH RD £36.65 Add
059 753-0571637 PLT:REINF:30" RD DECK (OBSOLETE) (OBSOLETE) N/A POA
060 783-05993B-S CVR:TRANS:REAR:A/C DECK £40.64 Add
061 783-06154A BRKT:EXT:CHUTE N/A POA
