MTD016528

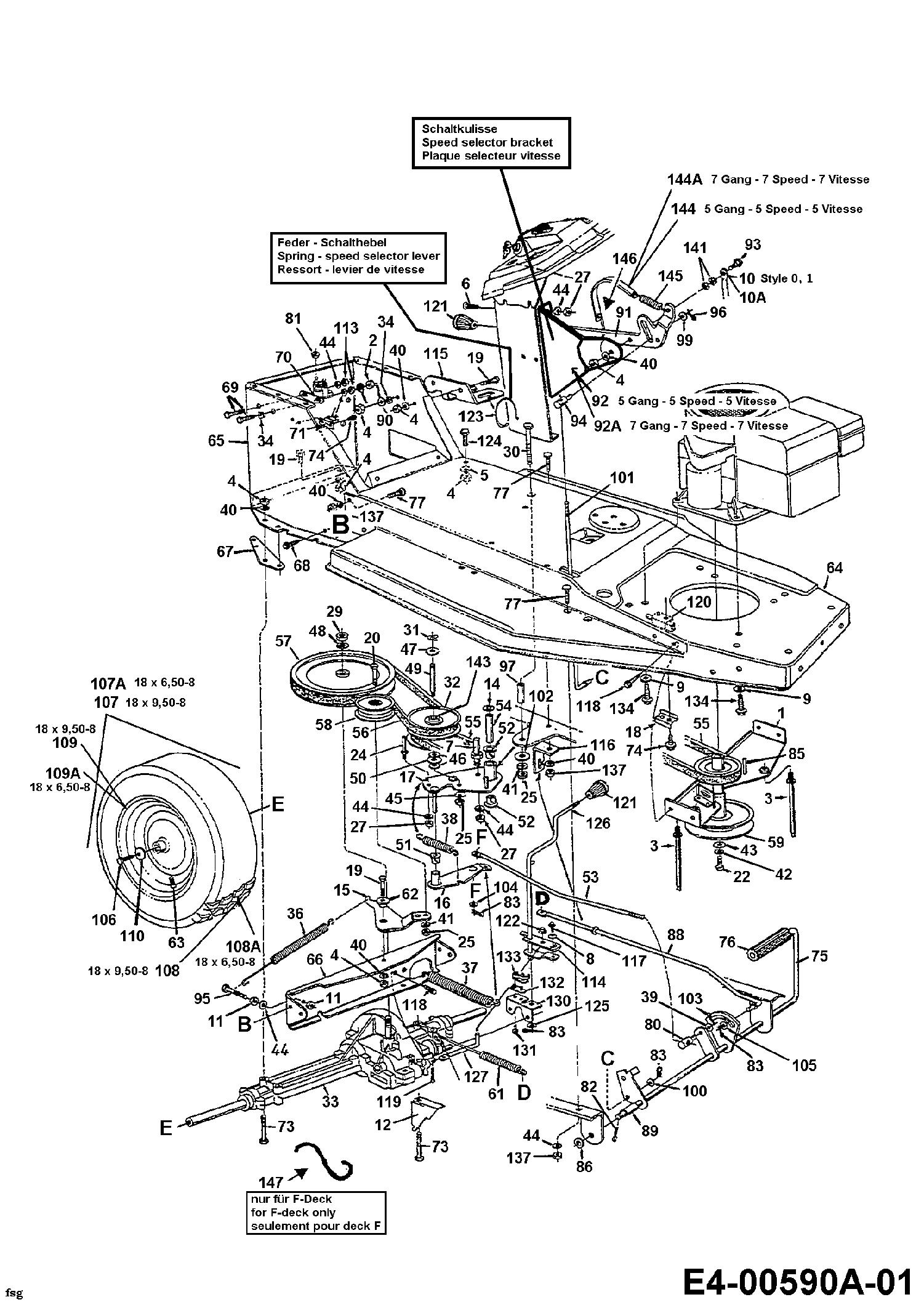

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD016528

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 783-0265A637 GUARD ASSY-BELT £50.81 Add
002 712-0291 LOCK-NUT £2.35 Add
003 711-1239 PIN £4.21 Add
004 712-3010 NUT £2.35 Add
005 736-0242 BELL WASHER £3.14 Add
006 710-0286 SCREW £3.57 Add
007 711-1000 BELT KEEPER £2.89 Add
008 736-0270 BELL WASHER £3.30 Add
009 736-3072 WASH:FLAT:.38 x.93 x.110:HT £3.51 Add
010 749-0836A BRACE:SECT:SPD 1 STL N/A POA
011 712-0138 NUT £2.57 Add
012 783-1325637 HALTEWINKEL R CKZUGFEDER DECK £11.93 Add
013 710-0176 HHCS:5/16-18:2.75:GR5:STD £7.37 Add
014 736-0235 WASHER:FLAT:.406 x 1.260x .170 £7.23 Add
015 17694A BRKT:IDLR:TRANSAXLE INPUT 17694-Z £15.21 Add
016 16554A-Z BRKT:VAR.SPD.TORQ ASSY-PAI 16554A £26.58 Add
017 16676B BRKT:ASM VARIABLE SPEED £39.23 Add
018 17962 PLT:SW £4.62 Add
019 710-3008 HEX BOLT £2.57 Add
020 710-0151 HHCS:3/8-24:2.00:GR5:SPEC £4.54 Add
022 710-0757 HEX SCREW £6.67 Add
024 711-1000 BELT KEEPER £2.89 Add
025 712-0241 HEX NUT 3/8-24 £2.38 Add
027 712-0287 NUT HEX £2.59 Add
029 712-3035 NUT:JAM:9/16-18:GRADE 5 £3.89 Add
030 710-0902 SCREW HHCS:3/8-24:3.75:GR5:STD £6.32 Add
031 716-0114 RING:RET:.56 DIA SHAFT £3.17 Add
032 717-0800A PUL:DR:VARI SPD 5.06 DIA £208.54 Add
033 618-0166D TRANSAXLE £481.02 Add
034 736-0607 WASH:LOCK:5/16 EXT TOOTH £2.61 Add
036 732-0384 EXT SPRING £13.19 Add
037 732-0459 SPRING 6.7 £11.14 Add
038 732-0568 SPRING EXTENSION £4.58 Add
039 736-0117 WASH:FLAT:.385 x.620 x.033 £2.79 Add
040 736-0119 LOCK WASHER 5/16 £2.81 Add
041 736-0169 L. WASHER £2.45 Add
042 736-0171 WASHER £2.50 Add
043 736-0322 FI-WASH £7.28 Add
044 736-0329 L. WASHER £1.28 Add
045 736-0331 BELL WASHER £3.34 Add
046 736-0355 WASHER £2.52 Add
047 736-0414 WASHER £4.21 Add
048 736-0427 BELL:WASH:.567 x 1.125 x .06 £3.57 Add
049 738-0569 SHAFT V. PULLEY £32.82 Add
050 741-0405 THRUST BEARING £11.56 Add
051 741-0419 FLANGE BEARING £11.41 Add
052 741-0495 FLANGED BRG. £6.89 Add
053 747-0599B BAR £38.25 Add
054 750-0703 SPACER .375 ID X .625 OD X 1.5 £4.08 Add
055 754-0280A BELT £59.11 Add
056 754-0281 BELT TRANS 620 £44.77 Add
057 656-0003 PUL:V TYP:8.0X5/8-36 HUB £61.32 Add
058 756-0643A PUL IDLER FLAT 3.12 £20.64 Add
059 756-0551 ENGINE PULLEY £87.61 Add
061 732-0413 EXT SPRING £9.05 Add
062 748-0234 SHOULDER SPACER £4.57 Add
063 734-0255 VALVE - TUBELESS AIR £5.89 Add
064 17588G637 FRM:LWR:400 SERIES £185.85 Add
065 783-04796637 FRAME:REAR:400'96 783-0180B637 £116.48 Add
066 16654A637 TRANSMISSION SUPPORT (OBSOLETE) (OBSOLETE) N/A POA
067 16659637 PLATE-REINFORCEMENT £8.77 Add
068 710-0726 HEX SCREW AB 5/16-12:0.750 £3.01 Add
069 710-0751 BOLT 069 £2.68 Add
070 725-1426A SOLENOID £20.27 Add
071 753-0685 KIT CIRCUIT BREAKER £33.13 Add
073 710-0176 HHCS:5/16-18:2.75:GR5:STD £7.37 Add
074 710-1388 SCREW £2.74 Add
075 17644A637 ROD ASM:BRK/CL 17644A £63.32 Add
076 735-0239 FOOT PAD £6.34 Add
077 710-1012 BOLT:RIBBED:HD 5/16-24 x.87"LG £3.89 Add
080 711-0198 PIVOT BUSHING £9.13 Add
081 712-0271 NUT:SEMS:1/4-20 £2.68 Add
082 714-0470 COTTER PIN £2.50 Add
083 714-0507 COTTER PIN 3/32 DIA £2.65 Add
085 714-0114 SQUARE KEY £4.42 Add
086 736-0256 WASHER:FL:.635 IDX.930 ODX.03 £3.60 Add
088 747-0593 ROD:BRAKE £30.05 Add
089 750-0800 SPACER £4.82 Add
090 725-0976A ELEC.WIRE 8GAX7.25 BLACK £10.86 Add
091 17457B SPD SELECTOR LEVER'93-ZINC (OBSOLETE) N/A POA
092 16693B BRKT:SEL:5 SPD N/A POA
093 738-0138A SCR HEX CAP £7.88 Add
094 711-0677 FERRULE:5/16-18 x.312 DIA £16.07 Add
095 710-0428 SCREW HHCS:1/4-28:1.25:GR5:STD (OBSOLETE) N/A POA
096 714-0104 PIN INTERNAL COTTER £2.36 Add
097 750-0703 SPACER .375 ID X .625 OD X 1.5 £4.08 Add
099 736-0264 WASH:FLAT:.330 x.630x.0635 £2.87 Add
100 736-0463 WASH:FLAT: .250 x .630 x .052 N/A POA
101 747-0675A BOLT-BELT COVER £11.78 Add
102 736-0133 WASH:FLAT:.411 X 1.25 X .100 £3.51 Add
103 714-0115 COTTER PIN £2.89 Add
104 736-0275 WASH:FLAT:.344 x .688 x.065 £2.66 Add
105 736-0278 WASH:FLAT:.330x.687x.030:HT £3.57 Add
106 710-0627 HEX SCREW £2.81 Add
107 734-0817662 WHL COMP:18x9.5 734-0817 £161.21 Add
107A 734-0592-G WHL:COMP:18 x 6.5 7 £150.02 Add
108 734-0448 TIRE:18 X 9.5 £95.46 Add
108A 734-0294 TIRE:18 X 6.5 X 8 SQ SH £99.37 Add
109 634-04369662 RIM ASM:COLOUR CUB BEIGE 634-0070 N/A POA
109A 634-04174662 RIM ASM-8.0X5.38 w/VALVE £76.58 Add
10A 749-0820 BRACE-SPEED SELECTOR £11.82 Add
110 736-0242 BELL WASHER £3.14 Add
113 712-0298 NUT:JAM:1/4-20:GR2 £3.07 Add
114 17178A LINK:SHIFT LEVER ADJUSTING £4.18 Add
115 783-1016B BRKT:ROD:SPEED CONTROL £8.80 Add
116 17597637 BRAKE ROD GUIDE BRKT 17597 N/A POA
117 710-0289 HHCS:1/4-20:.50:GR2:STD £19.48 Add
118 710-0599 HEX TT SCREW 1/4-20 £4.16 Add
119 714-0149B COTTER PIN £2.78 Add
120 725-1657A SAFETY SWITCH £11.83 Add
121 720-0232 KNOB:SHFT:1.60 OD X 1.56 £6.60 Add
122 726-0231 CUP-RETAINER £2.61 Add
123 732-0525 COMP SPRING CLIP £2.65 Add
124 710-0650 SCREW £2.78 Add
125 736-0226 WASHER:FLAT:.474 x.879 x.064 £2.91 Add
126 747-0694AP3Z ROD ASM:SHFT 747-0694A (OBSOLETE) N/A POA
127 747-0685 CLUTCH LINK £9.96 Add
130 17179 BRACKET-MTG (OBSOLETE) N/A POA
131 710-0227 SCR:AB:#8-18:0.500:HXINDWH £2.66 Add
132 726-0222 PLATE-INSULATOR NUT £2.64 Add
133 753-0580 USE 753-0580 725-0758 £9.29 Add
134 710-0502A SCR:TTSEMS:3/8-16:1.250:HXLWSH £3.54 Add
137 712-3057 NUT 5/16-24 £2.35 Add
141 736-0141 WASH:SPR:.440 x.750 x.015 £2.95 Add
143 741-0404 BRG:NDL:.5625 IDx.7500x.5550 £29.33 Add
144 683-0331 7 SPEED INDICATOR STRIP £16.37 Add
144A 683-0239 INDICATOR STRIP 5 SPEED (OBSOLETE) (OBSOLETE) (OBSOLETE) (OBSOLETE) (OBSOLETE) (OBSOLETE) (OBSOLETE) N/A POA
145 732-0691 EXT SPRING 2.04 INCH LONG £4.66 Add
146 747-0816 HOOK SPEED INDICATOR £2.89 Add
147 732-0722A SPRING:BRAKE RETURN ANCHOR £2.64 Add
148 736-0702 WASH:FLAT:10.5IDX30OD:DIN 9021 £2.42 Add
92A 783-0993-Z BRKT:SEL:7 SPEED 783-0993 N/A POA
