MTD009069

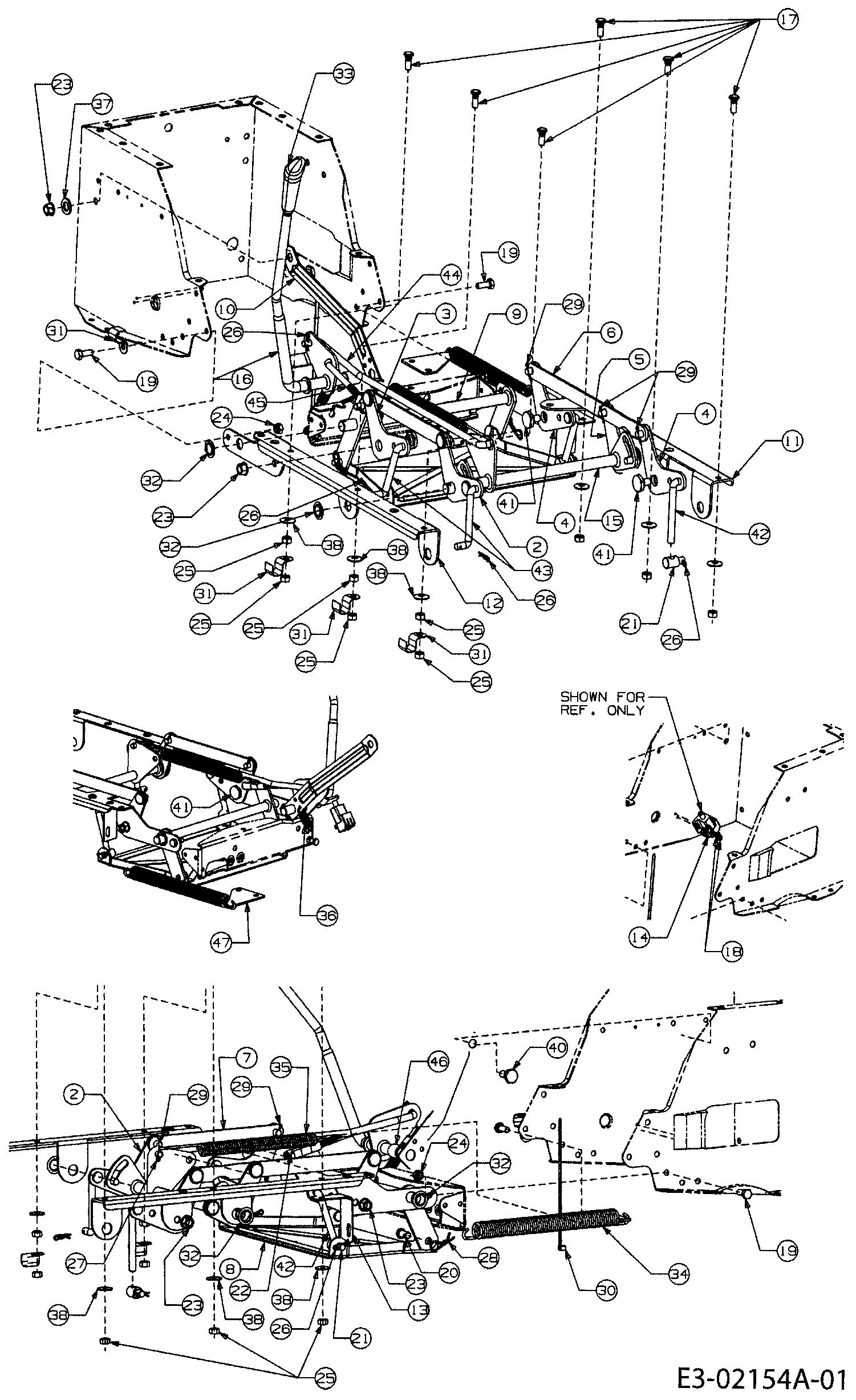

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	16682P637	SLEEVE ASSY-PIVOT 16682	£25.42	Add
002	17554	ASM:DK LFT PVT BRKT R.FR-P	£370.89	Add
003	17555637	BRKT ASM:PIVOT:DECK LIFT RH RR 17555	£35.00	Add
004	17556637	BRKT ASM:PIVOT:DECK LIFT LH 17556	£25.66	Add
005	17557637	BRKT ASM:PIVOT:DECK LIFT SHORT 17557	£21.63	Add
006	17562637	CONNECTING LINK LH 17562	£12.45	Add
007	17563	CONNECTING LINK RH	£53.52	Add
008	17573A637	NO LONGER AVAILABLE	N/A	POA
009	17574637	SHAFT 17574	£65.10	Add
010	17580637	STRAP:LIFT HANDLE SUPPORT 17580	£16.58	Add
011	17581-0637	NO LONGER AVAILABLE	N/A	POA
012	17582637	BRKT:SUPPORT PIVOT R.H 17582	£46.42	Add
013	17597637	NO LONGER AVAILABLE	N/A	POA
014	17962	PLT:SW	£4.66	Add
015	683-0232637	SHF ASM:CROSS 683-0232	£41.38	Add
016	683-0584-Z	LEVER	£35.35	Add
017	710-1012	BOLT:RIBBED:HD 5/16-24 x.87"LG	£3.39	Add
018	710-1388	SCREW	£3.23	Add
019	710-1681	HEX BOLT M8 X 20 DIN 933 (RED)	£3.24	Add
020	711-1421	CLEVIS PIN	£12.63	Add
021	711-3397	FERRULE ADJUSTMENT	£12.78	Add
022	712-04065	NUT	£4.02	Add
023	712-0431	NUT	£3.20	Add
024	712-0692	HEX NUT	£3.10	Add
025	712-3057	NUT 5/16-24	£3.00	Add
026	714-0104	PIN INTERNAL COTTER	£2.78	Add
027	714-0115	COTTER PIN	£3.42	Add
028	714-0145	R CLIP	£2.78	Add
029	714-0507	COTTER PIN 3/32 DIA	£3.13	Add
030	725-0157	NO LONGER AVAILABLE	N/A	POA
031	726-0354	CLAMP 16mm	£5.91	Add
032	726-04028	NUT:PUSH:5/8 DIA.	£4.59	Add
033	731-2509	GRIP (OBSOLETE) (OBSOLETE)	N/A
034	732-0603	EXTENSION SPRING	£25.20	Add
035	732-0638	EXTENSION SPRING	£15.71	Add
036	732-0640	EXTENSION SPRING	£4.92	Add
037	736-0192	WASH:FL:.535 X .93 X .090	£3.59	Add
038	736-0242	BELL WASHER	£3.72	Add
040	738-0143	SHOULDER BOLT	£12.24	Add
041	738-0281	SCR:SHLDR:.625 x.17:3/8-16	£8.44	Add
042	747-04189	LINK:HNGR:DECK	£14.56	Add
043	747-04229	NO LONGER AVAILABLE	N/A	POA
044	747-0745	ROD:DECK LIFT	£19.38	Add
045	747-0746	ROD:DECK ENGAGE	£10.42	Add
046	750-0379	SPACER .657 ID X .87 OD X .85	£5.33	Add
047	783-0138	BRKT:RET:TRANS SPR	£15.75	Add
