MTD007907

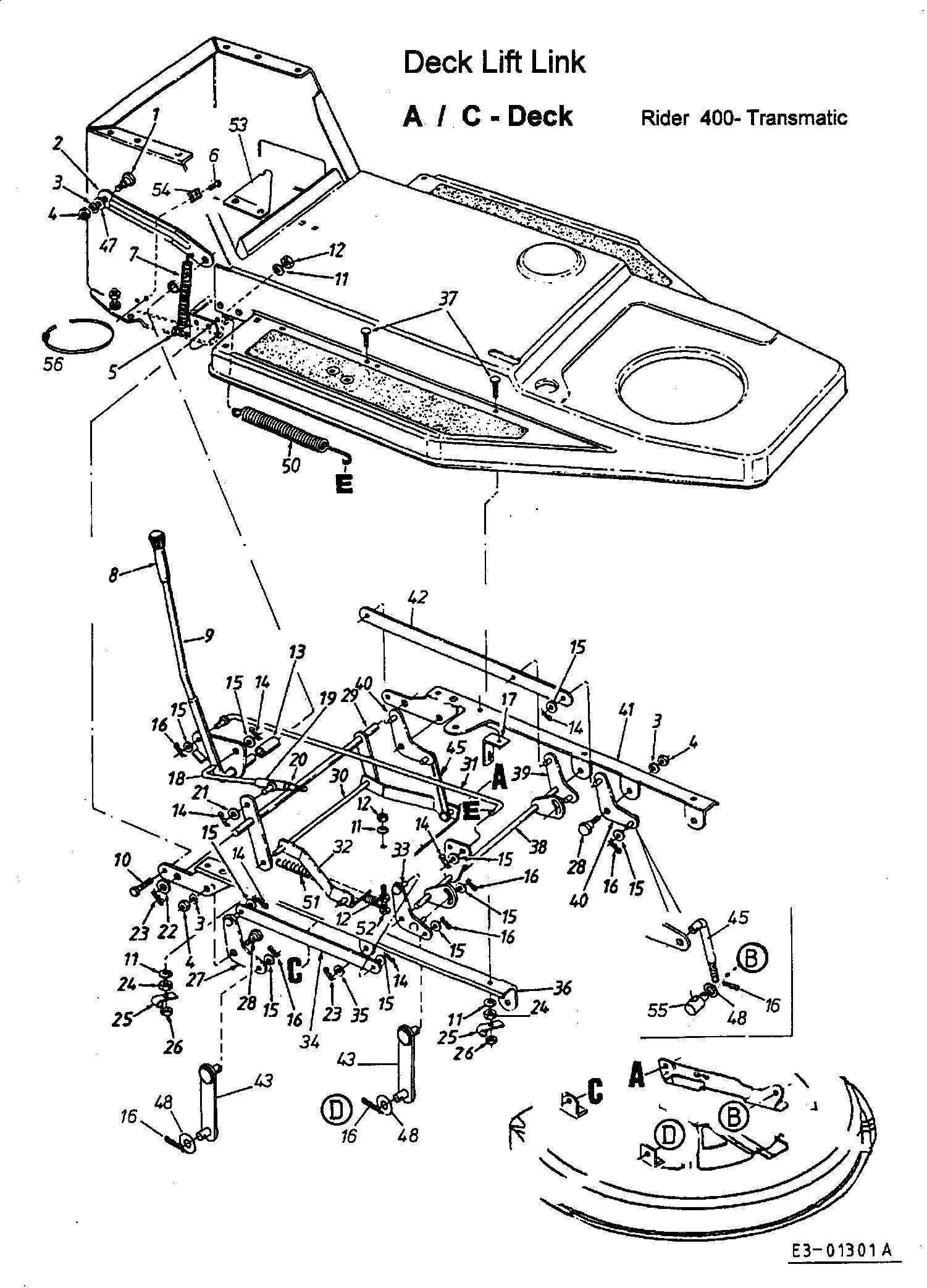

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD007907

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 738-0143 SHOULDER BOLT £11.95 Add
002 17580637 STRAP:LIFT HANDLE SUPPORT 17580 £14.68 Add
003 736-0169 L. WASHER £2.45 Add
004 712-0798 HEX. NUT £5.75 Add
005 710-0428 SCREW HHCS:1/4-28:1.25:GR5:STD (OBSOLETE) N/A POA
006 710-1388 SCREW £2.74 Add
007 732-0640 EXTENSION SPRING £4.14 Add
008 731-2509 GRIP £13.04 Add
009 683-0584-Z LEVER £34.34 Add
010 710-0604A SCREW £3.50 Add
011 736-0119 LOCK WASHER 5/16 £2.81 Add
012 712-3010 NUT £2.35 Add
013 750-0379 SPACER .657 ID X .87 OD X .85 £4.62 Add
014 714-0507 COTTER PIN 3/32 DIA £2.65 Add
015 736-0185 FLAT WASHER (RED) £3.04 Add
016 714-0104 PIN INTERNAL COTTER £2.36 Add
017 17597637 BRAKE ROD GUIDE BRKT 17597 N/A POA
018 747-0746 ROD:DECK ENGAGE £12.87 Add
019 16682P637 SLEEVE ASSY-PIVOT 16682 £32.03 Add
020 712-0130 HEX. INS L NUT (DNR) £1.80 Add
021 736-0314 WASHER-THRUST £2.52 Add
022 736-0116 WASH:FLAT:.635 x.93 x.06 £4.33 Add
023 714-0470 COTTER PIN £2.50 Add
024 712-3057 NUT 5/16-24 £2.35 Add
025 726-0354 CLAMP 16mm £7.07 Add
026 712-0237 HEX CENTRE NUT £7.19 Add
027 17555637 BRKT ASM:PIVOT:DECK LIFT RH RR 17555 £29.57 Add
028 738-0281 SCR:SHLDR:.625 x.17:3/8-16 £8.16 Add
029 17574637 SHAFT 17574 £53.89 Add
030 738-0667 SHAFT 3/8 DIA. X 11.28 (OBSOLETE) N/A POA
031 747-0745 ROD:DECK LIFT £23.82 Add
032 17573A637 BRACKET:STAB:DECK:36&38 17573A £35.63 Add
033 17554 ASM:DK LFT PVT BRKT R.FR-P £321.12 Add
034 17563 CONNECTING LINK RH £44.54 Add
035 736-0773 WASH:FLAT:16x22x1 DIN 988 £2.68 Add
036 17582637 BRKT:SUPPORT PIVOT R.H 17582 £390.53 Add
037 710-1012 BOLT:RIBBED:HD 5/16-24 x.87"LG £3.89 Add
038 683-0232637 SHF ASM:CROSS 683-0232 N/A POA
039 17557637 BRKT ASM:PIVOT:DECK LIFT SHORT 17557 £18.77 Add
040 17556637 BRKT ASM:PIVOT:DECK LIFT LH 17556 £22.22 Add
041 17581-0637 BRKT:SUPPORT PIVOT L.H. 17581 N/A POA
042 17562637 CONNECTING LINK LH 17562 £11.34 Add
043 683-0111-Z LINK ASSY. 3.31"LG. £18.92 Add
045 747-0634 LINK:LIFT ADJ 3/8X3.62 LG. £33.70 Add
047 736-0192 WASH:FL:.535 X .93 X .090 £3.89 Add
048 736-0185 FLAT WASHER (RED) £3.04 Add
049 736-0101 WASH:FLAT:.406 X 1.00 X .030 £3.93 Add
050 732-0638 EXTENSION SPRING £13.12 Add
051 732-0603 EXTENSION SPRING £16.80 Add
052 710-3038 BOLT £8.22 Add
053 783-0138 BRKT:RET:TRANS SPR £12.47 Add
054 17962 PLT:SW £4.62 Add
055 711-3397 FERRULE ADJUSTMENT £10.68 Add
056 725-0157 NYLON CABLE TIE 3/16 X .05 X 7.4 N/A POA
