MTD013809

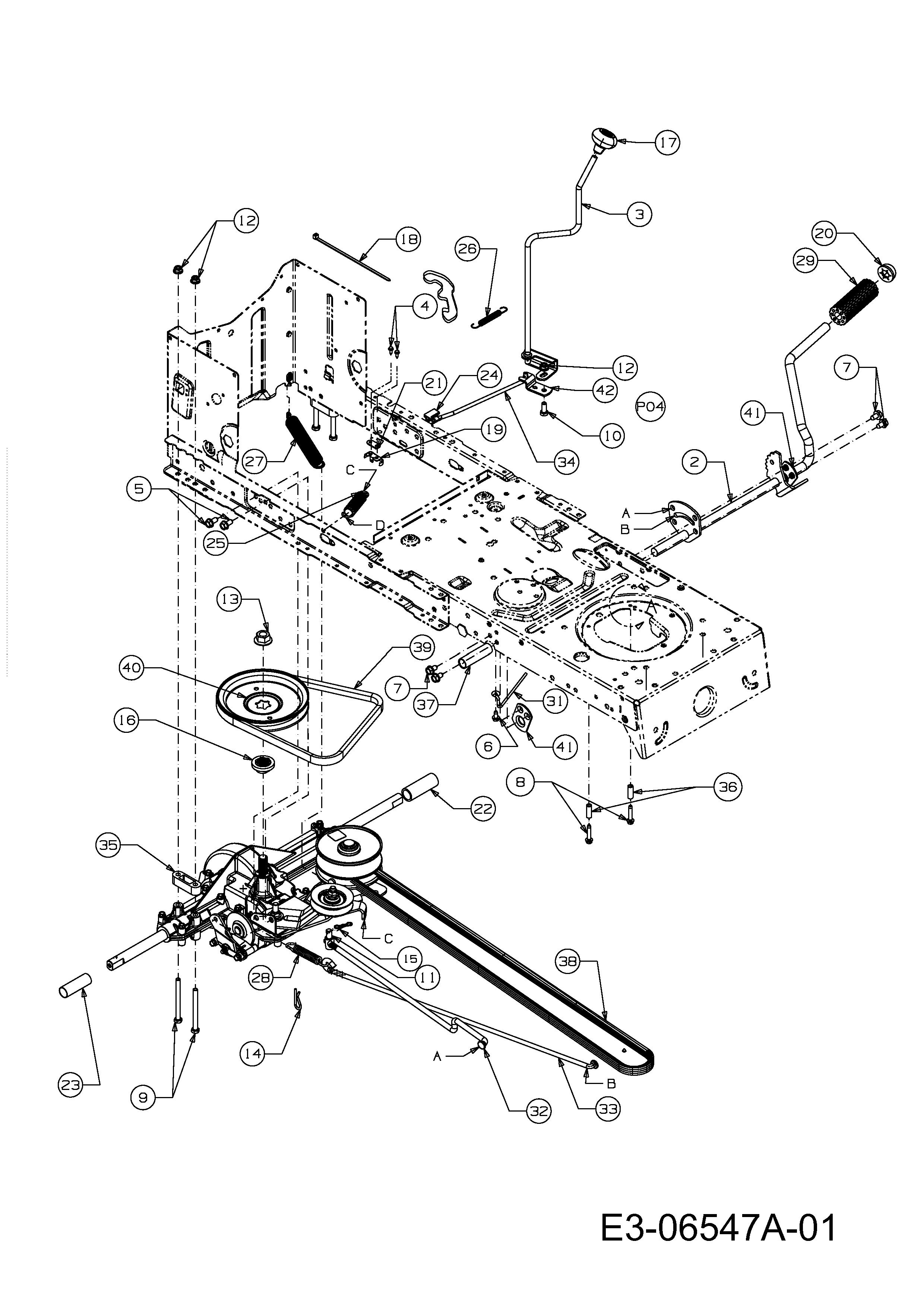

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD013809

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
002 647-04034C PED ASM:DRIVE LT-5 N/A POA
003 647-04035 SHFT ASM:PIVOT £23.70 Add
004 710-0227 SCR:AB:#8-18:0.500:HXINDWH £2.66 Add
005 710-04484 SCR:TT:5/16-18:.750:HXINDWSH £4.43 Add
006 710-0599 HEX TT SCREW 1/4-20 £4.16 Add
007 710-0604A SCREW £3.50 Add
008 710-0809 SCR:TT:1/4-20:1.250:HXINDWSH £2.94 Add
009 710-1266 SCREW HHCS:5/16-18:3.5:GR5:STD £5.40 Add
010 710-3008 HEX BOLT £2.57 Add
011 711-04075A FRL:3/8-24 X.375 DIA £19.14 Add
012 712-04063 FLANGED NUT £3.54 Add
013 712-0700 NUT:FLANGE:9/16-18:GR2 £15.98 Add
014 714-0209 INTERNAL COTTER PIN .125 DIA £3.73 Add
015 714-04040 PIN-COTTER £3.69 Add
016 718-04407 HUB:PUL:5/8 SPLINE £19.67 Add
017 720-04028 SHIFT KNOB BLACK £7.00 Add
018 725-0157 NYLON CABLE TIE 3/16 X .05 X 7.4 N/A POA
019 725-1644 SWITCH:SPRING:SHORT £5.88 Add
020 726-0214 PUSH CAP £4.51 Add
021 726-0320 INSULATING PLATE £2.55 Add
022 731-04602 SLEV:.758X.821X3.3125 £6.77 Add
023 731-04604 SLEV:.758X.821X2.4375 £6.47 Add
024 731-06894 BRG:PLT:SHIFT £10.32 Add
025 732-04306 EXTENSION SPRING £10.49 Add
026 732-04488 SPRING:EXT:.38 OD x 3.25 LG £19.08 Add
027 732-04746 SPR:EXTN:.94 DIA. x 6.75 LG £10.43 Add
028 732-0716D SPRING EXTENSION £12.05 Add
029 735-0239A FOOT PAD £6.34 Add
031 747-04969 ROD:KEEPR:BELT £19.22 Add
032 747-05186 ROD:CONT:VARI SPEED N/A POA
033 747-05188 ROD:BRAKE:LT-5 TRANS N/A POA
034 747-05243 ROD:SHIFT:LT-5 STRETCH 46" N/A POA
035 748-0334 TRANSAXLE SPACER .68 £7.66 Add
036 750-0566A SPACER £6.49 Add
037 750-0802 SPCR:.640 ID X .76 OD X2.63 LG £2.51 Add
038 754-04249A V BELT £78.26 Add
039 754-04285 V BELT £39.61 Add
040 756-04464 PUL:V TYP:6.56 DIA SPUN £42.42 Add
041 783-04536B-S BRKT:PED:SUPT: LT-5 £10.15 Add
042 783-04595A BRKT:SHFT:ADJ £8.35 Add
