MTD009785

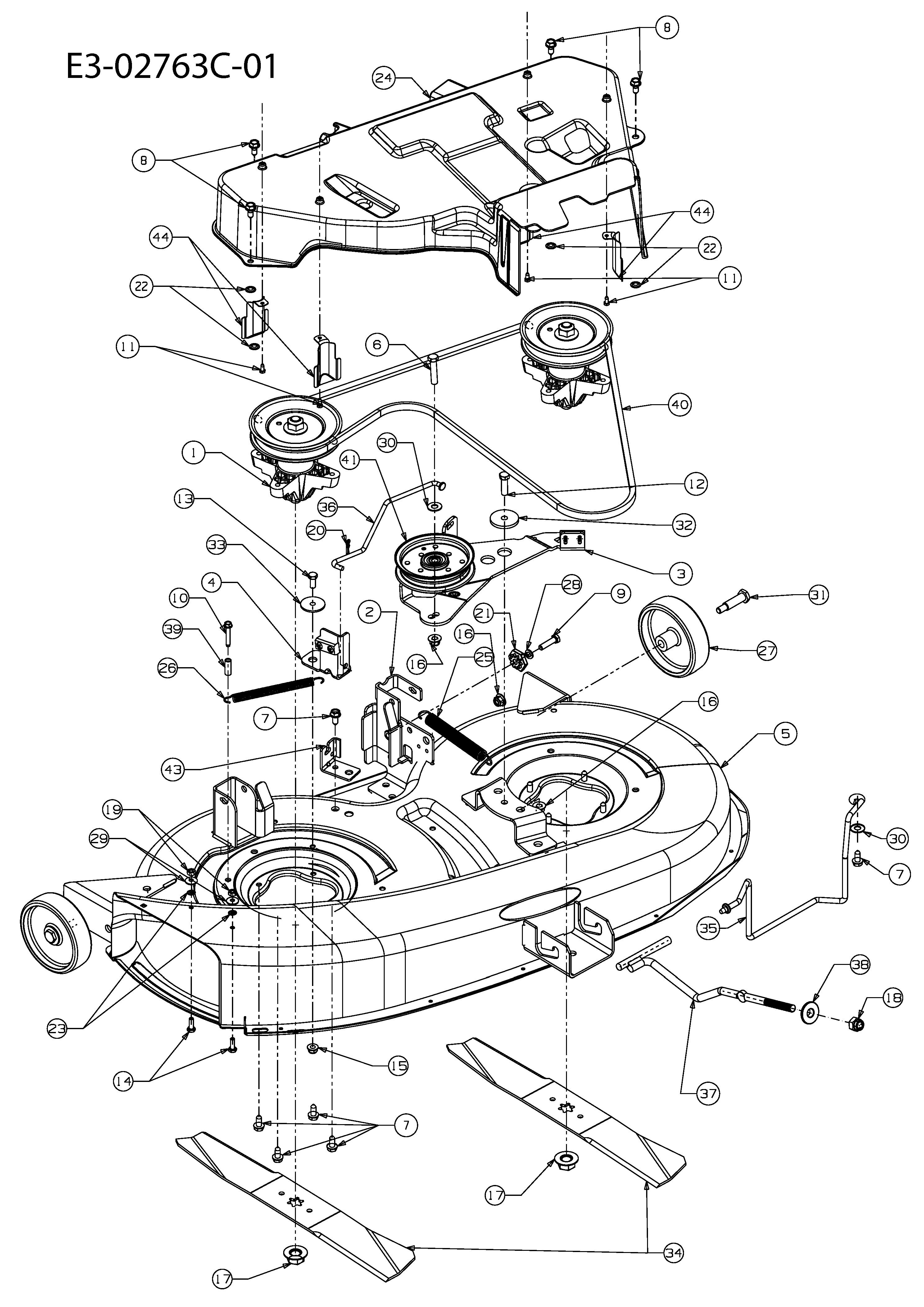

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD009785

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 618-04474B SPINDLE 5.75 INCH DIA £110.74 Add
002 683-04228 BRKT ASM:DECK:HNGR LH LT N/A POA
003 683-04138B BRAKE ASM:DECK:42" N/A POA
004 983-04167 BRAKE ASM:DECK 42" 683-04167 £23.28 Add
005 683-04264C-S DECK PAN 38 INCH BLACK £263.87 Add
006 710-0347 HEX SCR £3.14 Add
007 710-04484 SCR:TT:5/16-18:.750:HXINDWSH £4.43 Add
008 710-05045 SCR:TT:5/16-18:.750:HXINDWSH N/A POA
009 710-0528 SCREW (DNR) £3.00 Add
010 710-0778 HEX WASHER HEAD SCREW £2.71 Add
011 710-0919 SCREW TAPP £2.59 Add
012 710-3005 BOLT £2.75 Add
013 710-3008 HEX BOLT £2.57 Add
014 710-3015 SCREW HEX CAP £2.82 Add
015 712-04063 FLANGED NUT £3.54 Add
016 712-04065 NUT UTV £3.39 Add
017 712-05134 NUT £2.92 Add
018 712-04243 NUT £4.21 Add
019 712-3006 NUT £2.35 Add
020 714-0104 PIN INTERNAL COTTER £2.36 Add
021 717-04074 GEAR DECK ADJUSTMENT £9.30 Add
022 726-0201 SPEED NUT £2.61 Add
023 726-0233 NUT:PUSH:.25 ID X .50 OD £4.37 Add
024 731-05699B CVR:DECK:38" EXPORT N/A POA
025 732-04280B EXT SPRING £15.11 Add
026 732-04287 EXT SPRING £13.70 Add
027 734-0973 WHEEL DECK 5in. DIA £9.66 Add
028 736-0119 LOCK WASHER 5/16 £2.81 Add
029 736-0270 BELL WASHER £3.30 Add
030 736-0300 WASHER £2.39 Add
031 738-0373 AXLE BOLT £5.74 Add
032 738-04162C SPACER £3.72 Add
033 738-04166 SPACER £4.38 Add
034 742-0675-637 BLADE 19.38"LG 742-0675 £43.70 Add
035 747-04332A ROD:KEEPR:BELT 38" N/A POA
036 747-04381 BRAKE ROD 38" £18.30 Add
037 747-04875 HGR:FRNT:38" £48.25 Add
038 748-04069 PIVOT CUP £3.56 Add
039 750-0566A SPACER £6.49 Add
040 754-04062 BELT £55.27 Add
041 756-04129C PUL:IDLR:4.25" DIA 756-04129 N/A POA
043 783-04740 BRKT:CBL:DECK ENGAGE N/A POA
044 783-05497-Z BRKT:KEEPR:BELT:ZINC PLATED £38.04 Add
