MTD011286

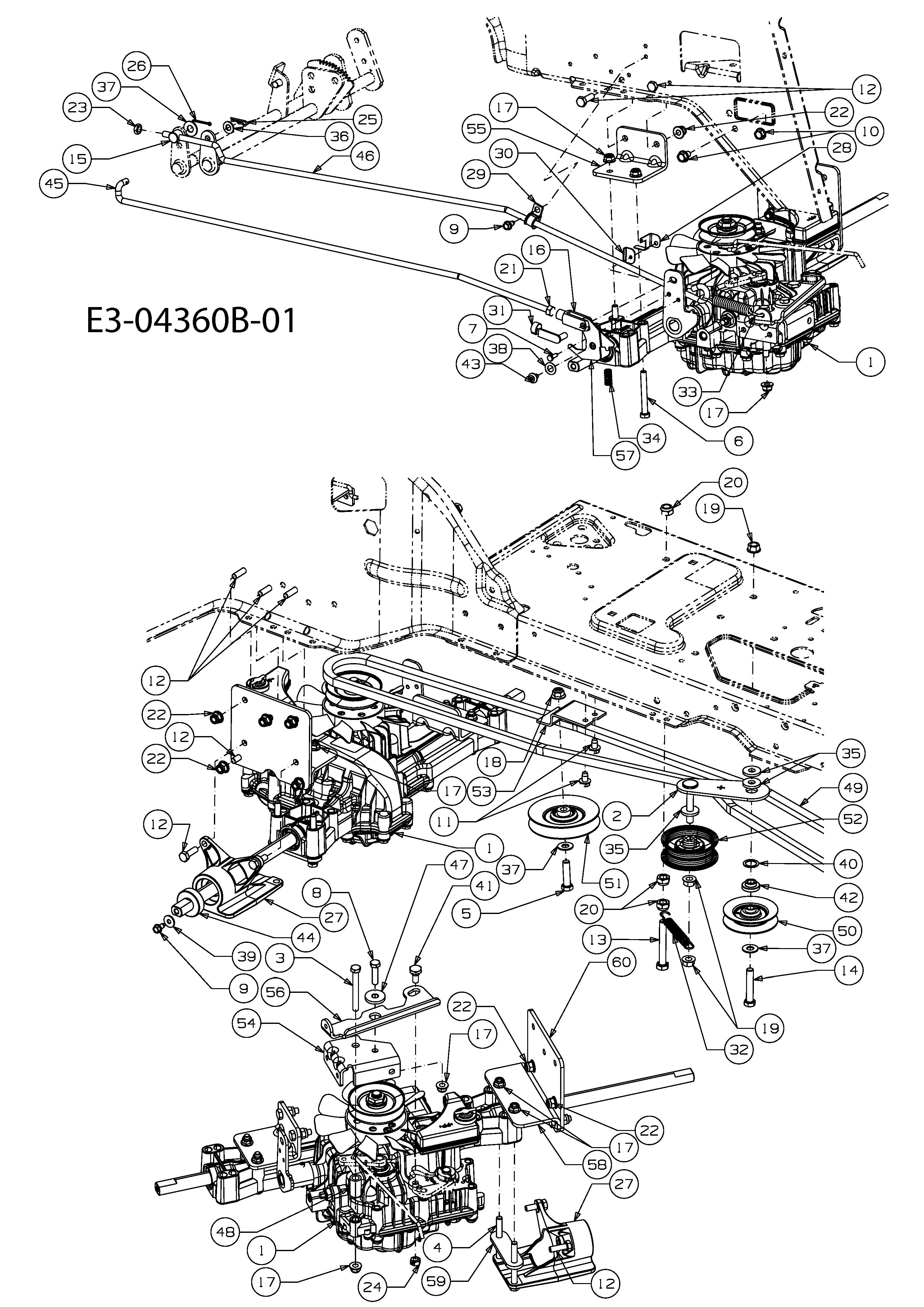

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD011286

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 618-04751 DR:HYDRO:TUFF TORO:500 N/A POA
002 683-0604A-Z BRKT ASM:IDLR:DBL 683-0604A £11.94 Add
003 710-0176 HHCS:5/16-18:2.75:GR5:STD £7.37 Add
004 710-0189 HHCS:5/16-18:3.00:GR5:STD £5.40 Add
005 710-0344 HHCS:3/8-16:1.50:GR5:SPEC N/A POA
006 710-0378 HHCS:5/16-18:2.50:GR5:STD £4.22 Add
007 710-0651 SCR:B:#10-16:0.625:HEX 710-0436 £2.64 Add
008 710-0528 SCREW (DNR) £3.00 Add
009 710-0599 HEX TT SCREW 1/4-20 £4.16 Add
010 710-0604A SCREW £3.50 Add
011 710-0607 SELF TAP SCREW £3.97 Add
012 710-1682 SCR:M8-1:25.00 LG:DIN 933 £3.02 Add
013 710-1771 BOLT:HEX M10-1.5:70 GR5 £5.26 Add
014 710-3144 SCREW £2.94 Add
015 711-0677 FERRULE:5/16-18 x.312 DIA £16.07 Add
016 711-1407 LINK £11.71 Add
017 712-04063 NUT £3.54 Add
018 712-04065 NUT UTV £1.60 Add
019 712-0431 NUT £2.71 Add
020 712-0637 NUT:M10x1.5 DIN 985 NYLOCK £5.57 Add
021 712-0690 NUT:HEX:M8-1.25 DIN 934 £2.33 Add
022 712-0714 NUT:FLGLK:M8-1.25 DIN 6926 £3.57 Add
023 712-3007 HEX JAM NUT £2.59 Add
024 712-3009 NUT:HEXLK:5/16-18:GRB:CTRLK £3.41 Add
025 714-0104 PIN INTERNAL COTTER £2.36 Add
026 714-0111 COTTER PIN £2.71 Add
027 719-0534 SUPPORTING BRACKET £61.39 Add
028 725-04834 SPRING SWITCH £8.25 Add
029 726-0272 Clamp £3.41 Add
030 726-04089 PLT:INSL:SW £5.75 Add
031 726-0457 CLIP £7.96 Add
032 732-0429A SPRING EXTENSION £7.31 Add
033 732-0716D SPRING EXTENSION £12.05 Add
034 732-0891A SPRING: BRAKE £4.78 Add
035 736-0258 WASHER:FLAT:.385 x 1.0 x.135 £3.17 Add
036 736-0275 WASH:FLAT:.344 x .688 x.065 £2.66 Add
037 736-0300 WASHER £2.39 Add
038 736-0314 WASHER-THRUST £2.52 Add
039 736-0685 WASHER £2.76 Add
040 736-0773 WASH:FLAT:16x22x1 DIN 988 £2.68 Add
041 738-0140 SHLD SCREW £5.06 Add
042 738-0372B COLLAR £4.74 Add
043 738-04375 SCR:SHLDR:.375 x.25 AB 1/4-14 £4.92 Add
044 741-0998 BRG:BALL:19mm x 40mm OD x 12mm £29.55 Add
045 747-05032 ROD:CONT:HYDRO TT 500 S £28.80 Add
046 747-05033 ROD:BRAKE:HYDRO:TT 500 £28.80 Add
047 748-0331 SHLD SPACER £3.56 Add
048 750-05141 SPCR:16mm OD x 10mm ID x29mm £5.47 Add
049 754-04222 BELT £88.93 Add
050 756-05234 IDLER PULLEY 2" DIA £21.36 Add
051 756-0487 PULLEY £31.04 Add
052 756-3054A PULLEY IDLER £54.71 Add
053 783-05340 BRKT:PUL:500 HYDRO N/A POA
054 783-06177 BRKT:MT:TORQUE:HYDRO:TT N/A POA
055 783-06179 BRKT:MT:LH:HYDRO:TT N/A POA
056 783-06218 BRKT:BRAKE:HYDRO:TT £27.00 Add
057 783-06228 BRKT:SW:HYDRO:TT 500 £18.98 Add
058 783-06317 BRKT:MT:TRANS:HYDRO TT N/A POA
059 783-06318 PLT:MT:TRANS:HYDRO:TT N/A POA
060 783-06404 BRKT:MT:RH:HYDRO:TT N/A POA
