MTD009173

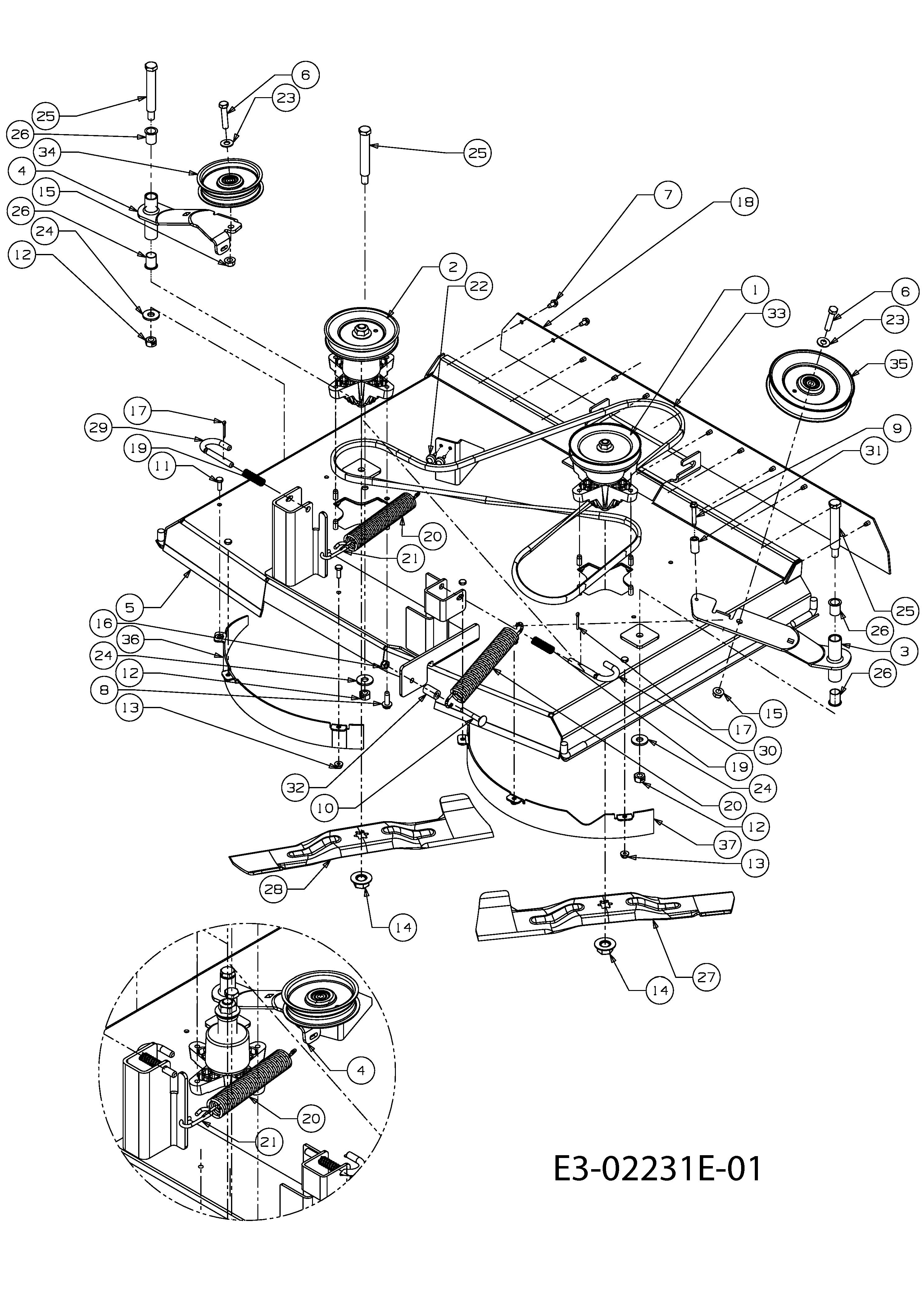

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD009173

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 618-04197B SPINDLE ASSY £126.47 Add
002 918-0409C KNIFE SHAFT ASSEMBLY PULLEY 5.39 DIA £123.96 Add
003 683-04153 BRKT ASM:IDLER £29.64 Add
004 683-04154A BRKT ASM:IDLR:DECK HI GRASS N/A POA
005 683-04184 DECK ASM:HIGH GRASS N/A POA
006 710-0347 HEX SCR £3.14 Add
007 710-0599 HEX TT SCREW 1/4-20 £4.16 Add
008 710-0602 SCREW:TT:5/16-18:1.00:HXINDWSH £5.54 Add
009 710-0778 HEX WASHER HEAD SCREW £2.71 Add
010 710-1719 BOLT £4.12 Add
011 710-3015 SCREW HEX CAP £2.82 Add
012 712-0290 NUT 7/16 CAD P/T LOCK TYPE 5 £2.36 Add
013 712-04064 NUT FLGLK 1/4 20 GRF NYLON £5.56 Add
014 712-05134 NUT £2.92 Add
015 712-0431 NUT £2.71 Add
016 712-0692 HEX NUT £2.57 Add
017 714-0470 COTTER PIN £2.50 Add
018 731-05342 DFL:FRT:RUBR £38.58 Add
019 732-0306A SPACER £4.44 Add
020 732-04099 SPRING £10.72 Add
021 732-04112637 ROD LINK 5MM DIA X 51MM LG £11.48 Add
022 735-0271A UTV TAILGATE GROMMET £7.74 Add
023 736-0300 WASHER £2.39 Add
024 736-04097A WASHER £2.82 Add
025 738-0476 SHOULDER SCREW £3.96 Add
026 741-0591 FLANGE BEARING £2.90 Add
027 742-04160 BLADE:RH:18.40 LG:STAR BAG £28.61 Add
028 742-04161 BLADE:LH:18.40:STAR BAG £28.61 Add
029 747-04116A ROD:HNDL:DECK REL .375 DIA 747-04116 £26.19 Add
030 747-1116 QUICK RELEASE PINS RH LONG £12.30 Add
031 750-04182 SPACER £3.70 Add
032 750-04195 SPACER Ò16 x Ò8 x 27LG DIN2391 £4.75 Add
033 754-04075 V BELT (500 E DECK) £90.04 Add
034 756-04049A IDLER £33.98 Add
035 756-04050 IDLER PULLEY £31.99 Add
036 783-04766 BFL:LH HI GRAS BOLT-ON N/A POA
037 783-04767 BFL:RH:HI GRASS BOLT-ON N/A POA
