MTD008518

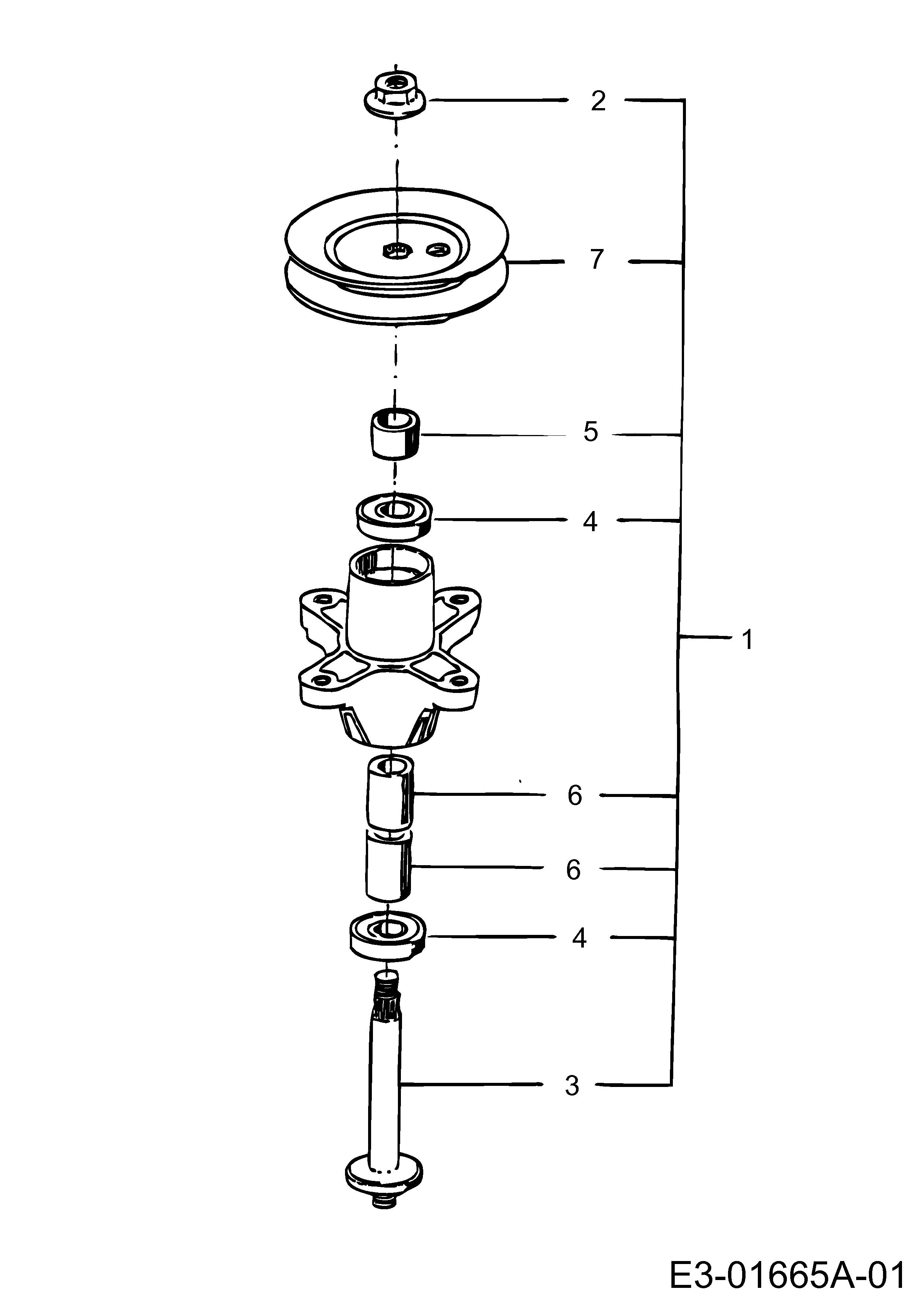

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD008518

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 618-04197B SPINDLE ASSY £126.47 Add
002 712-05134 NUT £2.92 Add
003 738-1010A SPINDLE £40.28 Add
004 741-0919B BALL BEARING £23.93 Add
005 748-0433 SPACER £8.29 Add
006 750-1000 SPACER £10.16 Add
007 756-1188 PULLEY £17.95 Add
