MTD016539

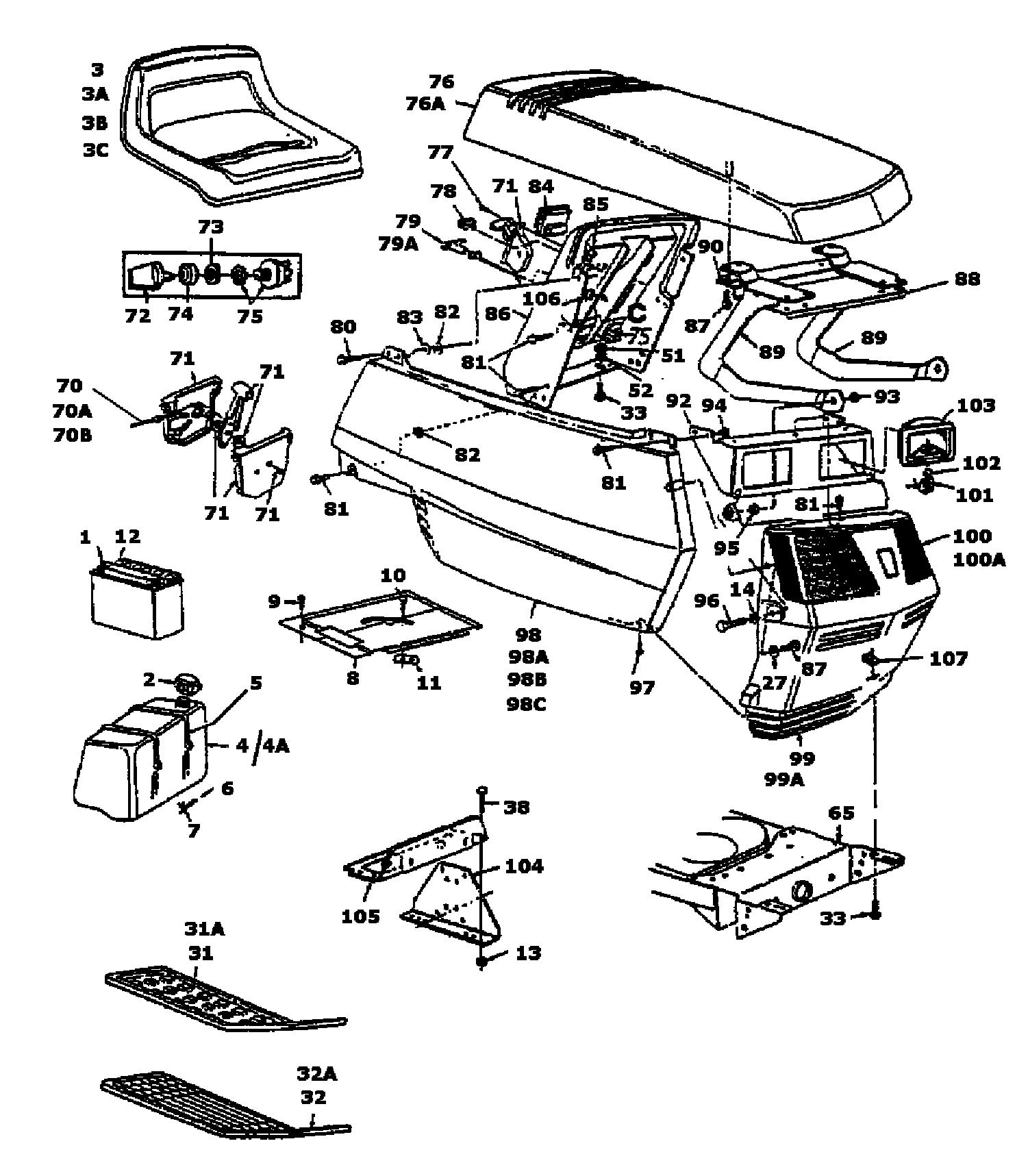

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD016539

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 EPB3118 BATTERY Y50-N18L-A2 (OBSOLETE) (OBSOLETE) N/A POA
002 751-0603A CAP:FUEL £7.12 Add
003 757-04107 SEAT £156.05 Add
004 751-0555B TANK:FUEL:1.5 GAL £84.76 Add
005 726-0209 TIE:CBL:30.66 LG (OBSOLETE) N/A POA
006 751-0535-MET FUEL LINE HOSE BLACK £9.79 Add
007 726-0205 HOSE CLAMP 1/2 INCH DIA. £2.90 Add
008 783-0212A637 COVER SHIFT 783-0212A N/A POA
009 710-1388 SCREW £2.74 Add
010 710-0227 SCR:AB:#8-18:0.500:HXINDWH £2.66 Add
011 726-0320 INSULATING PLATE £2.55 Add
012 759-3750 BATTERY CAP (OBSOLETE) N/A POA
013 712-0271 NUT:SEMS:1/4-20 £2.68 Add
014 736-0425 BELLWASHER £2.80 Add
027 736-0142 WASHER:FLAT:.281 x.50 x.063 £3.89 Add
031 731-0909 PAD-LH FOOT £28.58 Add
032 731-0911 FOOT PAD--L.H. £31.91 Add
033 710-3008 HEX BOLT £2.57 Add
038 710-0751 BOLT 069 £2.68 Add
03A 757-0365 SEAT:RAD YELLOW V460 £161.22 Add
03B 757-04109 SEAT BLACK HIGH BACK £183.29 Add
03C 757-0372 SEAT:V560 RAD YELLOW £342.37 Add
04A 751-0553 FUEL TANK £48.70 Add
051 712-04063 FLANGED NUT £3.54 Add
052 736-0275 WASH:FLAT:.344 x .688 x.065 £2.66 Add
065 783-0041A-0637 BRACKET:BAR:PIVOT 783-0041A N/A POA
070 746-0638 CABLE-THROTTLE £9.32 Add
071 931-0823A THROTTLE CONTROL BOX ASSY £18.86 Add
072 725-1341B IGNITION KEY WITHOUT LOGO £10.64 Add
073 725-1346 NUT IGN.SWITCH £5.00 Add
074 725-1347 CAP IGN.SWITCH £5.77 Add
075 725-1396A IGNITION SWITCH (6 PIN) £19.87 Add
076 731-1433 HOOD (YELLOW) £480.80 Add
077 710-0779A SELF TAP SCREW £3.02 Add
078 725-0634 SW:ROCKER £18.79 Add
079 746-3021 CHOKE CONTROL £28.16 Add
080 710-0642 SCREW-HEX HD TAP 4-20 x 7.5 £3.11 Add
081 710-0599 HEX TT SCREW 1/4-20 £4.16 Add
082 726-0233 NUT:PUSH:.25 ID X .50 OD £4.37 Add
083 736-0176 WASHER:FLAT:.265 x .938 x .120 £4.51 Add
084 725-0925 AMMETER 620 £21.94 Add
085 712-0185 ZIP TWIST FASTENER (FOR Ò 1/4 £5.40 Add
086 731-0960A DASH PANEL 731-0961 N/A POA
087 710-1005 SCR:B:1/4-14:0.500:HXINDWSH N/A POA
088 783-0121 HOOD REINFORCEMENT £17.88 Add
089 783-0123B HOOD HINGE 783-0123 N/A POA
090 17762 HOOD REINFORCEMENT SPACER £329.85 Add
092 17223 LIGHT BRACKET £7.75 Add
093 712-0158 NUT, HEX CENTER LOCK, 5/16-18 £7.82 Add
094 712-0107 Nut, Hex Lock 1/4-20 Thd. * 43013 £15.84 Add
095 712-3007 HEX JAM NUT £2.59 Add
096 710-0874 HHCS:5/16-18:1.25:GR5:SPEC £3.57 Add
097 710-1388 SCREW £2.74 Add
098 731-1434 SIDE COVER--R.H. (YELLOW) £302.30 Add
099 731-1442A GRILLE (YELLOW) £181.22 Add
100 731-0949 LENS--L.H. £20.53 Add
100A 731-0948 LENS--R.H. £17.88 Add
101 725-1650 SOCKET LAMP TWIST LOCK £13.00 Add
102 725-0963 BULB £6.02 Add
103 731-0705 HSG:HDLT £36.59 Add
104 17300E637 SUB-ASS`Y, REAR ANGLE £30.43 Add
105 17633A SUPPORT BRACKET £19.41 Add
106 17782 CHOKE CABLE RETAINER CLIP £716.53 Add
107 726-0211 U NUT £3.12 Add
31A 731-0910 PAD-RH FOOT £38.26 Add
32A 731-0912 FOOT PAD--R.H. £28.58 Add
70A 746-0634 THROTTLE CABLE £14.27 Add
70B 746-0638 CABLE-THROTTLE £9.32 Add
76A 731-1534 HOOD (RED) N/A POA
79A 746-0614A CHOKE CONTROL £18.12 Add
98A 731-1435 SIDE COVER-L.H. (YELLOW-NOT SHOWN) £190.53 Add
98B 731-1536 SIDE COVER-R.H. (RED) £158.73 Add
98C 731-1535 SIDE COVER-L.H. (RED-NOT SHOWN) £158.73 Add
99A 731-1372 GRILLE 731-0935 N/A POA
