MTD008119

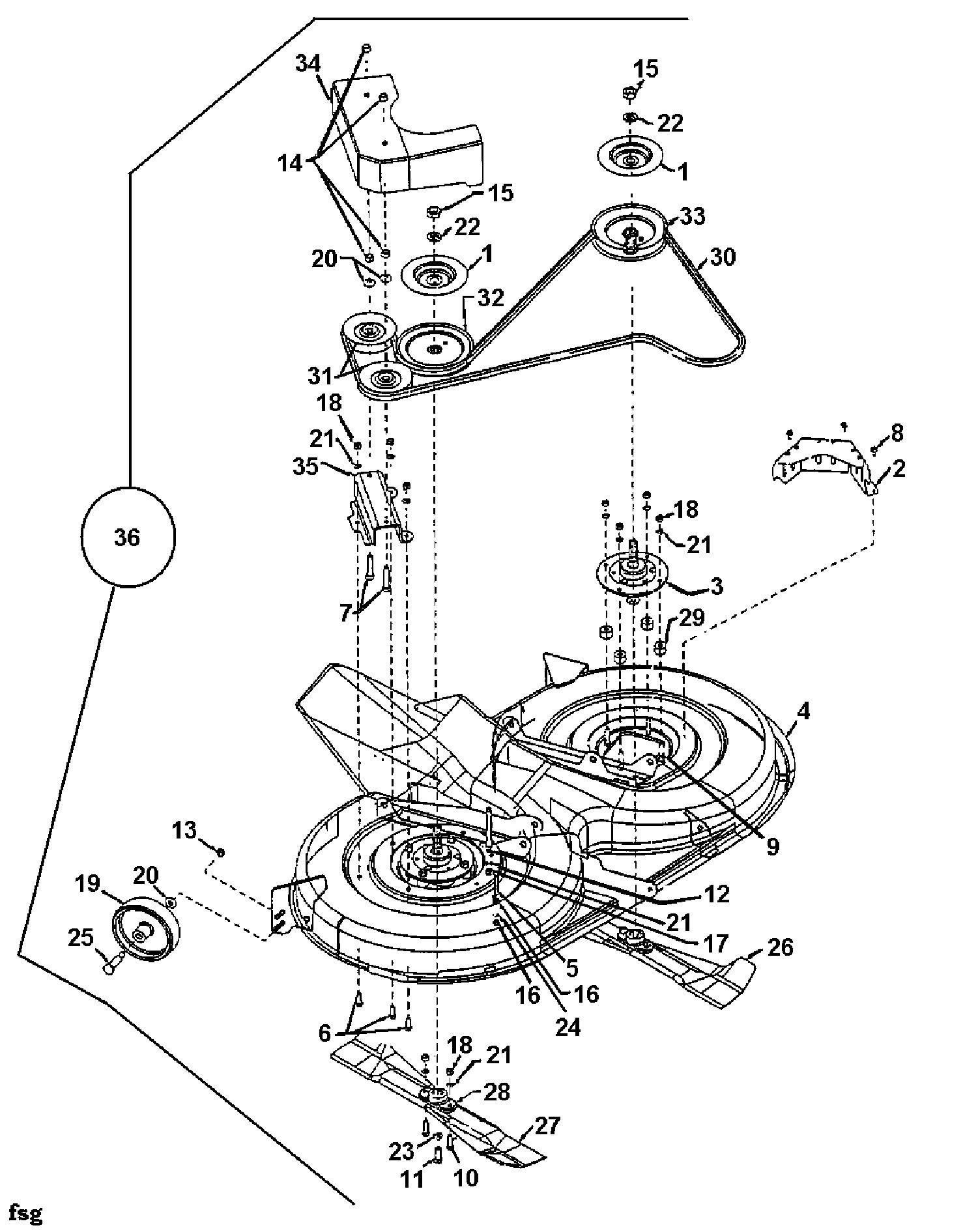

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD008119

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 09322 Monobolt 1/4 £10.24 Add
002 17664637 GUARD-BELT 17664 N/A POA
003 918-0140 SPINDLE ASSY-BLADE 40" DECK £105.97 Add
004 683-0164B637 DECK ASSY. 40" (OBSOLETE) N/A POA
005 710-0136 Bolt, Hex 1/4-20 x 1-3/4" 1509-069 £3.57 Add
006 710-0157 HHCS:5/16-24:.75:GR5:STD £3.38 Add
007 710-0539 HHCS:3/8-24:1.75:GR5:STD £3.93 Add
008 710-0599 HEX TT SCREW 1/4-20 £4.16 Add
009 710-0672 HHCS:5/16-24:1.25:GR5:STD £3.36 Add
010 710-0888 HEX SCR SPECIAL £4.16 Add
011 710-1039 HEX BOLT 3/8-24 x 1 INCH Lg £2.78 Add
012 711-0828 JACK SHAFT 5/8 DIA. X2.06 LG £9.50 Add
013 712-0181 HEX JAM L NUT £2.89 Add
014 712-0241 HEX NUT 3/8-24 £2.38 Add
015 712-0318 NUT £3.32 Add
016 712-3006 NUT £2.35 Add
017 712-3010 NUT 5/16 x 18 £2.35 Add
018 712-3057 NUT 5/16-24 £2.35 Add
019 734-0973 WHEEL DECK 5in. DIA £9.66 Add
020 736-0105 BELL WASHER £2.82 Add
021 736-0119 LOCK WASHER 5/16 £2.81 Add
022 736-0158 WASHER:LOCK:5/8:SPLT:REG £3.44 Add
023 736-0217 H.L. WASHER (RED) £4.12 Add
024 736-0329 L. WASHER £1.28 Add
025 738-0373 AXLE BOLT £5.74 Add
026 742-0607C BLADE 20.5" £37.20 Add
027 742-0608C BLADE 20.5" £37.20 Add
028 748-0300 BLADE ADAPTOR £16.90 Add
029 750-0776 SPCR:.33 ID X .88 OD X .51 LG £3.61 Add
030 754-0470 BELT £69.89 Add
031 756-0487 PULLEY £31.04 Add
032 756-0615 PUL:DECK:5.5 DIA £58.09 Add
033 756-0617 PUL:DECK:5.0448 x .437 PINS £55.83 Add
034 783-0640637 GUARD BELT 783-0640 N/A POA
035 783-0641 SUPPORT-HANDLE PANEL £18.16 Add
036 813-07232 DECK:40" R.D.:HYDRO N/A POA
