MTD008106

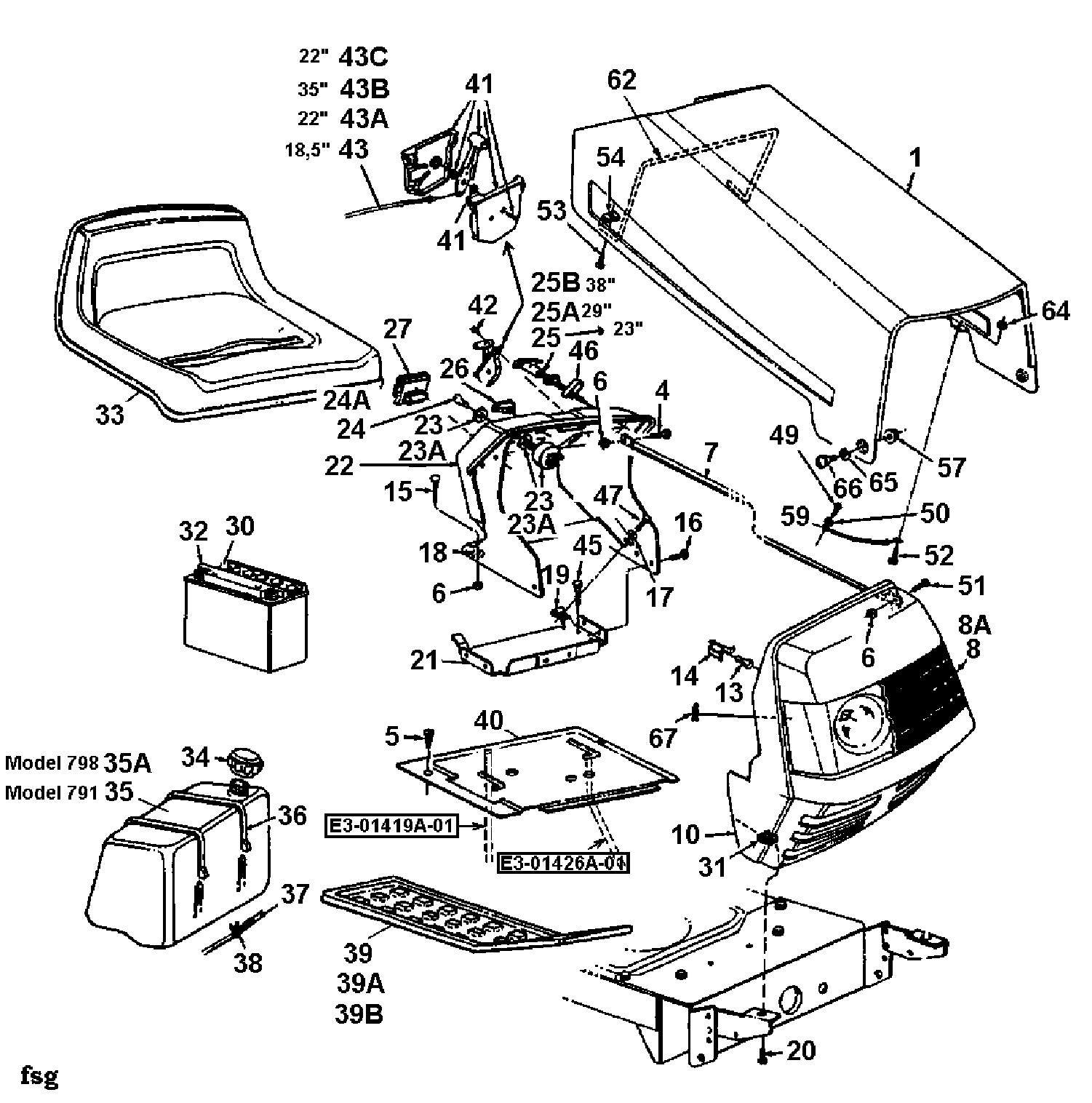

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD008106

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 17941 HOOD £86.13 Add
004 710-0751 BOLT 069 £2.68 Add
005 710-1388 SCREW £2.74 Add
006 712-0271 NUT:SEMS:1/4-20 £2.68 Add
007 749-0722B ROD:SUPPORT:GRILLE:PAINTED N/A POA
008 731-1767 HEADLIGHT LENS WITH LOGO £65.10 Add
010 17940B GRILLE"1"STY N/A POA
013 725-0963 BULB £6.02 Add
014 725-1651 LAMP SOCKET, LONG £18.65 Add
015 710-0703 SCR:CRG:1/4-20:.75:GR5 £2.66 Add
016 710-0599 HEX TT SCREW 1/4-20 £4.16 Add
017 736-0173 WASH:FL:.28ID:.74OD:.063 £3.57 Add
018 726-0233 NUT:PUSH:.25 ID X .50 OD £4.37 Add
019 712-0185 ZIP TWIST FASTENER (FOR Ò 1/4 £5.40 Add
020 710-3008 HEX BOLT £2.57 Add
021 17632A-0637 BRKT:BAT:SUPT 17632A N/A POA
022 731-1096B Instrument panel £79.96 Add
023 725-0267B IGNITION SWITCH £20.89 Add
024 725-0201 IGNITION KEY £5.44 Add
025 746-0616A CHOKE CONTROL CABLE ASSY £10.63 Add
026 725-0634 SW:ROCKER £18.79 Add
027 725-0925 AMMETER 620 £21.94 Add
030 759-3750 BATTERY CAP (OBSOLETE) N/A POA
031 726-0211 U NUT £3.12 Add
032 EPB3118 BATTERY Y50-N18L-A2 £61.32 Add
033 757-04107 SEAT £156.05 Add
034 751-0603A CAP:FUEL £7.12 Add
035 751-0555B TANK:FUEL:1.5 GAL £84.76 Add
036 726-0209 TIE:CBL:30.66 LG (OBSOLETE) N/A POA
037 751-0535-MET FUEL LINE HOSE BLACK £9.79 Add
038 726-0205 HOSE CLAMP 1/2 INCH DIA. £2.90 Add
039 731-0909 PAD-LH FOOT £28.58 Add
040 783-0133B CVR: SHF £29.61 Add
041 931-0823A THROTTLE CONTROL BOX ASSY £18.86 Add
042 710-0779A SELF TAP SCREW £3.02 Add
043 746-0638 CABLE-THROTTLE £9.32 Add
045 710-0603 SCR:B:5/16-12:0.500:HXINDWSH £8.76 Add
046 17782 CHOKE CABLE RETAINER CLIP £716.53 Add
047 710-0642 SCREW-HEX HD TAP 4-20 x 7.5 £3.11 Add
049 710-1388 SCREW £2.74 Add
050 736-0400 FLAT WASHER .194x.620Dx.63TH £3.18 Add
051 710-0924 TRUSS SCREW £1.48 Add
052 710-0473 SCR:MACH:#10-24:0.500:TRUSPHI £3.57 Add
053 710-0589 SET SCREW £2.52 Add
054 726-0130 SPEEDNUT 10Z-"U" TYPE £4.58 Add
057 712-3027 LOCK NUT £2.38 Add
059 723-0302 HOOD STOP X 7.0 £33.85 Add
062 732-0714 HOOD SPRING £11.78 Add
064 712-0272 NUT SEMS:#10-24 £3.89 Add
065 736-0413 WASH-SPR:.390 x.625 x.012 N/A POA
066 738-0952A SHOULD. SCREW .375x.125:1/4-20 £3.24 Add
067 714-0104 PIN INTERNAL COTTER £2.36 Add
08A 731-1767 HEADLIGHT LENS WITH LOGO £65.10 Add
23A 725-1396A IGNITION SWITCH (6 PIN) £19.87 Add
24A 725-1341B IGNITION KEY WITHOUT LOGO £10.64 Add
25A 746-3021 CHOKE CONTROL £28.16 Add
25B 746-0614A CHOKE CONTROL £18.12 Add
35A 751-0553 FUEL TANK £48.70 Add
39A 731-0910 PAD-RH FOOT £38.26 Add
39B 723-0422 PAD:FT:ABRASIVE TYPE £18.23 Add
43A 746-0638 CABLE-THROTTLE £9.32 Add
43B 746-0634 THROTTLE CABLE £14.27 Add
43C 746-0775 WIRE:THROT:X 22.0 £11.30 Add
