MTD008884

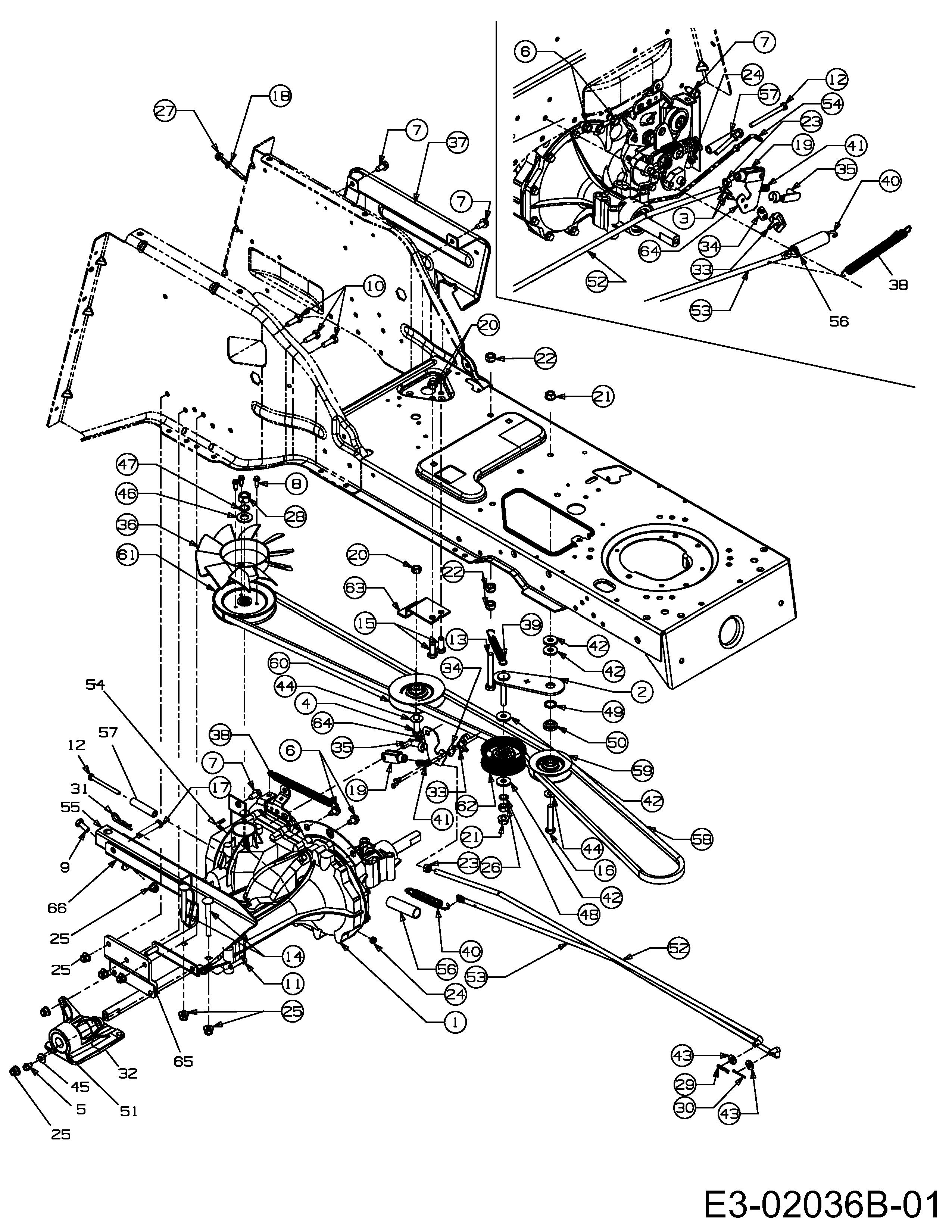

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD008884

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 618-0389A TRANSAXLE £1,015.16 Add
002 683-0604A-Z BRKT ASM:IDLR:DBL 683-0604A £11.94 Add
003 710-0227 SCR:AB:#8-18:0.500:HXINDWH £2.66 Add
004 710-0344 HHCS:3/8-16:1.50:GR5:SPEC N/A POA
005 710-0599 HEX TT SCREW 1/4-20 £4.16 Add
006 710-0607 SELF TAP SCREW £3.97 Add
007 710-0726 SCR:AB:5/16-12:0.750:HXINDWSH £3.01 Add
008 710-1189 SCR:C:#12-24:0.625:HXINDWSH N/A POA
009 710-1681 HEX BOLT M8 X 20 DIN 933 (RED) £2.75 Add
010 710-1682 SCR:M8-1:25.00 LG:DIN 933 £3.02 Add
011 710-1683 SCR:M8-1:30.00 LG:DIN 933 £2.64 Add
012 710-1766 SCREW HHCS:M6-1:70.00:DIN 931 £3.89 Add
013 710-1771 BOLT:HEX M10-1.5:70 GR5 £5.26 Add
014 710-1895 SCR:CARR:M8-1.25:75LG DIN 603 £4.48 Add
015 710-3001 SCREW HHCS:3/8-16:.880:GR5:STD £2.51 Add
016 710-3144 SCREW £2.94 Add
017 711-0679A CLEVIS PIN £5.62 Add
018 711-0747 PIN:GDE:.250 DIA x 1.68 LG £5.26 Add
019 711-1407 LINK £11.71 Add
020 712-0375 NUT:HEXLK:3/8-16:GRA:CTRLK £3.20 Add
021 712-0431 NUT £2.71 Add
022 712-0637 NUT:M10x1.5 DIN 985 NYLOCK £5.57 Add
023 712-0690 NUT:HEX:M8-1.25 DIN 934 £2.33 Add
024 712-0691 HEX NUT M6 DIN 985 £1.28 Add
025 712-0714 NUT:FLGLK:M8-1.25 DIN 6926 £3.57 Add
026 712-3017 NUT:JAM:3/8-16:GR5 £2.49 Add
027 712-3027 LOCK NUT £2.38 Add
028 712-3066 NUT:HEX:1/2-20 GR5 £3.57 Add
029 714-0104 PIN INTERNAL COTTER £2.36 Add
030 714-0111 COTTER PIN £2.71 Add
031 714-0147 COTTER PIN £2.96 Add
032 719-0534 SUPPORTING BRACKET £61.39 Add
033 725-1773 SW:SPR:SHORT £7.08 Add
034 726-0320 INSULATING PLATE £2.55 Add
035 726-0457 CLIP £7.96 Add
036 731-1449A FAN:BLADE:10 £18.55 Add
037 731-2542A COVER £10.11 Add
038 732-0308 EXTENSION SPRING £7.73 Add
039 732-0429A SPRING EXTENSION £7.31 Add
040 732-0716D SPRING EXTENSION £12.05 Add
041 732-0891A SPRING: BRAKE £4.78 Add
042 736-0258 WASHER:FLAT:.385 x 1.0 x.135 £3.17 Add
043 736-0275 WASH:FLAT:.344 x .688 x.065 £2.66 Add
044 736-0300 WASHER £2.39 Add
045 736-0685 WASHER £2.76 Add
046 736-0707 WASH:FLAT:A 15 DIN 125 £4.41 Add
047 736-0751 SCHNORR:S-WASHER:13IDx18ADx1.7 £3.30 Add
048 736-0755 WASHER 10 SCHNORR £3.57 Add
049 736-0773 WASH:FLAT:16x22x1 DIN 988 £2.68 Add
050 738-0372B COLLAR £4.74 Add
051 741-0998 BRG:BALL:19mm x 40mm OD x 12mm £29.55 Add
052 747-1301 ROD:CONT:HYDRO 500 LG £29.89 Add
053 747-1302B BRAKE ROD HYDRO 500 LONG £33.09 Add
054 747-1315B ROD:HYDRO:BYPASS 500 LWB £18.17 Add
055 749-04013B-S HITCH TUBE BLACK £26.88 Add
056 750-0802 SPCR:.640 ID X .76 OD X2.63 LG £2.51 Add
057 750-1329 SPCR:.275 ID x.50 OD x 2.28 £4.16 Add
058 754-0125A BELT £102.31 Add
059 756-05234 IDLER PULLEY 2" DIA £21.36 Add
060 756-0487 PULLEY £31.04 Add
061 756-1052 PULlEY TRANS 4.50 DIA £30.15 Add
062 756-3054A PULLEY IDLER £54.71 Add
063 783-04639A BRKT:PUL:500 HYDRO N/A POA
064 783-0786-Z BRKT:ACTR:SW EURO 783-0786 £9.96 Add
065 783-1371 BRKT:MT:HYDRO £17.37 Add
066 783-1372 HITCH BRACKET £29.15 Add
