MTD011527

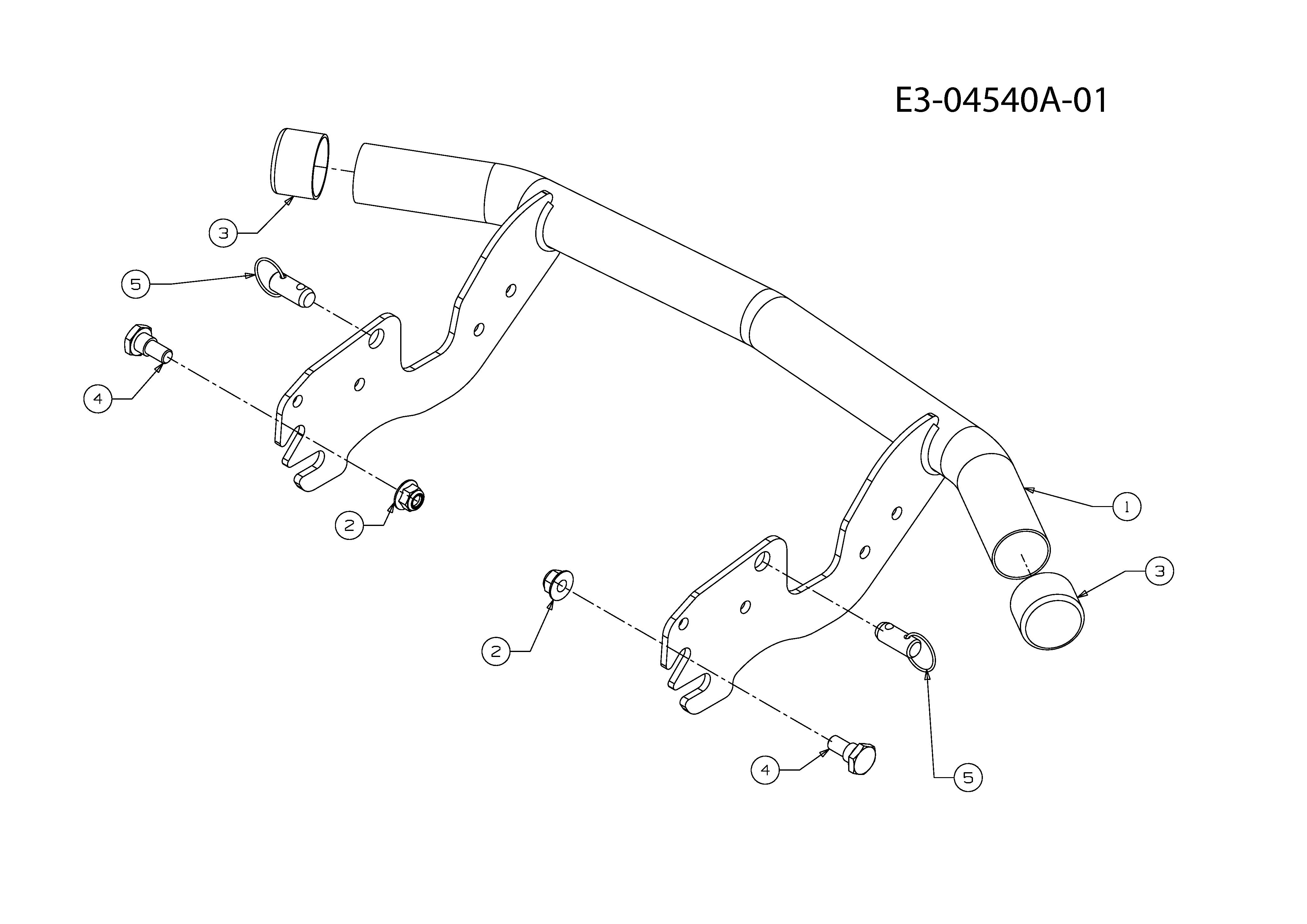

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD011527

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 683-04219B BUMPER TUBE £91.63 Add
002 712-04065 NUT £3.39 Add
003 731-05674 guard cap £5.36 Add
004 738-0143 SHOULDER BOLT £11.95 Add
005 714-04061 PIN £17.21 Add
