MTD011507

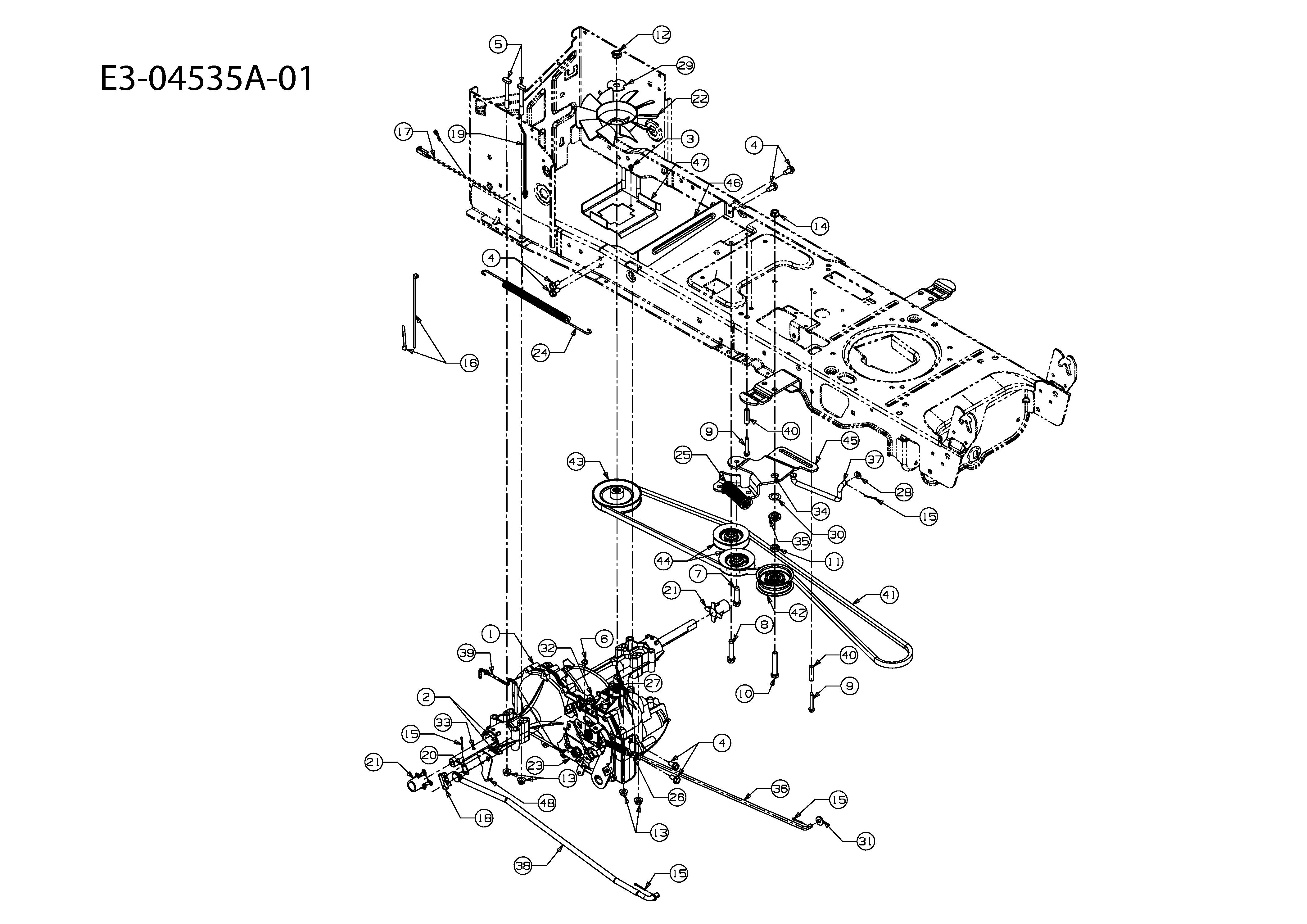

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	618-0319	TRANSMISSION:HYDRO:0510	£1,297.01	Add
002	710-0227	SCR:AB:#8-18:0.500:HXINDWH	£3.07	Add
003	710-1388	SCREW	£3.23	Add
004	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
005	710-04823	PIN	£19.81	Add
006	710-0653	HEX SCREW, 1/4-20 X 3/8"	£4.22	Add
007	710-1007	SCREW HEX HD TAP	£4.14	Add
008	710-1008	NO LONGER AVAILABLE	N/A	POA
009	710-1325	SCR:TT:1/4-20:1.625:HXINDWSH	£3.77	Add
010	710-3011	HHCS:3/8-16:2.25:GR5:STD	£7.05	Add
011	712-0240	NUT	£3.62	Add
012	712-0346	NO LONGER AVAILABLE	N/A	POA
013	712-04063	FLANGED NUT	£4.20	Add
014	712-0431	NUT	£3.20	Add
015	714-0111	COTTER PIN	£3.20	Add
016	725-0157	NO LONGER AVAILABLE	N/A	POA
017	725-04791	WIRE HARNESS	£25.29	Add
018	725-1644	SWITCH:SPRING:SHORT	£6.24	Add
019	726-0154	TIE:CABLE:PUSH MOUNT 7.5 LG	£4.80	Add
020	726-0320	INSULATING PLATE	£2.97	Add
021	731-05299	SLV:.765 ID x 1.500 LG	£4.22	Add
022	731-06098	FAN:HYDRO:LT	£21.68	Add
023	732-0209	EXTENSION SPRING	£8.58	Add
024	732-04606	SPR-EXTN:.500 DIA x 12.6 LG	£24.51	Add
025	732-04624	SPRING EXTENSION	£12.84	Add
026	732-0716D	SPRING EXTENSION	£14.42	Add
027	732-3118	SPR:EXTN:.375 OD x 1.44 LG	£13.84	Add
028	736-0264	WASH:FLAT:.330 x.630x.0635	£3.59	Add
029	736-04263	WASHER:LOCK:TRANS HYDRO	£5.62	Add
030	736-04337	WASH:SHIM:1.00 x.632 x .010	£10.52	Add
031	736-3008	WASH:FL:.344 X.750 X.120	£3.49	Add
032	736-3010	WASH:FL:.407X.812X.135:HD	£2.85	Add
035	738-0372B	COLLAR	£5.64	Add
036	747-04139	ROD:BRAKE:HYDRO	£40.83	Add
037	747-04957A	ROD:TRANS:FOOTPEDAL BYPASS	£12.14	Add
038	747-04979	ROD:CONT:HYDRO	£37.86	Add
039	747-04991	ROD:HYDRO:BYPASS	£13.43	Add
040	750-04456	SPACER	£5.75	Add
041	754-04207	TRANSMISSION BELT	£88.20	Add
042	756-04224	IDLER PULLEY	£28.15	Add
043	756-04308	PULLEY:INPUT:4.13 DIA	£43.19	Add
044	756-04325	PULLEY	£35.65	Add
045	783-06027	BRACKET-IDLER PIVOT	£28.82	Add
046	783-06133	BRKT:MNT:HYDRO	£36.54	Add
047	783-06260	BRKT:SUPT:BELT DISENGAGE	£29.73	Add
048	783-1019B	BRKT:ACTUATOR:SW LT	£21.46	Add
