MTD011259

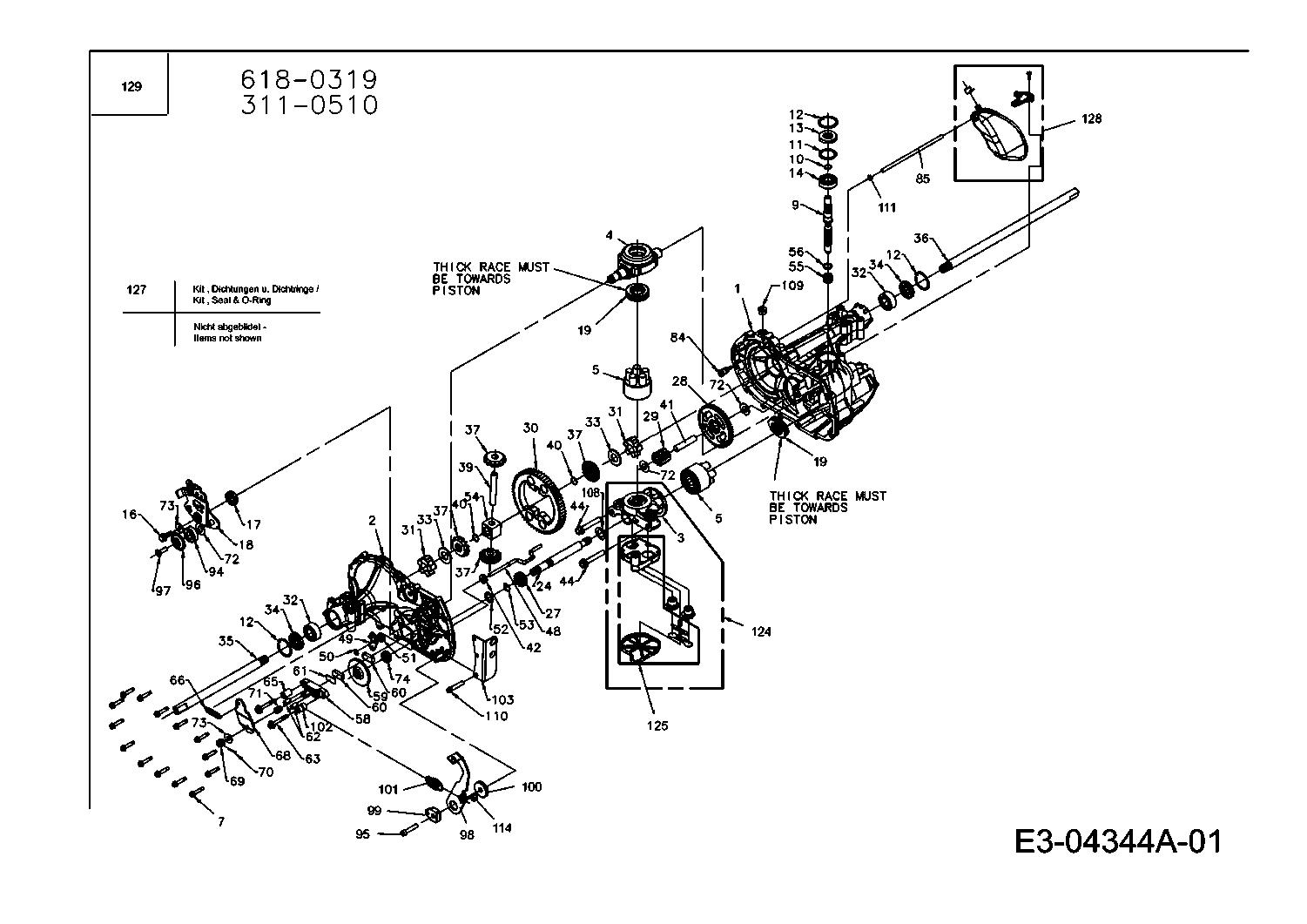

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD011259

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 HG-70467 MAIN HOUSING ASSEMBLY £393.49 Add
002 HG-70483 KIT,SIDE HOUSING N/A POA
003 HG-70477 CENTER SECTION ASSEMBLY £298.77 Add
004 HG-51048 SWASHPLATE,TRUNNION MACHINED £169.66 Add
005 HG-70331 CRANKCASE-COMP £239.21 Add
007 HG-51190 HEXFLANGE SCREW 1/4-20X1.25 £8.25 Add
009 HG-51062 SHAFT,INPUT £153.01 Add
010 HG-2000022 Circlip £5.75 Add
011 HG-50951 bush £9.50 Add
012 28.3592.40 RING-SNAP HG-50329 N/A POA
013 HG-51161 SEALING WASHER £34.62 Add
014 HG-50315 SELF-ALIGNING BEARING £44.70 Add
016 HG-51064 SCREW,HEX CAP £6.39 Add
017 HG-51140 SEAL-LIP 18X32X7 DIN 3760 £24.58 Add
018 HG-51119 ARM-CONTROL £85.35 Add
019 HG-50551P THRUST BEARING HG-50551 £54.00 Add
024 HG-50966 SHAFT-MOTOR £90.73 Add
027 HG-51130 SPROCKET-#60 £16.40 Add
028 HG-51129 Gear £103.44 Add
029 HG-51043 Gear N/A POA
030 HG-51044 Gear N/A POA
031 HG-51088 BEARING SLEEVE £57.14 Add
032 HG-51089 BEARING £55.52 Add
033 HG-44875 washer £6.93 Add
034 HG-51066 SEAL LIP £20.48 Add
035 HG-51079 SHAFT, AXLE RH N/A POA
036 HG-51078 SHAFT, AXLE LH .75 X 16.99 DD £153.71 Add
037 HG-71310 GEAR KIT-BEVEL £152.05 Add
039 HG-50146 AXLE-FR N/A POA
040 HG-44871 RETAINING RING £14.94 Add
041 HG-51083 PIN N/A POA
042 HG-51100 MAGNET RING £26.52 Add
044 HG-50016 Screw £17.99 Add
048 HG-51098 ROD, BYPASS ACTUATOR £62.02 Add
049 HG-51135 ARM BYPASS £19.09 Add
050 HG-51116 Circlip £10.74 Add
051 HG-51081 SEALING WASHER £16.20 Add
052 HG-44371 WASHER. 1.59x1.032x.060 £23.37 Add
053 HG-44145 SNAP RING £5.89 Add
054 HG-51071 BEARING CENTER BLOCK N/A POA
055 HG-2003014 Spring £5.99 Add
056 HG-2003017 washer (OBSOLETE) N/A POA
058 HG-62589 BRAKE YOKE £61.46 Add
059 HG-51072 ROTOR,BRAKE £40.69 Add
060 717-0678 PAD £10.75 Add
061 717-0682 PLATE £12.25 Add
062 741-0343 PIN £9.02 Add
063 HG-51146 Screw N/A POA
065 HG-23711 SPACER £7.88 Add
066 HG-70896 SPRING N/A POA
068 HG-44094 ARM-BRAKE £34.00 Add
069 712-0335 CASTLE NUT HG-44142 £6.15 Add
070 714-0507 COTTER PIN 3/32 DIA £2.65 Add
071 HG-50919 BRAKE SPRING £9.82 Add
072 HG-50132 washer £5.41 Add
073 736-0371 WASH:THRST:.343 X .880 X .062 £2.71 Add
074 HG-70719 KIT SEAL £39.56 Add
084 HG-51143 COUPLING, 3/4" ID PVC TUBE N/A POA
085 HG-51147 TUBE £16.92 Add
094 HG-44147 BALL BEARING N/A POA
095 HG-50837 Screw £15.90 Add
096 HG-51200 bush £45.36 Add
097 HG-50870 Screw £7.95 Add
098 HG-51120 ARM,RETURN £75.63 Add
099 HG-51097 PUCK,ADJUSTING N/A POA
100 HG-52493 N/A POA
101 HG-51131 SPRING EXTENSION £11.52 Add
102 HG-51123 bush N/A POA
103 HG-51223 BRKT:TRNMT N/A POA
108 HG-51069 WASHER,MOTOR SHAFT £11.03 Add
109 90051105600 PLUG W/RING £21.17 Add
110 HG-50868 SCREW,SIX LOBED TAPPING £4.61 Add
111 HG-51144 SEAL-"O"RING HYDRO TILLER £5.99 Add
114 HG-51184 LOCK WASHER £5.75 Add
124 HG-70759 70759 £58.62 Add
125 HG-70756 FILTER ASSEMBLY £77.31 Add
127 HG-70463 SEAL KIT £102.53 Add
128 HG-70503 KIT - EXPANSION TANK £69.41 Add
129 618-0319 TRANSMISSION:HYDRO:0510 £1,110.24 Add
