MTD009161

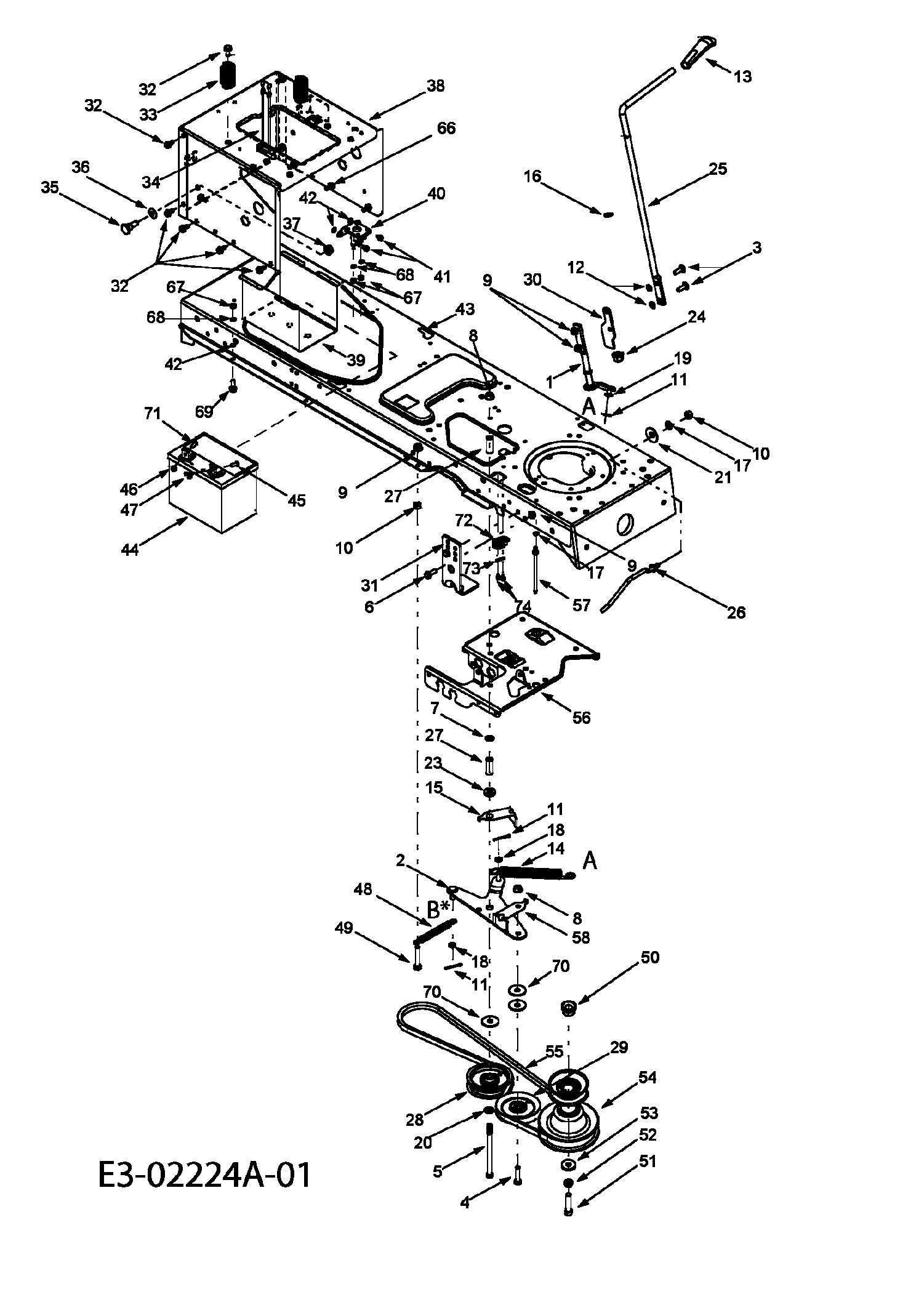

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	647-0064	PTO ENGAGE LEVER ASSEMBLY	£136.40	Add
002	683-0450	PLATE ASSY.-ENGAGEMENT	£38.88	Add
003	710-0276	SCREW:CRG:SPL:5/16-18:1.00	£3.69	Add
004	710-0520	SCREW HEX CAP 3/8 (RED)	£3.51	Add
005	710-0831	SCREW HHCS:3/8-16:5.50:GR5:STD	£11.34	Add
006	710-1238	SCREW	£3.20	Add
007	712-0229	NUT PUSH	£5.20	Add
008	712-0431	NUT	£3.20	Add
009	712-3004A	HEX FLANGE NUT	£2.97	Add
010	712-3010	NUT 5/16 x 18	£2.77	Add
011	714-0470	COTTER PIN	£5.07	Add
012	726-0201	SPEED NUT	£3.10	Add
013	631-04247	KNOB ASM:PTO:500	£7.92	Add
014	732-1170	Spring	£13.25	Add
015	732-0991A	ROD ASM-BELT GUARD	£20.33	Add
016	736-0108	WASH-FLAT:.510 x.750 x.033	£3.59	Add
017	736-0119	LOCK WASHER 5/16	£3.33	Add
018	736-0140	WASH:FLAT:.385 x.62 x.063	£3.59	Add
019	736-0275	WASH:FLAT:.344 x .688 x.065	£3.07	Add
020	736-0300	WASHER	£2.81	Add
021	736-0242	BELL WASHER	£3.72	Add
022	736-3010	WASH:FL:.407X.812X.135:HD	£2.85	Add
023	738-0372B	COLLAR	£5.64	Add
024	741-0708	BRG:FLG:HEX SPLIT .500 ID	£13.90	Add
025	747-1112D	HNDL:DECK:ENGAGE	£62.51	Add
026	747-1286A	ROD-BELT KEEPER	£65.81	Add
027	748-0415B	SPACER	£7.72	Add
028	756-0627D	PUL:IDLR:FLAT 3.5 OD	£27.53	Add
029	756-1208	IDLER PULLEY	£51.15	Add
030	783-0744A	BRKT:ENGAG:STOP	£57.88	Add
031	783-0891B	BRKT:DECK:UP STOP	N/A	POA
032	710-0604A	SCREW	£3.62	Add
033	732-04035	SEAT SPRING	£7.15	Add
034	723-0444	BATTERY STRAP	£24.86	Add
035	738-1020	SCR:SHLDR:.625 x.500:7/16-20	£9.50	Add
036	736-0407	WASHER	£11.84	Add
037	712-0459	LOCK NUT	£4.59	Add
038	783-1031A	PLATE-HITCH	N/A	POA
039	783-0349637	BATTERY TRAY	£34.84	Add
040	725-1426A	SOLENOID	£24.30	Add
041	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
042	736-0222	NO LONGER AVAILABLE	N/A	POA
043	683-0304C	FRAME ASM-LOWER	N/A	POA
044	725-1706A		N/A	POA
045	738-1132	SCR:SHLDR:.250X.150:1/4-20	£6.32	Add
046	712-0271	NUT:SEMS:1/4-20	£3.03	Add
047	712-3087	WING NUT	£3.62	Add
049	710-3180	SCREW HEX CAP	£5.00	Add
050	750-0956	SPACER 13/16	£12.33	Add
051	710-3029	SCRE.HHCS:7/16-20:1.25:GR5 STD	£9.68	Add
052	736-0171	WASHER	£2.93	Add
053	736-0322	FI-WASH	£8.68	Add
054	756-0983B	ENGINE PULLEY	£66.32	Add
055	754-0497	BELT-PTO (42" DECKS)	£47.08	Add
056	783-0653F	BRACKET-STEERING SPT	£105.00	Add
057	711-1239	PIN	£5.00	Add
058	732-1013	COVER-BELT	£19.68	Add
059	710-3025	HHCS:5/16-18:.625:GR5:STD	£3.31	Add
061	710-0347	HEX SCR	£3.72	Add
062	683-0302	FLOW SLIDE ASSY.	£68.47	Add
064	712-0431	NUT	£3.20	Add
066	710-0607	SELF TAP SCREW	£4.71	Add
067	712-3006	NUT	£2.77	Add
068	736-0329	L. WASHER	£3.26	Add
069	710-0642	SCREW-HEX HD TAP 4-20 x 7.5	£3.68	Add
070	736-3039	WASH:FLAT:.406 x 1.5 x .105	£2.00	Add
071	710-0703	SCR:CRG:1/4-20:.75:GR5	£3.07	Add
072	725-04039	SW:INTLK:NO/NC:SCREW MT	£14.30	Add
073	17962	PLT:SW	£4.66	Add
074	710-0224	NO LONGER AVAILABLE	N/A	POA
44A	725-1737	BAT:U1:220 CCA DRY	£121.23	Add
