MTD016233

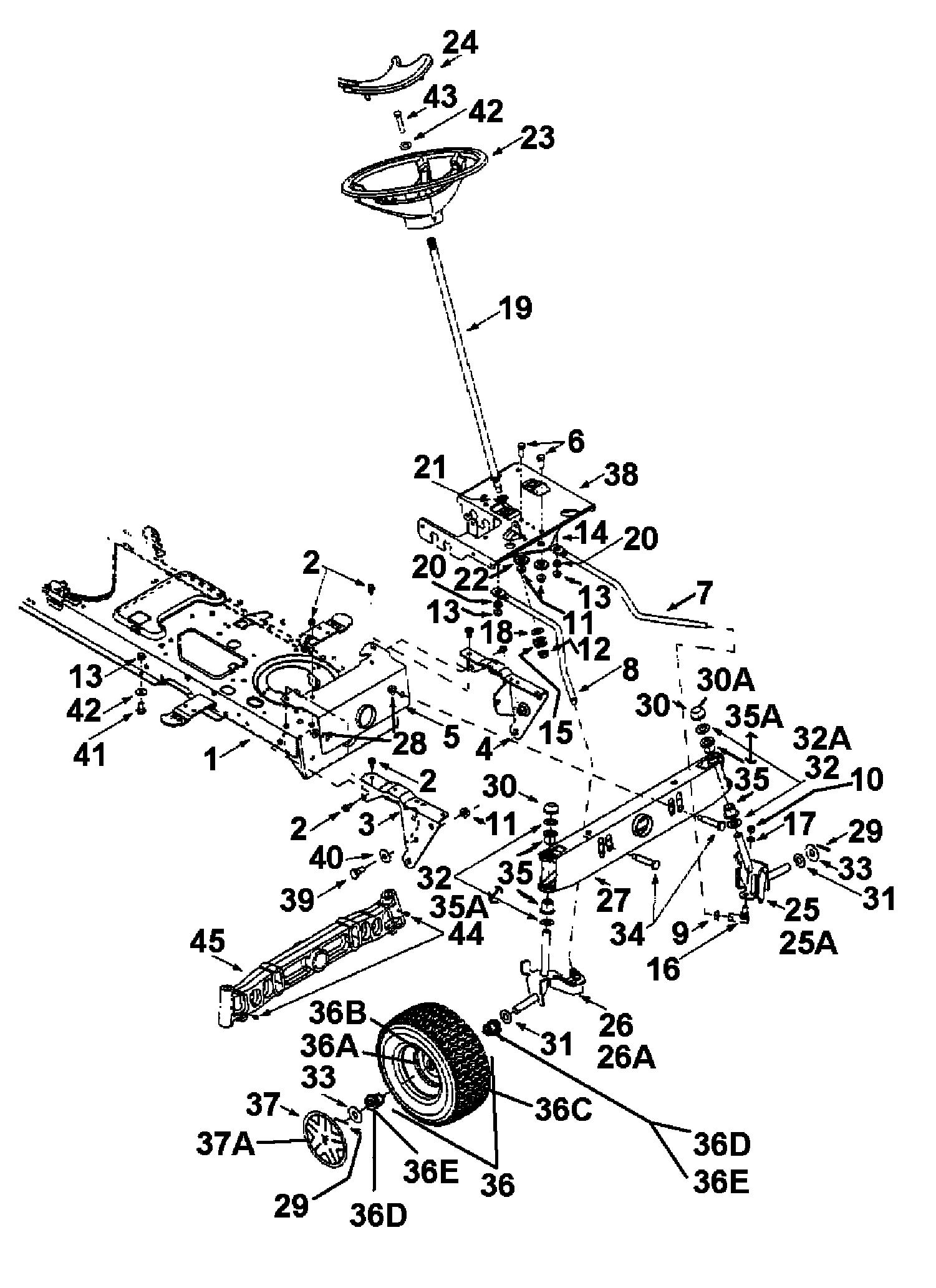

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	683-0263B	FRAME-LOWER ASSEMBLY	N/A	POA
002	710-0604A	SCREW	£3.62	Add
003	783-0726D637	BRKT:PIVOT:SUPT RH 783-0726C	£74.46	Add
004	783-0727	BRACKET-LH PIVOT SUPPORT	N/A	POA
005	783-0728B637	BRKT:PIVOT:BAR 783-0728B	£47.01	Add
006	710-0514	HEX BOLT	£3.81	Add
007	711-1291	ROD:BRACE:LH	N/A	POA
008	711-1292	LINK-DRAG RH	£34.58	Add
009	712-0240	NUT	£3.62	Add
010	712-0241	HEX NUT 3/8-24	£2.79	Add
011	712-0431	NUT	£3.20	Add
012	712-0459	LOCK NUT	£4.59	Add
013	712-3004A	HEX FLANGE NUT	£2.97	Add
014	717-1550F	GEAR:STRG:11/90 RATIO	£104.83	Add
015	717-1554	PINION GEAR	£11.85	Add
016	723-0448A	BALL JOINT ASSY	£24.61	Add
017	736-0169	L. WASHER	£2.89	Add
018	736-3084	WASHER FLAT	£3.77	Add
019	738-1001A	SHAFT-STEERING .625ODX24.25 LG	£108.18	Add
020	741-0475	PLASTIC BUSHING .38 INCH ID	£4.74	Add
021	741-0656A	METAL FLANGE BEARING	£5.76	Add
022	748-0416	bush	£14.81	Add
023	731-1869	WHL:STR:BLACK .625 SPLINE	£90.44	Add
024	731-1904	CAP-STEERINF WHEEL W/SPRIG	£25.20	Add
025	638-0019	AXLE ASSY.LH.750 DIA.	N/A	POA
026	638-0020A	AXLE ASSY.R.H. .625 DIA	£110.73	Add
027	683-0128B637	PIVOT BAR ASSY	£65.51	Add
028	712-0431	NUT	£3.20	Add
029	714-0470	COTTER PIN	£5.07	Add
030	726-0214	PUSH CAP	£5.36	Add
031	736-0162	WASHER:FLAT:.640x1.000x.120	£4.62	Add
032	736-0187	FLAT WASHER	£3.19	Add
033	736-0285	FLAT WASHER	£4.06	Add
034	738-1011A	SHOULDER BOLT	£6.58	Add
035	741-0659	FLANGE BEARING	£5.31	Add
036	634-0105A	WHL:COMPL:15.0x6.0x6.0:PLAS	N/A	POA
037	734-1787A	RADKAPPE GELB 731-1787A	£14.67	Add
038	783-0653F	BRACKET-STEERING SPT	£105.00	Add
039	738-1020	SCR:SHLDR:.625 x.500:7/16-20	£9.50	Add
040	736-0331	BELL WASHER	£3.95	Add
041	738-0140	SHLD SCREW	£6.03	Add
042	736-0242	BELL WASHER	£3.72	Add
043	710-0643	BOLT	£3.85	Add
044	737-3000	FITTING LUBE 3/16 DRIVE TYPE	£3.87	Add
045	710-0138	SCREW-TRUSS MACH	N/A	POA
25A	638-0021	AXLE ASSY.LH.750 DIA.	£124.60	Add
26A	638-0022	AXLE ASSY.RH.750 DIA.	£124.60	Add
30A	726-0341	CAP	£4.89	Add
32A	736-0316	WASHER	£5.97	Add
35A	741-0660A	FLANGE BEARING	£6.36	Add
36A	634-0172	RIM ASM:6.0x4.5:PLS BRG W/OHOL	N/A	POA
36B	734-0255	VALVE - TUBELESS AIR	£7.02	Add
36C	734-1731	TYRE 15x6.00-6 NHS	£123.31	Add
36D	741-0487C	FLANGE BEARING	£6.18	Add
36E	741-0706	BRG:FLNG:.632 ID W/FTG	£8.44	Add
37A	727-0425A	SPRING CLIP	£2.98	Add
