MTD010499

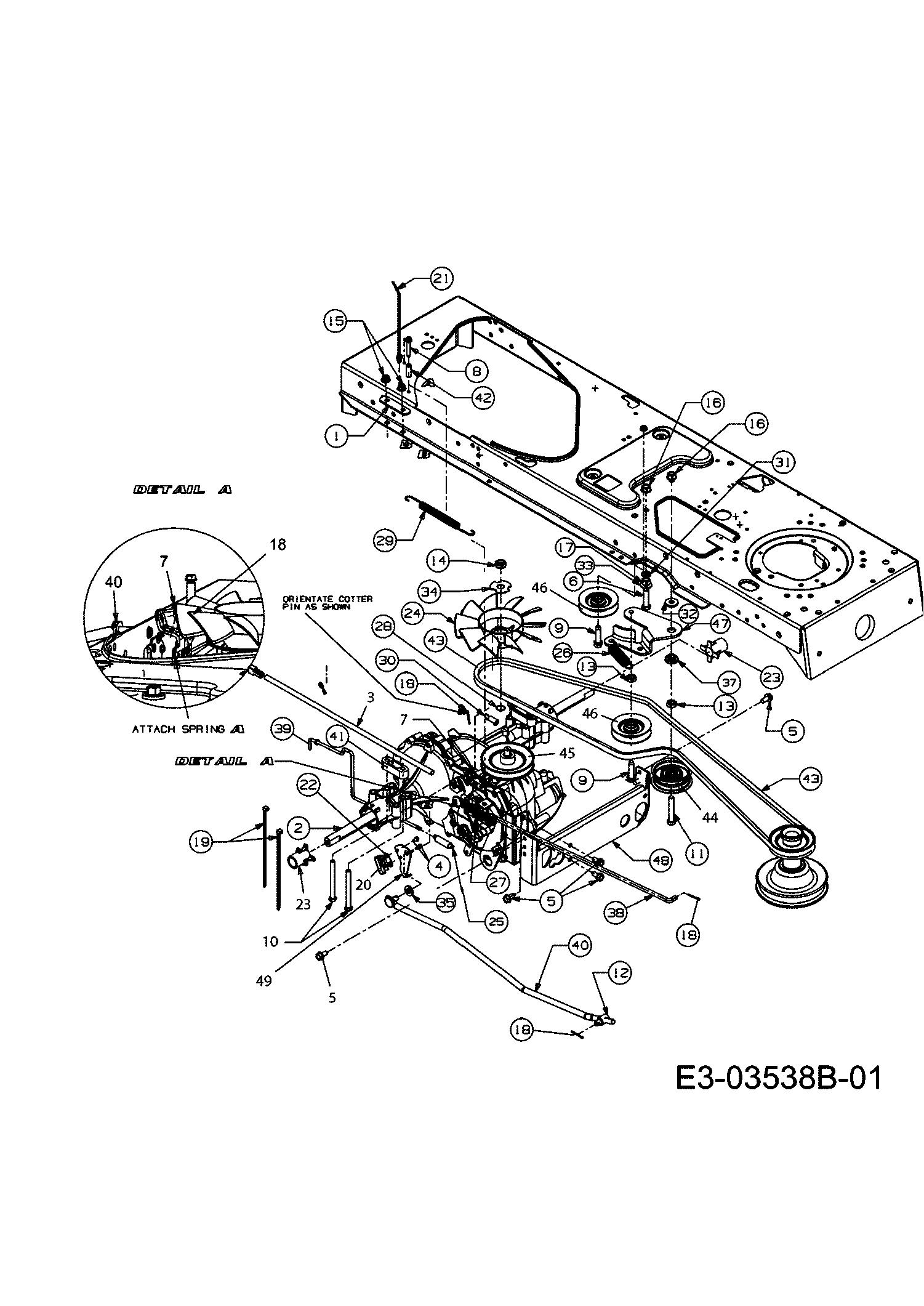

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	17840	TRANSAXLE BRACKET REINFORCE	£14.44	Add
002	618-0319	TRANSMISSION:HYDRO:0510	£1,297.01	Add
003	629-0949B	HARNESS ASM-RT-99	N/A	POA
004	710-0227	SCR:AB:#8-18:0.500:HXINDWH	£3.07	Add
005	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
006	710-0520	SCREW HEX CAP 3/8 (RED)	£3.51	Add
007	710-0653	HEX SCREW, 1/4-20 X 3/8"	£4.22	Add
008	710-0778	HEX WASHER HEAD SCREW	£3.20	Add
009	710-1007	SCREW HEX HD TAP	£4.14	Add
010	710-1266	SCREW HHCS:5/16-18:3.5:GR5:STD	£4.70	Add
011	710-3011	HHCS:3/8-16:2.25:GR5:STD	£7.05	Add
012	711-0832	FERRULE:3/8-24x.375 DIA:HT TRT	£13.94	Add
013	712-0240	NUT	£3.62	Add
014	712-0346	NO LONGER AVAILABLE	N/A	POA
015	712-04063	FLANGED NUT	£4.20	Add
016	712-0431	NUT	£3.20	Add
017	712-3017	NUT:JAM:3/8-16:GR5	£2.97	Add
018	714-0111	COTTER PIN	£3.20	Add
019	725-0157	NO LONGER AVAILABLE	N/A	POA
020	725-1644	SWITCH:SPRING:SHORT	£6.24	Add
021	726-0154	TIE:CABLE:PUSH MOUNT 7.5 LG	£4.80	Add
022	726-0320	INSULATING PLATE	£2.97	Add
023	731-05299	SLV:.765 ID x 1.500 LG	£4.22	Add
024	731-06098	FAN:HYDRO:LT	£21.68	Add
025	732-0209	EXTENSION SPRING	£8.58	Add
026	732-04323B	SSPR:EXTN:.770 DIA x 3.720 LG	£17.58	Add
027	732-0716D	SPRING EXTENSION	£14.42	Add
028	732-0729	CIRCLIP	£2.98	Add
029	732-0994	SPR:EXTN:.500 DIA x 7.0 LG	£14.30	Add
030	732-3118	SPR:EXTN:.375 OD x 1.44 LG	£13.84	Add
031	736-0169	L. WASHER	£2.89	Add
032	736-0258	WASHER:FLAT:.385 X 1.0 X.135	£3.47	Add
033	736-0300	WASHER	£2.81	Add
034	736-04263	WASHER:LOCK:TRANS HYDRO	£5.62	Add
035	736-3010	WASH:FL:.407X.812X.135:HD	£2.85	Add
037	738-0372B	COLLAR	£5.64	Add
038	747-04139	ROD:BRAKE:HYDRO	£40.83	Add
039	747-1149	ROD-HYDRO BYPASS	£28.16	Add
040	747-1151	ROD-HYDRO CONTROL	£50.37	Add
041	748-0334	TRANSAXLE SPACER .68	£6.32	Add
042	750-0566A	SPACER	£7.75	Add
043	754-04165	V-Belt	£107.34	Add
044	756-04224	IDLER PULLEY	£28.15	Add
045	756-04308	PULLEY:INPUT:4.13 DIA	£43.19	Add
046	756-04325	PULLEY	£35.65	Add
047	783-04442	BRKT:IDLR:CENTER DBL	£39.65	Add
048	783-0810B	BRACKET-GAS TANK SUP	N/A	POA
049	783-1019B	BRKT:ACTUATOR:SW LT	£21.46	Add
