MTD009771

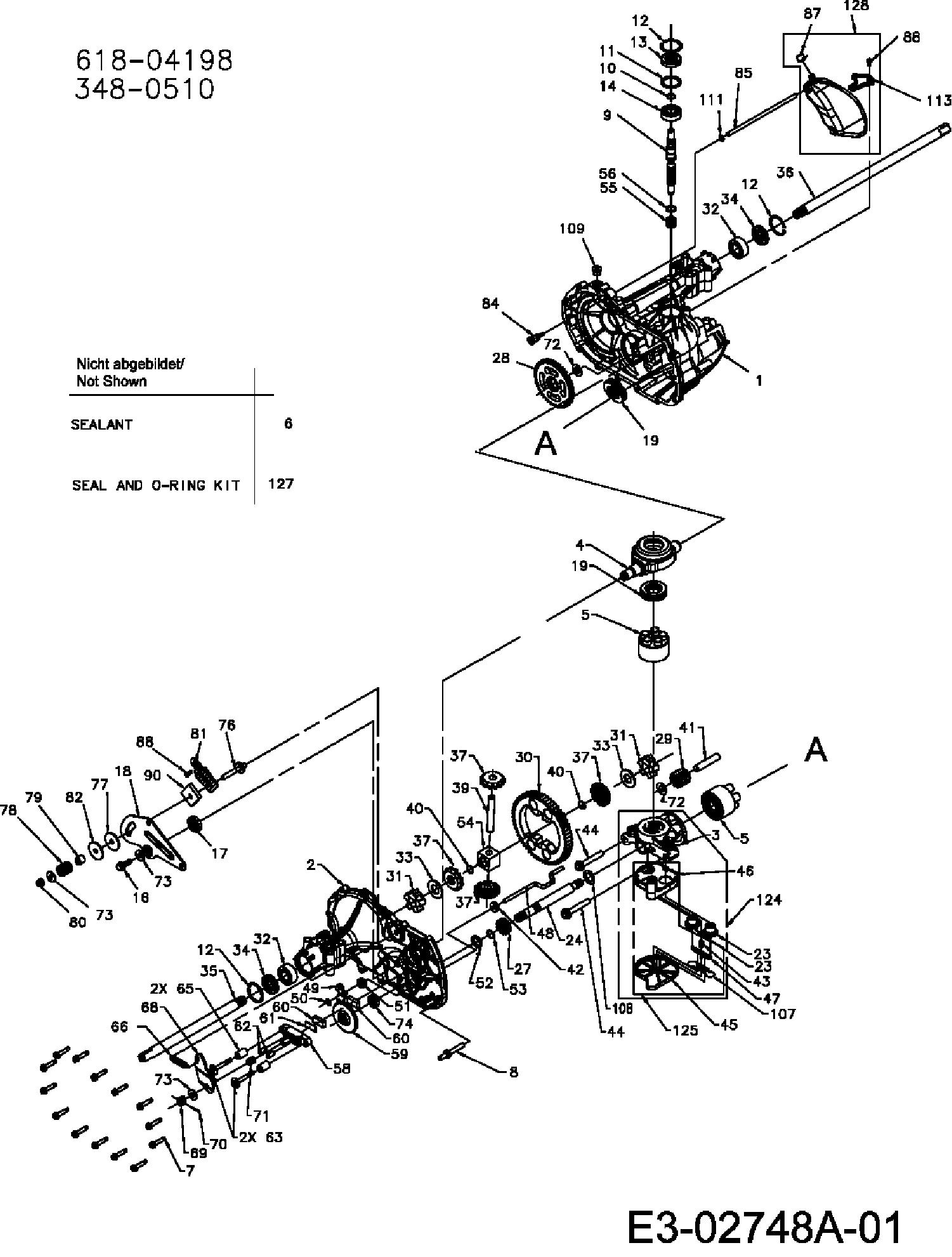

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD009771

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 HG-70467 MAIN HOUSING ASSEMBLY £393.49 Add
002 HG-70483 KIT,SIDE HOUSING N/A POA
003 HG-70477 CENTER SECTION ASSEMBLY £298.77 Add
004 HG-51048 SWASHPLATE,TRUNNION MACHINED £169.66 Add
005 HG-70331 CRANKCASE-COMP £239.21 Add
006 HG-50928 SEALANT 10.5 OZ £146.23 Add
007 HG-51190 HEXFLANGE SCREW 1/4-20X1.25 £8.25 Add
008 HG-51061 STUD 5/16-24.5/8-16 N/A POA
009 HG-51062 SHAFT,INPUT £153.01 Add
010 HG-2000022 Circlip £5.75 Add
011 HG-50951 bush £9.50 Add
012 28.3592.40 RING-SNAP HG-50329 N/A POA
013 HG-51161 SEALING WASHER £34.62 Add
014 HG-50315 SELF-ALIGNING BEARING £44.70 Add
016 HG-51064 SCREW,HEX CAP £6.39 Add
017 HG-51140 SEAL-LIP 18X32X7 DIN 3760 £24.58 Add
018 HG-51204 BRACKET N/A POA
019 HG-50551P THRUST BEARING HG-50551 £54.00 Add
023 HG-51084 CHECK PLUG N/A POA
024 HG-50966 SHAFT-MOTOR £90.73 Add
027 HG-51130 SPROCKET-#60 £16.40 Add
028 HG-51129 Gear £103.44 Add
029 HG-51043 Gear N/A POA
030 HG-51044 Gear N/A POA
031 HG-51088 BEARING SLEEVE £57.14 Add
032 HG-51089 BEARING £55.52 Add
033 HG-44875 washer £6.93 Add
034 HG-51066 SEAL LIP £20.48 Add
035 HG-51079 SHAFT, AXLE RH N/A POA
036 HG-51078 SHAFT, AXLE LH .75 X 16.99 DD £153.71 Add
037 HG-71310 GEAR KIT-BEVEL £152.05 Add
039 HG-50146 AXLE-FR N/A POA
040 HG-44871 RETAINING RING £14.94 Add
041 HG-51083 PIN N/A POA
042 HG-51100 MAGNET RING £26.52 Add
043 HG-51136 SPRING, BYPASS N/A POA
044 HG-50016 Screw £17.99 Add
045 HG-51581 FILTER BOTTOM N/A POA
046 HG-51580 BASE, FILTER £40.10 Add
047 HG-51091 ACTUATOR,BYPASS N/A POA
048 HG-51098 ROD, BYPASS ACTUATOR £62.02 Add
049 HG-51135 ARM BYPASS £19.09 Add
050 HG-51116 Circlip £10.74 Add
051 HG-51081 SEALING WASHER £16.20 Add
052 HG-44371 WASHER. 1.59x1.032x.060 £23.37 Add
053 HG-44145 SNAP RING £5.89 Add
054 HG-51071 BEARING CENTER BLOCK N/A POA
055 HG-2003014 Spring £5.99 Add
056 HG-2003017 washer (OBSOLETE) N/A POA
058 HG-62589 BRAKE YOKE £61.46 Add
059 HG-51072 ROTOR,BRAKE £40.69 Add
060 717-0678 PAD £10.75 Add
061 717-0682 PLATE £12.25 Add
062 741-0343 PIN £9.02 Add
063 HG-51146 Screw N/A POA
065 HG-23711 SPACER £7.88 Add
066 HG-51607 Spring £12.20 Add
068 HG-44094 ARM-BRAKE £34.00 Add
069 712-0335 CASTLE NUT HG-44142 £6.15 Add
070 714-0507 COTTER PIN 3/32 DIA £2.65 Add
071 HG-50919 BRAKE SPRING £9.82 Add
072 HG-50132 washer £5.41 Add
073 736-0371 WASH:THRST:.343 X .880 X .062 £2.71 Add
074 HG-70719 KIT SEAL £39.56 Add
076 HG-50284 STUD 5/16-24 N/A POA
077 HG-51113 WASHER N/A POA
078 HG-50277 Spring N/A POA
079 HG-50278 BUSHING N/A POA
080 HG-50317 NUT-HEX LOCK NUT5/16-24 £17.05 Add
081 HG-51226 WEDGE, FRICTION PACK N/A POA
082 HG-51114 CLIP, WASHER N/A POA
084 HG-51143 COUPLING, 3/4" ID PVC TUBE N/A POA
085 HG-51147 TUBE £16.92 Add
087 HG-51251 CAP, VALVE £17.25 Add
088 HG-50653 Screw £5.99 Add
090 HG-51227 PUCK, INNER WEDGE N/A POA
107 HG-51134 DEFLECTOR N/A POA
108 HG-51069 WASHER,MOTOR SHAFT £11.03 Add
109 HG-9005110-5600 PLUG £20.06 Add
111 HG-51144 SEAL-"O"RING HYDRO TILLER £5.99 Add
113 HG-51179 FRAME-REAR MTG. £10.57 Add
124 HG-70759 70759 £58.62 Add
125 HG-70756 FILTER ASSEMBLY £77.31 Add
127 HG-70463 SEAL KIT £102.53 Add
128 HG-70503 KIT - EXPANSION TANK £69.41 Add
