MTD009710

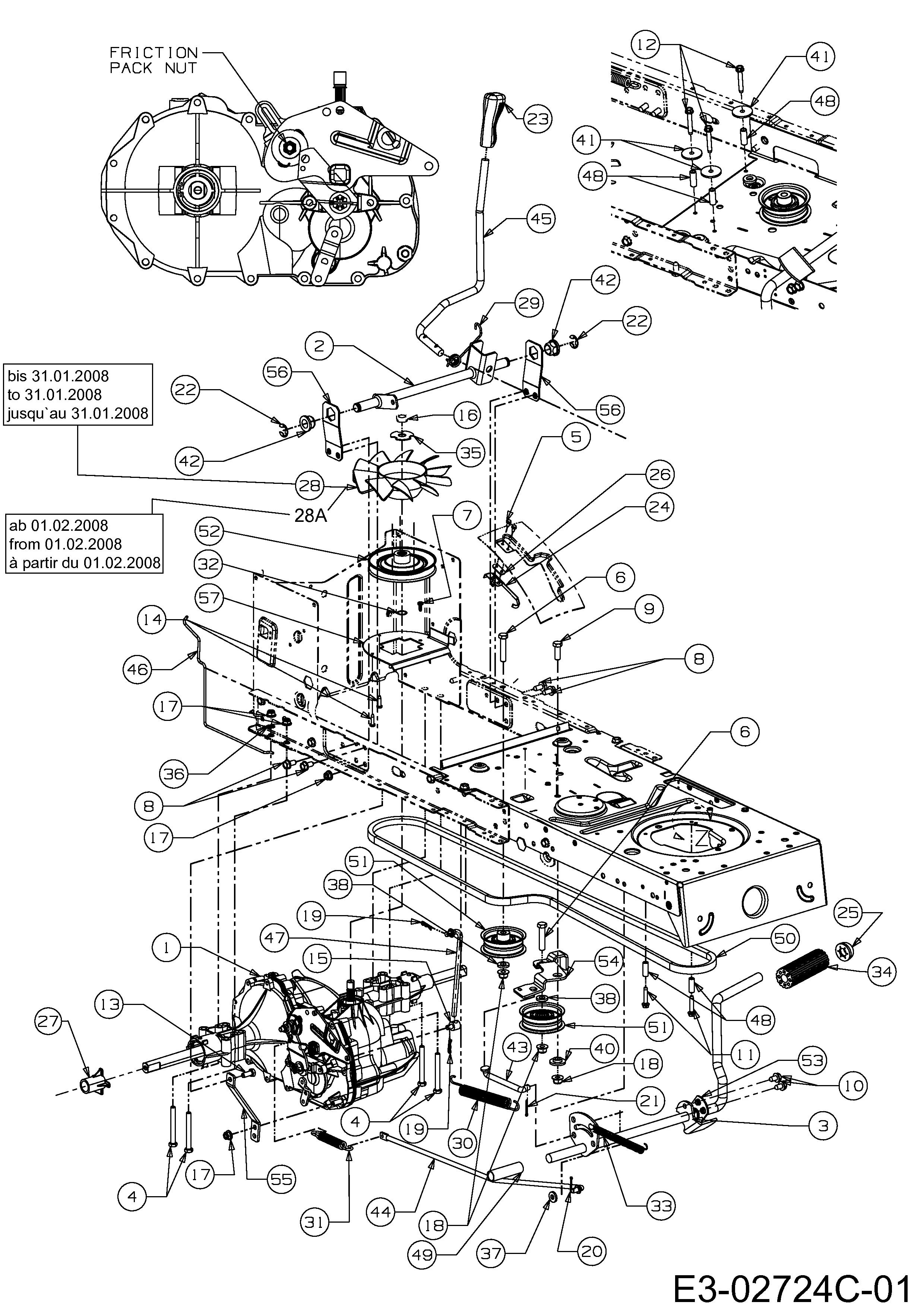

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	618-04198	TRANS ASM:HYDRO:0510:LT-5	£1,250.13	Add
002	647-04038A-Z	647-04038A-Z	N/A	POA
003	647-04054A	CONT ASM:HYDRO:500 LONG	N/A	POA
004	710-0176	HHCS:5/16-18:2.75:GR5:STD	£6.11	Add
005	710-0227	SCR:AB:#8-18:0.500:HXINDWH	£3.07	Add
006	710-0347	HEX SCR	£3.72	Add
007	710-1388	SCREW	£3.23	Add
008	710-0514	HEX BOLT	£3.81	Add
009	710-0604A	SCREW	£3.62	Add
010	710-0604A	SCREW	£3.62	Add
011	710-0809	SCR:TT:1/4-20:1.250:HXINDWSH	£3.42	Add
012	710-1325	SCR:TT:1/4-20:1.625:HXINDWSH	£3.77	Add
013	710-3007	SCR:TT:#12-24:0.375 HXINDWSH	£3.59	Add
014	710-3008	HEX BOLT	£3.03	Add
015	710-3009	NO LONGER AVAILABLE	N/A	POA
016	711-04448	FRL:5/16-24 x .312 DIA	£5.50	Add
017	712-04063	FLANGED NUT	£4.20	Add
018	712-04065	NUT	£4.02	Add
019	712-3066	NUT:HEX:1/2-20 GR5	£3.31	Add
020	714-0104	PIN INTERNAL COTTER	£2.78	Add
021	714-0111	COTTER PIN	£3.20	Add
022	716-0106A	RING E TYPE .625 DIA SHAFT	£3.33	Add
023	720-0311	KNOB	£20.43	Add
024	725-04249	SPRING SWITCH HYDRO	£7.22	Add
025	726-0214	PUSH CAP	£5.36	Add
026	726-0320	INSULATING PLATE	£2.97	Add
027	731-05299	SLV:.765 ID x 1.500 LG	£4.22	Add
028	731-1449A	FAN:BLADE:10	£22.24	Add
029	732-04225	SPR: TORSION:.290 ID X 1.95	£8.27	Add
030	732-04229	SPR:EXT:.75 DIA x 6.02	£14.35	Add
031	732-0716D	SPRING EXTENSION	£14.42	Add
032	732-0729	CIRCLIP	£2.98	Add
033	732-0963	SPRING	£9.72	Add
034	735-0239A	FOOT PAD	£8.75	Add
035	736-0607	WASH:LOCK:5/16 EXT TOOTH	£3.31	Add
036	736-0921	WASHER:LOCK:1/2:REGULAR DUTY	£2.98	Add
037	736-3008	WASH:FL:.344 X.750 X.120	£3.49	Add
038	736-3010	WASH:FL:.407X.812X.135:HD	£2.85	Add
040	738-0347	SPACER	£4.16	Add
041	738-04178	SHOULDER SPACER .375IDx.284THK	£5.00	Add
042	741-0225	HEX FLANGE BEARING	£4.92	Add
043	747-04283A	ROD:DECLUTCHING	£16.37	Add
044	747-04286	ROD:BRAKE:LT-5 HYDRO	£28.75	Add
045	747-04296	HNDL:CONT:HYDRO	£28.53	Add
046	747-04316	NO LONGER AVAILABLE	N/A	POA
047	747-04407A	ROD:CONT:HYDRO	£16.85	Add
048	750-0566A	SPACER	£7.75	Add
049	750-0802	SPCR:.640 ID X .76 OD X2.63 LG	£3.20	Add
050	754-04074A	BELT:V TYP:4L SEC x 78,2 LG	£65.65	Add
051	756-04224	IDLER PULLEY	£28.15	Add
052	756-1166	PULLEY:INPUT 5" DIA	£86.09	Add
053	783-04536B-S	BRKT:PED:SUPT: LT-5	£14.02	Add
054	783-04570A	KEEPR:BELT:IDLR	N/A	POA
055	783-04579A	BRKT:TORQ:0510 HYDRO	N/A	POA
056	783-04585A	BRKT:MT:HYDRO HNDL	N/A	POA
057	783-04600A	BRKT:SUPT:BELT DISENGAGE	N/A	POA
28A	731-06098	FAN:HYDRO:LT	£21.68	Add
