MTD013960

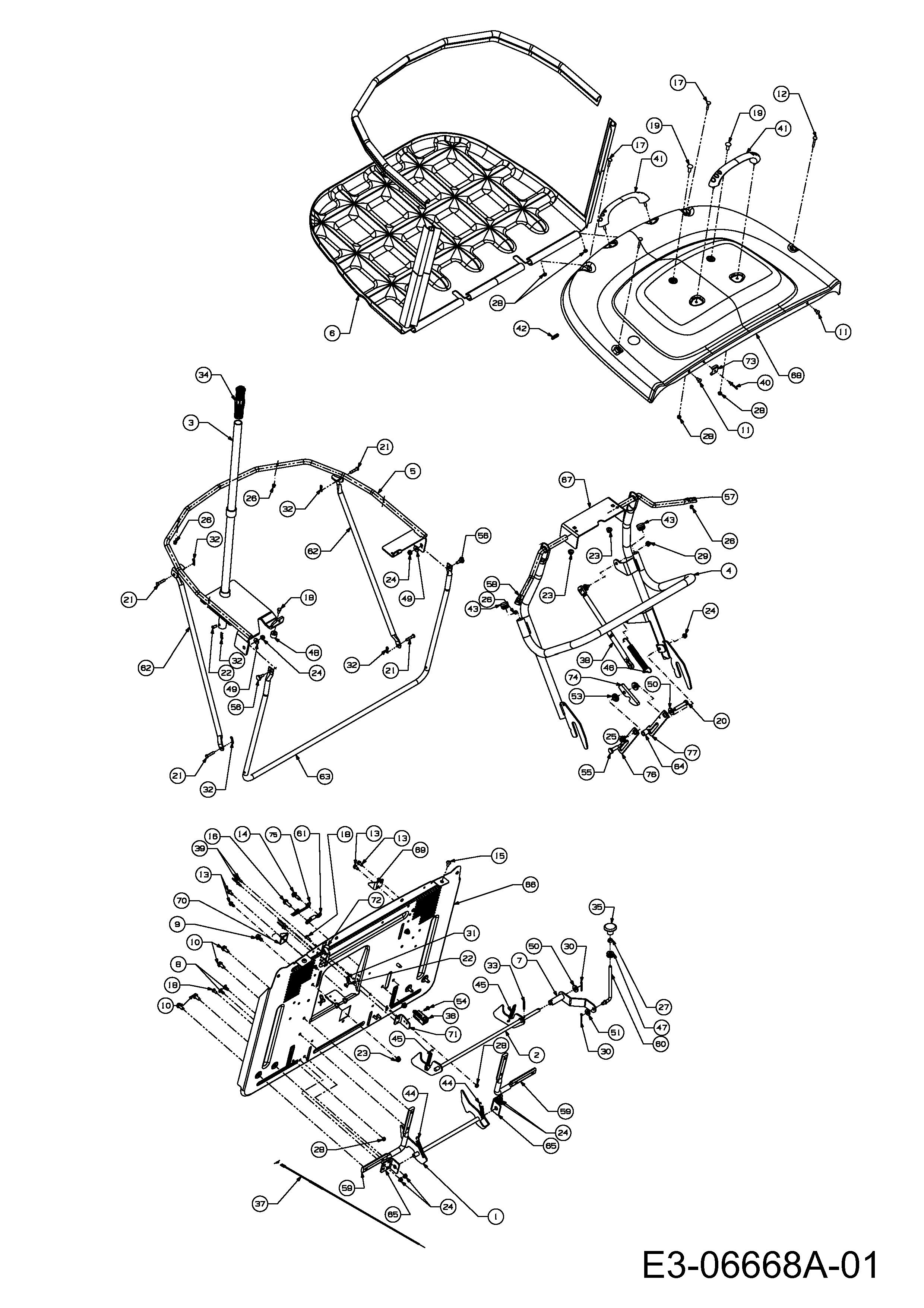

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD013960

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 647-0063B LATCH ASM:BAG 250L/300L £26.69 Add
002 647-04219 LATCH ASM:BAG 250L/350L N/A POA
003 649-0138B N/A POA
004 649-04089 FRM ASM:SUPT:BAG £225.91 Add
005 649-04091 N/A POA
006 664-04149 GRSBG ASM:RR DIS:250L 500S £167.59 Add
007 683-04669 N/A POA
008 710-0134 BOLT £2.57 Add
009 710-04049 SCREW £4.07 Add
010 710-04484 SCR:TT:5/16-18:.750:HXINDWSH £4.43 Add
011 710-05070 SCR:TT:1/4-20:.5:PANTRXI:BLK £3.62 Add
012 710-05172 BOLT:CRG:5mmx40.0 LG £6.58 Add
013 710-0599 HEX TT SCREW 1/4-20 £4.16 Add
014 710-0602 SCREW:TT:5/16-18:1.00:HXINDWSH £5.54 Add
015 710-1017 TAP SCREW £2.52 Add
016 710-1238 SCREW £2.71 Add
017 710-1612 BOLT:CRG:5mm x 30.0 LG £5.01 Add
018 710-1691 HEX. SCREW:M6X12 DIN 933 8.8 £4.60 Add
019 710-3105 BOLT:CRG:5/16-18:.875:GR1 £10.57 Add
020 710-3144 SCREW £2.94 Add
021 711-04138 PIN £3.46 Add
022 711-0701 CLEVIS PIN £4.12 Add
023 712-04063 FLANGED NUT £3.54 Add
024 712-04064 NUT FLGLK 1/4 20 GRF NYLON £5.56 Add
025 712-04065 NUT UTV £3.39 Add
026 712-0642 NUT FLGLK M5 0.8 £2.27 Add
027 712-0690 NUT:HEX:M8-1.25 DIN 934 £2.33 Add
028 712-0691 HEX NUT M6 DIN 985 £1.28 Add
029 712-0692 HEX NUT £2.57 Add
030 714-0115 COTTER PIN £2.89 Add
031 714-0145 R CLIP £2.46 Add
032 714-04033 PIN:COT:INT .072 x.92 LG £2.39 Add
033 715-0120 PIN:ROLL:3/16 DIA x 1.1 LG 715-0150 £8.51 Add
034 720-0204 GRIP:1.0 ID x 4.7 LG £12.31 Add
035 720-04164 KNOB:SHFT £10.90 Add
036 725-04363 SWITCH £15.50 Add
037 725-05260 HARN ASM:500:BAG PRESENT £12.90 Add
038 727-04370 DAMPER £39.08 Add
039 728-0123 POP RIVET 3/16 DIA x.450:STY1 £4.18 Add
040 728-04000 RIV:POP:.188 DIA x .300 L £3.66 Add
041 731-04578 HANDLE £7.85 Add
042 731-051181 EDGE GUARD 731-0511 £31.36 Add
043 731-07972 CAP:TUBE:SUPT 300L/250L BAG £3.51 Add
044 732-0264 EXTENSION SPRING £8.76 Add
045 732-04488 SPRING:EXT:.38 OD x 3.25 LG £19.08 Add
046 732-04855 SPR:EXTN:.67 DIA X 5.50 LG £6.49 Add
047 735-04093 GROM:RUBR:9x22x12 £6.16 Add
048 735-04121 BMPR: £19.30 Add
049 736-3000 WASH:FLAT:.250x.750x.119 £3.57 Add
050 736-3004 FLAT WASHER £2.35 Add
051 736-3008 WASH:FL:.344 X.750 X.120 £4.03 Add
053 738-0372B COLLAR £4.74 Add
054 738-04237A SCR:SHLDR:T:#10-32:.500 £3.41 Add
055 738-0572 SHOULDER BOLT £7.32 Add
056 738-0974 SCR:SHLDR:.375x.380:1/4-20 £7.93 Add
057 747-05380 ROD:PIVOT:LH:BAG:250L £37.43 Add
058 747-05381 ROD:PIVOT:RH:BAG:250L £37.43 Add
059 747-05419 ROD:SUPT:LH:BAG:250L/300L £12.27 Add
060 747-05432 LVR:HANDLE £12.27 Add
061 747-05434 N/A POA
062 749-04729 TUBE:SUPT:CROSS:GRSBG 250/300 N/A POA
063 749-04730 TUBE:FRM:FRT:BAG 250L/300L N/A POA
064 750-05533 SPCR:16mm O.D.:10mm I.D. £5.66 Add
065 783-04623A N/A POA
066 783-06697 PLT:END:RR DIS:500 N/A POA
067 783-06719 BRKT:PIVOT:BAG N/A POA
068 783-06739 CVR:BAG:HT:250L N/A POA
069 783-06795 BRKT:ELB:LHS £9.73 Add
070 783-06796 BRKT:ELB:RHS £9.73 Add
071 783-06812 BRKT:SW:MNT £6.25 Add
072 783-06813 BRKT:SW:STRIKER £8.11 Add
073 783-06876 PLT:WEAR £3.38 Add
074 783-06919 BRKT:HOOK £24.51 Add
075 783-06925 £4.72 Add
076 783-06926 BRKT:GDE:CYL w/DTNT £9.19 Add
077 783-06928 BRKT:GDE:CYL w/DTNT £9.19 Add
