MTD008128

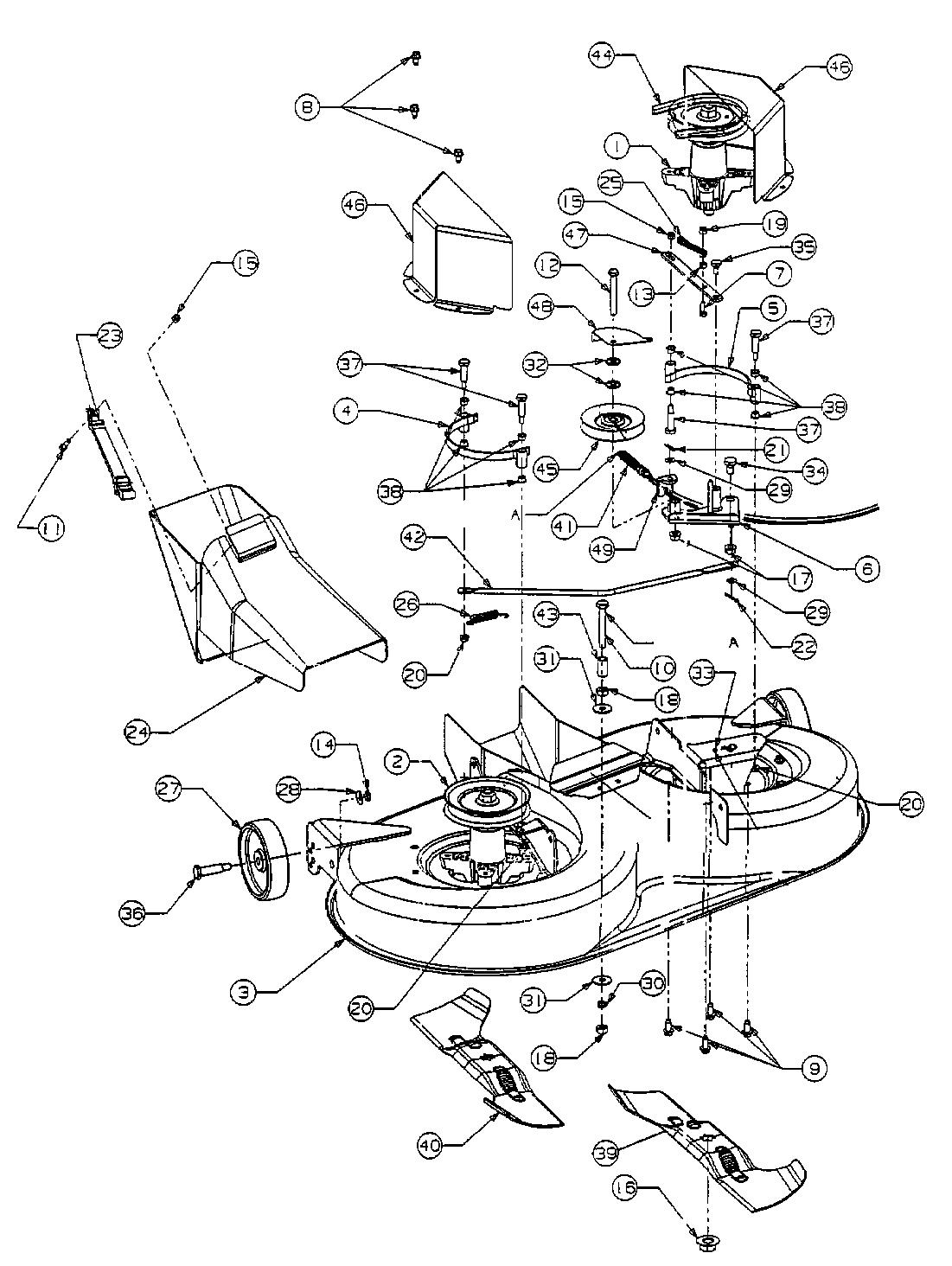

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD008128

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 918-0408A SPDL ASM:PUL:5.17 DIA 618-0408A £131.67 Add
002 918-0409C KNIFE SHAFT ASSEMBLY PULLEY 5.39 DIA £125.17 Add
003 683-0286D637 DECK PAN 92CM POWDER BLACK £391.26 Add
004 683-0426-Z BRAKE ASM:RIGHT £31.45 Add
005 683-0427-Z BRAKE ASM:LEFT £25.19 Add
006 683-0451A-Z V-BELT CLAMP COMPLETE N/A POA
007 710-0412 HHCS:1/4-28:.75:GR5:STD £3.20 Add
008 710-0607 SELF TAP SCREW £3.97 Add
009 710-1260A SCREW £3.37 Add
010 710-1735 SCREW M10x60-8.8 DIN 931 £4.41 Add
011 710-3015 SCREW HEX CAP £2.82 Add
012 710-3022 HEX BOLT UTV £2.82 Add
013 712-0117 NUT:CTR LOCK:1/4-28:GR A £2.76 Add
014 712-0181 HEX JAM L NUT £2.89 Add
015 712-0324 HEX. INS L NUT £1.36 Add
016 712-05134 NUT £2.92 Add
017 712-0431 NUT £2.71 Add
018 712-0635 NUT M10-8 DIN 934 £2.42 Add
019 712-0896 NUT:HEXLK:1/4-28:GR2:NYLON £4.67 Add
020 712-3027 LOCK NUT £2.38 Add
021 714-0104 PIN INTERNAL COTTER £2.36 Add
022 714-0115 COTTER PIN £2.89 Add
023 723-0383 STRAP ASSY-RETAINER £8.32 Add
024 931-0155 FRONT CHUTE £59.23 Add
025 732-0303 SPRING:EXTN:.375 x 3.18 LG £5.69 Add
026 732-0433 EXTENSION SPRING £9.36 Add
027 734-0973 WHEEL DECK 5in. DIA £9.66 Add
028 736-0105 BELL WASHER £2.82 Add
029 736-0204 F.I. WASHER £3.04 Add
030 736-0686 LOCK WASHER B10 DIN 127 N/A POA
031 736-0702 WASH:FLAT:10.5IDX30OD:DIN 9021 £2.42 Add
032 736-3072 WASH:FLAT:.38 x.93 x.110:HT £3.51 Add
034 738-0183 SCREW-SHLD .500X.215" (OBSOLETE) (OBSOLETE) N/A POA
035 738-0255 BOLT SHOULDER £5.54 Add
036 738-0373 AXLE BOLT £5.74 Add
037 738-0572 SHOULDER BOLT £7.32 Add
038 741-3073 BEARING, HEX FLANGE £4.84 Add
039 742-0673 BLADE LEFT HAND £28.45 Add
040 742-0672 BLADE R/H £28.45 Add
041 746-1123 CABLE SET WITH BRACKET £52.90 Add
042 747-1230 BRAKE BAR N/A POA
043 750-1257 SPCR:.630x.440x1.09 LG 750-1287 N/A POA
044 754-0479 BELT £83.88 Add
045 756-0487 PULLEY £31.04 Add
046 783-0864637 BELT GUARD £30.77 Add
047 783-1086A637 LINK:BRAKE £11.92 Add
048 783-1087637 GUARD:BELT 783-1087 £8.48 Add
049 783-1289 KABELHALTER £9.60 Add
