MTD009247

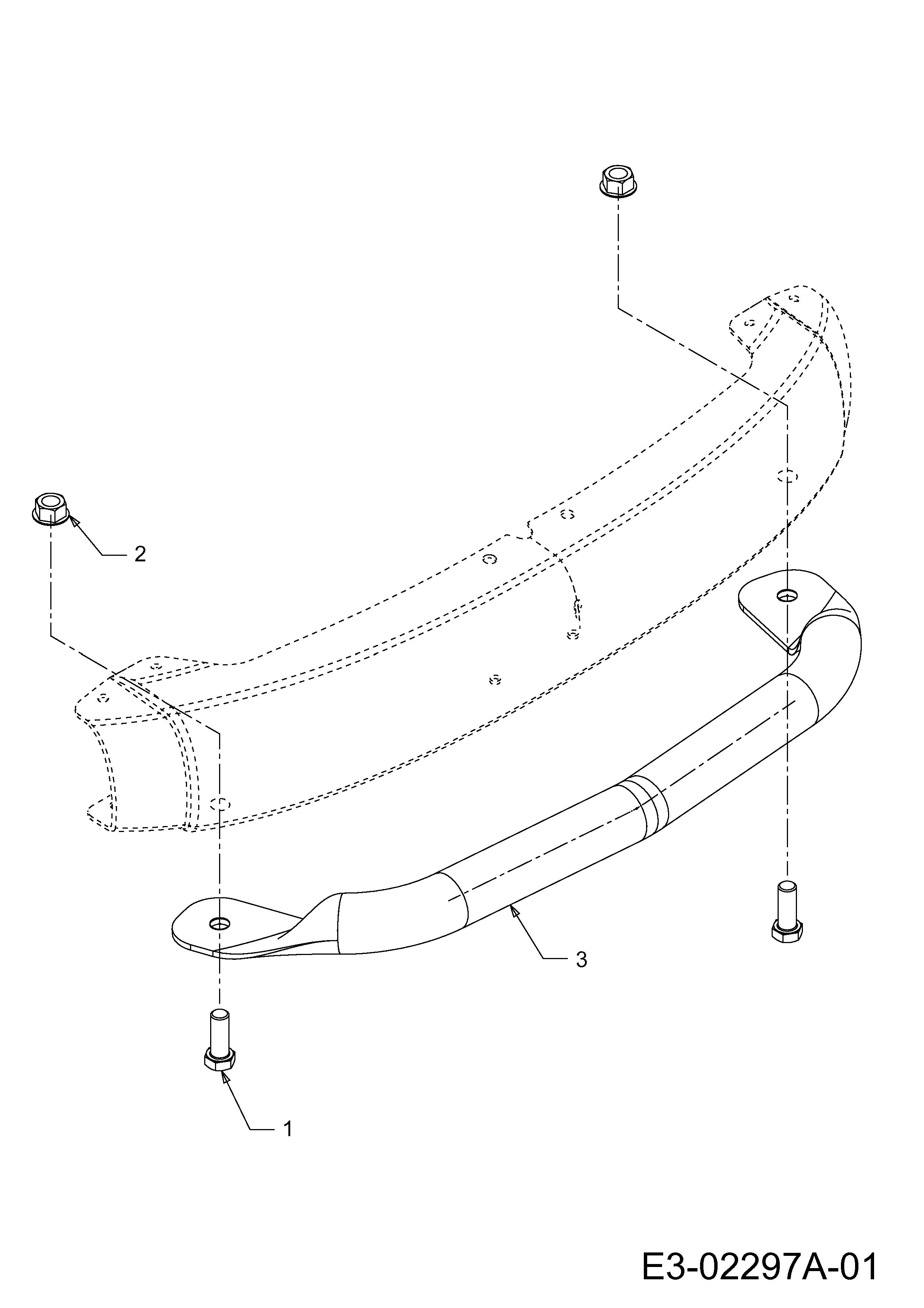

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD009247

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 710-0514 HEX BOLT £3.63 Add
002 712-0431 NUT £3.05 Add
003 749-1099-0637 TUBE:BMPR:FRT 749-1099 £66.04 Add
