MTD009234

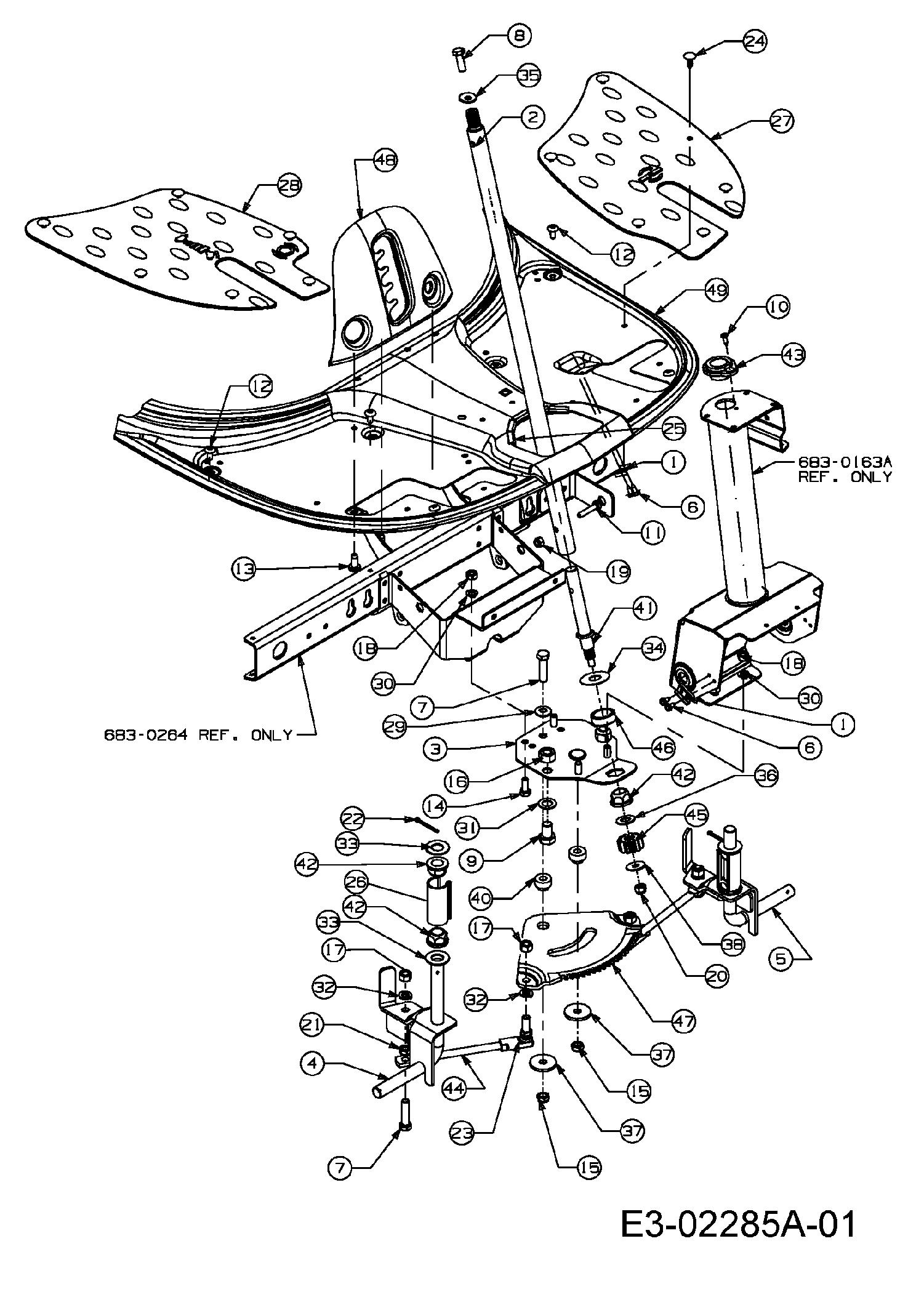

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD009234

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 17962 PLT:SW £4.62 Add
002 650-0007 TUBE ASM:STRG:.88 x 24.36 LG £46.15 Add
003 683-0033A STEERING SUPPORT BRACKET ASSY (RED) £29.32 Add
004 683-0144B AXLE ASM:FRONT R.H. N/A POA
005 683-0145B AXLE ASM:FRT L.H. N/A POA
006 710-0224 SCR:AB:#10-16:0.500:HXINDWSH N/A POA
007 710-0459A TIE ROD BOLT £3.07 Add
008 710-0643 BOLT £3.25 Add
009 710-0689 HEX.SCREW HHCS:1/2-13:.75NYLON £6.25 Add
010 710-0837 OVAL SUNK SCREW £2.96 Add
011 710-0958 HHCS:1/4-20:1.25:GR5:SPEC N/A POA
012 710-1017 TAP SCREW £2.52 Add
013 710-1611B SCREW SELF TAP £4.94 Add
014 710-3008 HEX BOLT £2.57 Add
015 712-0116 HEX NUT £3.12 Add
016 712-0206 NUT £2.89 Add
017 712-0241 HEX NUT 3/8-24 £2.38 Add
018 712-3010 NUT 5/16 x 18 £2.35 Add
019 712-0324 HEX. INS L NUT £1.36 Add
020 712-0411 NUT £2.28 Add
021 712-0711 NUT £2.59 Add
022 714-0470 COTTER PIN £2.50 Add
023 723-0156 BALL JOINT 3/8-24 £19.34 Add
024 726-3046 MOUNTING CLIP:.250 DIA £2.94 Add
025 731-051181 EDGE GUARD 731-0511 £31.36 Add
026 731-1649 CAPAXLE CAP £2.68 Add
027 735-0265A PAD:FLOOR:LH £39.79 Add
028 735-0266A PAD:FLOOR:RH £39.79 Add
029 736-0105 BELL WASHER £2.82 Add
030 736-0119 LOCK WASHER 5/16 £2.81 Add
031 736-0160 WASH:FLAT:.530x.930x.050 £2.95 Add
032 736-0169 L. WASHER £2.45 Add
033 736-0187 FLAT WASHER £2.70 Add
034 736-0196 WASHER:FLAT:.628 x 1.56 x 0.36 £3.60 Add
035 736-0231 WASHER FLAT £2.82 Add
036 736-0272 WASHER:FL:.510 X 1.000 X .060 £2.67 Add
037 736-0320 WASH:FLAT:.380 x.1.380 x.125 £5.54 Add
038 736-3078 WASH:FLAT:.344 x 1.00 x 063:HD £4.18 Add
040 738-0541 SPCR:STRG:SHLD £5.26 Add
041 738-3089A ADAPTER STEERING COLUMN £59.66 Add
042 741-0225 HEX FLANGE BEARING £4.14 Add
043 741-0356 BRG:STRG COL .890 ID x 1.36 OD £4.78 Add
044 747-0955 TIE ROD £14.30 Add
045 748-0290 PINION £10.68 Add
046 750-0532 SPACER £4.08 Add
047 783-0411 STEERING GEAR SEGMENT £76.59 Add
048 783-04324 PLT:LFT N/A POA
049 783-0565C CVR:FRM:UPR N/A POA
