MTD009239

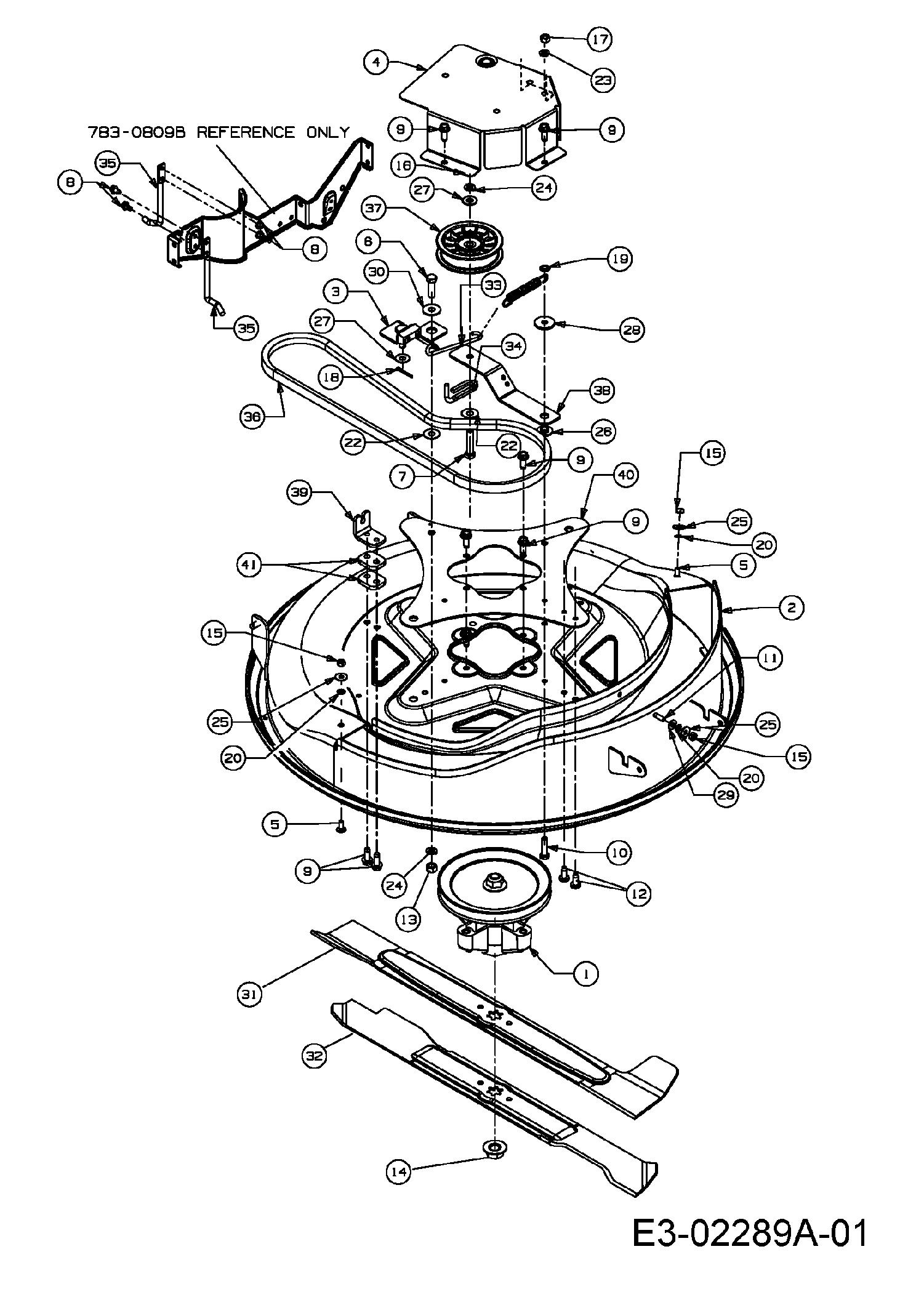

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD009239

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 918-0250 SPDL ASM:PUL:7.0 DIA 618-0250 £182.32 Add
002 683-0150E DECK ASM: 27.5" N/A POA
003 683-0159637 BRAKE BRACKET ASSY BLACK (OBSOLETE) N/A POA
004 683-0173 CVR ASM:BELT:DECK £38.97 Add
005 710-0134 BOLT £2.57 Add
006 710-0191 HEX BOLT (RED) £5.98 Add
007 710-0347 HEX SCR £3.14 Add
008 710-0599 HEX TT SCREW 1/4-20 £4.16 Add
009 710-0650 SCREW £2.78 Add
010 710-0672 HHCS:5/16-24:1.25:GR5:STD £3.36 Add
011 710-0932 SCR:CRG:1/4-20:1.00:GR1 £7.07 Add
012 710-1611B SCREW SELF TAP £4.94 Add
013 712-0241 HEX NUT 3/8-24 £2.38 Add
014 712-05134 NUT £2.92 Add
015 712-3006 NUT £2.35 Add
016 712-3017 NUT:JAM:3/8-16:GR5 £2.52 Add
017 712-3057 NUT 5/16-24 £2.35 Add
018 714-0115 COTTER PIN £2.89 Add
019 726-0201 SPEED NUT £2.61 Add
020 726-0233 NUT:PUSH:.25 ID X .50 OD £4.37 Add
021 732-0429A SPRING EXTENSION £7.31 Add
022 736-0101 WASH:FLAT:.406 X 1.00 X .030 £3.93 Add
023 736-0119 LOCK WASHER 5/16 £2.81 Add
024 736-0169 L. WASHER £2.45 Add
025 736-0173 WASH:FL:.28ID:.74OD:.063 £3.57 Add
026 736-0289 Washer £4.75 Add
027 736-0300 WASHER £2.39 Add
028 736-0343 WASHER-5/16 x 1.25 £3.84 Add
029 736-3020 WASH:FLAT:.271 X.630 X.065 £2.53 Add
030 738-0968 SPACER £9.86 Add
031 742-0578A BLADE 27.6 LG STAR BAGGING (OBSOLETE) £46.61 Add
032 742-0651 MULCHING BLADE BEETLE £34.69 Add
033 747-0957 LINK ROD £17.69 Add
034 747-0972 BELT KEEPER £49.73 Add
035 747-1172A KEEPR:BELT N/A POA
036 754-0754 V BELT £37.79 Add
037 756-0627D PUL:IDLR:FLAT 3.5 OD £22.97 Add
038 783-0463A637 BRKT:IDLER:DECK 783-0463 £19.84 Add
039 783-0529 CABLE BRACKET £18.95 Add
040 783-0569B PLT:DECK N/A POA
041 783-0594637 PLT:DECK:CBL 783-0594 (OBSOLETE) N/A POA
