MTD016610

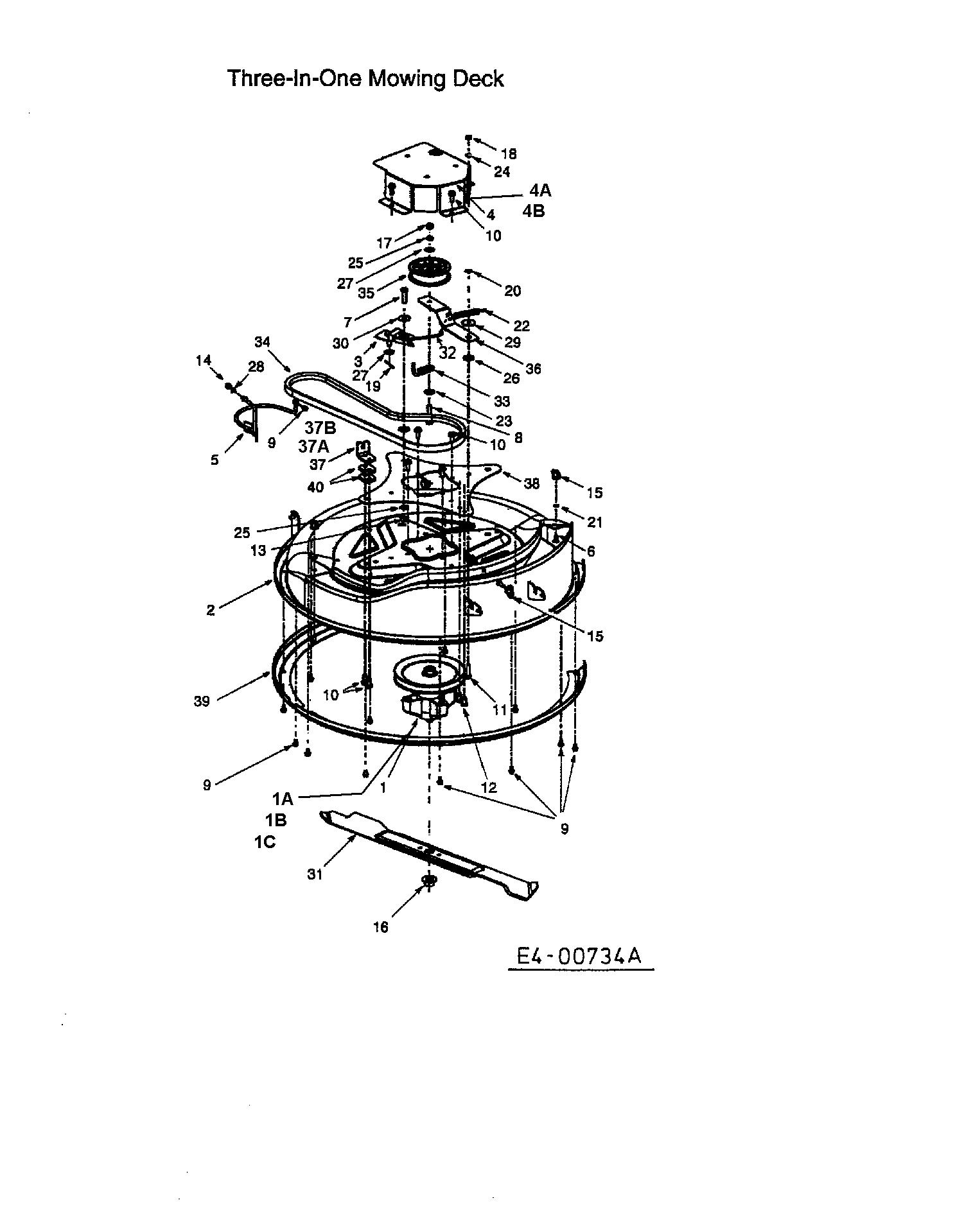

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD016610

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 918-0250 SPDL ASM:PUL:7.0 DIA 618-0250 £122.86 Add
002 683-0150E637 DECK ASM:27.5" 683-0150A £278.45 Add
003 683-0159637 BRAKE BRACKET ASSY BLACK (OBSOLETE) N/A POA
004 683-0173637 BELT COVER ASM. £44.02 Add
005 747-1172A637 KEEPER-BELT 683-0184 £35.93 Add
006 710-0134 BOLT £2.57 Add
007 710-0191 HEX BOLT (RED) £5.98 Add
008 710-0347 HEX SCR £3.14 Add
009 710-0599 HEX TT SCREW 1/4-20 £4.16 Add
010 710-0650 SCREW £2.78 Add
011 710-0672 HHCS:5/16-24:1.25:GR5:STD £3.36 Add
012 710-1611 SCR:TT:5/16-18:.75:PANPHI N/A POA
013 712-0241 HEX NUT 3/8-24 £2.38 Add
014 712-0287 NUT HEX £2.59 Add
015 712-0397A WING NUT £3.79 Add
016 712-05134 NUT £2.92 Add
017 712-3017 NUT:JAM:3/8-16:GR5 £2.49 Add
018 712-3057 NUT 5/16-24 £2.35 Add
019 714-0470 COTTER PIN £2.50 Add
01A 738-0933 SPINDLE SHAFT £35.17 Add
01B 741-0919B BALL BEARING £23.93 Add
01C 750-1000 SPACER £10.16 Add
020 726-0201 SPEED NUT £2.02 Add
021 726-0233 NUT:PUSH:.25 ID X .50 OD £4.37 Add
022 732-0429A SPRING EXTENSION £7.31 Add
023 736-0101 WASH:FLAT:.406 X 1.00 X .030 £3.93 Add
024 736-0119 LOCK WASHER 5/16 £2.81 Add
025 736-0169 L. WASHER £2.45 Add
026 736-0289 Washer £4.75 Add
027 736-0300 WASHER £2.39 Add
028 736-0329 L. WASHER £1.28 Add
029 736-0343 WASHER-5/16 x 1.25 £3.84 Add
030 738-0968 SPACER £9.86 Add
031 742-0651 MULCHING BLADE BEETLE £34.69 Add
032 747-0957 LINK ROD £17.69 Add
033 747-0972 BELT KEEPER £49.73 Add
034 754-0754 V BELT £36.38 Add
035 756-0627D PUL:IDLR:FLAT 3.5 OD £22.97 Add
036 783-0463A637 BRKT:IDLER:DECK 783-0463 £19.84 Add
037 783-0529637 783-0529 / SCHWARZ LACKIERT £18.43 Add
038 783-0569A Ground plate £53.38 Add
039 783-0574 SKIRT:DECK N/A POA
040 783-0594637 PLT:DECK:CBL 783-0594 £4.59 Add
04A 683-0173650 683-0173 / RED METALLIC LACKIE £37.66 Add
04B 683-0173665 683-0173 / YM GREEN LACKIERT £44.65 Add
37A 783-0529637 783-0529 / SCHWARZ LACKIERT £18.43 Add
37B 783-0529665 783-0529 / YM GREEN LACKIERT £18.43 Add
