MTD016597

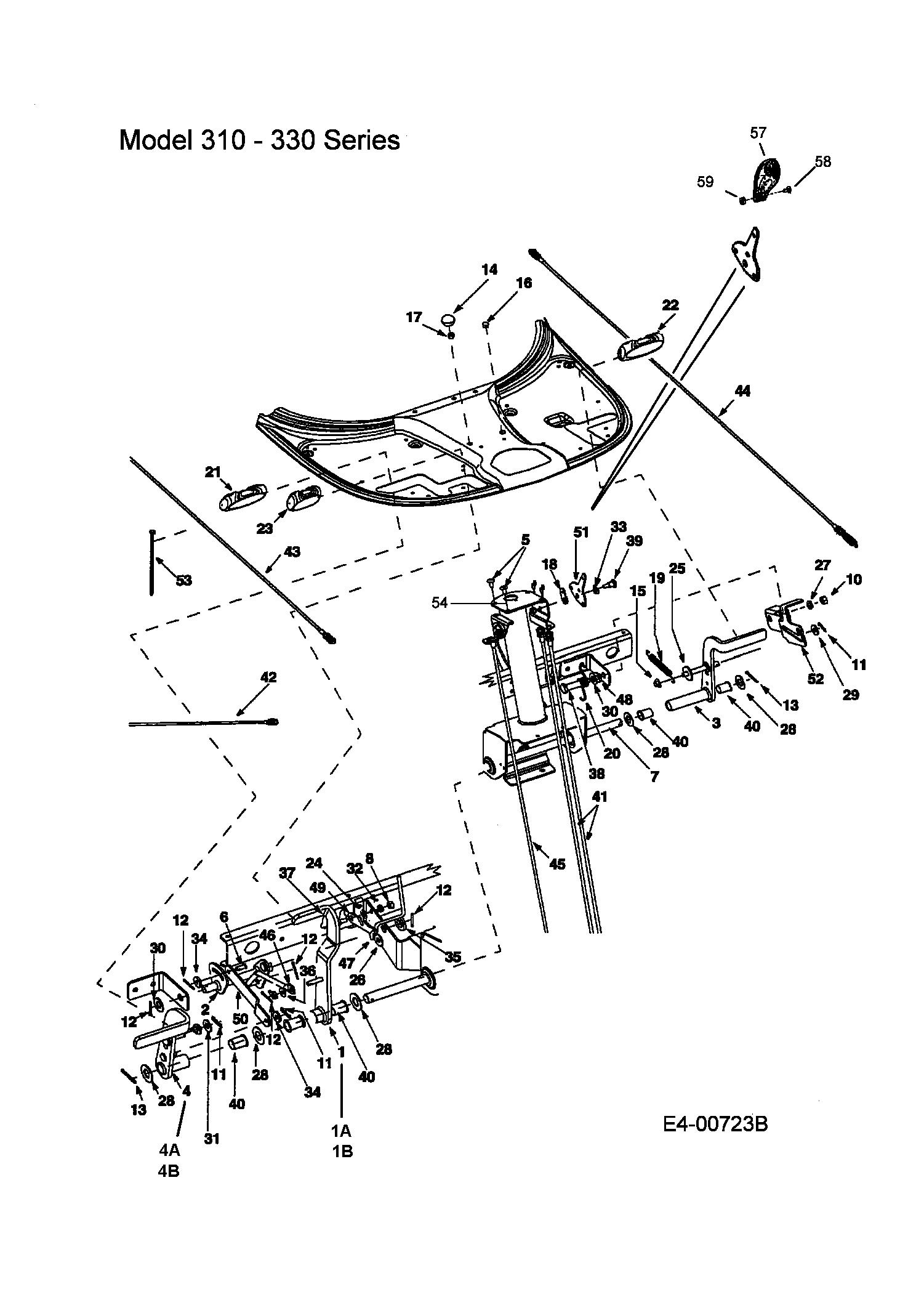

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD016597

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 683-0155A637 PLATE-ASSY. MOUNTING £73.80 Add
002 683-0161637 SHAFT ASSY-PEDAL 683-0161 N/A POA
003 683-0275A637 PEDAL DECK ASSEMBLY 683-0275A N/A POA
004 683-0310A637 SCHWEIßTEIL / SCHWARZ LACKIERT N/A POA
005 710-1017 TAP SCREW £2.52 Add
006 711-0701 CLEVIS PIN £4.12 Add
007 711-1156 SHFT:.623 DIA x 16.082 LG £47.59 Add
008 712-0287 NUT HEX £2.59 Add
009 712-0324 HEX. INS L NUT £1.36 Add
010 712-3017 NUT:JAM:3/8-16:GR5 £2.49 Add
011 714-0104 PIN INTERNAL COTTER £2.36 Add
012 714-0111 COTTER PIN £2.71 Add
013 714-0470 COTTER PIN £2.50 Add
014 720-0166 KNOB:BALL:1.06 DIA £5.18 Add
015 726-0100 PUSH NUT 3/8 (RED) £2.75 Add
016 726-0450 PLUG CAP £3.41 Add
017 731-0405 BUSH:SNAP:1/4" ID £2.64 Add
018 731-1913 LVR:STOP £3.43 Add
019 732-0815A SPRING £13.14 Add
01A 683-0155A650 PLATE-ASSY. MOUNTING £73.80 Add
01B 683-0155A665 PLATE-ASSY. MOUNTING £73.80 Add
020 732-0865 TORS. SPRING.58, Ø.105 MUSIC £11.92 Add
021 735-0261 DRIVE PAD £32.28 Add
022 735-0262 DECK PAD £23.94 Add
023 735-0263 BRAKE PAD £41.47 Add
024 736-0117 WASH:FLAT:.385 x.620 x.033 £2.79 Add
025 736-0133 WASH:FLAT:.411 X 1.25 X .100 £3.51 Add
026 736-0159 WASH .349 ID X .879 OD X .063 £3.89 Add
027 736-0169 L. WASHER £2.45 Add
028 736-0187 FLAT WASHER £2.70 Add
029 736-0300 WASHER £2.39 Add
030 736-0272 WASHER:FL:.510 X 1.000 X .060 £2.95 Add
031 736-0300 WASHER £2.39 Add
032 736-0329 L. WASHER £1.28 Add
033 736-0608 WASHER:SPR:.45 x.74 x.035 £18.20 Add
034 736-3000 WASH:FLAT:.250x.750x.119 £3.57 Add
035 736-3019 WASHER FLAT £4.52 Add
036 736-3020 WASH:FLAT:.271 x.630 x.065 £3.27 Add
037 738-0255 BOLT SHOULDER £5.54 Add
038 738-0373 AXLE BOLT £5.74 Add
039 738-0974 SCR:SHLDR:.375x.380:1/4-20 £7.93 Add
040 741-0591 FLANGE BEARING £2.90 Add
041 746-0935A SHIFT CABLE (SINGLE) £46.88 Add
042 746-0936 VARIABLE DRIVE CABLE £61.48 Add
043 746-0937 BRAKE CABLE 52.0 LG £66.54 Add
044 746-0940 DECK CABLE £43.10 Add
045 746-0964 TROTTLE CHOKE CABLE £58.25 Add
046 747-0963A ROD:BRAKE:5.87 LG £39.04 Add
047 747-0964 ROD-BRAKE £23.82 Add
048 750-0736 SPACER .383IDx.50OD x.18LG £2.75 Add
049 783-0473637 LEVER, PARK BRAKE ENGAGEMENT 783-0473 N/A POA
04A 683-0310A650 SCHWEIßTEIL / RED METALLIC LAC N/A POA
04B 683-0310A665 SCHWEIßTEIL / YM GREEN LACKIER N/A POA
050 783-0525637 VARIABLE PEDAL LINK 783-0525 N/A POA
051 783-0593A LVR:SHFT £6.12 Add
052 783-0794 BRKT:PED:LOCK OUT N/A POA
053 725-0157 Nylon Tie 726-0178 £1.54 Add
054 683-0163A BRKT ASM:STRG:SUPPORT N/A POA
057 731-1857 GRIP £17.41 Add
058 710-3217 SCR:MACH:#8-32:0.375:TRUSPHI £3.12 Add
059 712-0142 NUT:HEX:#8-32:GRA £2.98 Add
