MTD007392

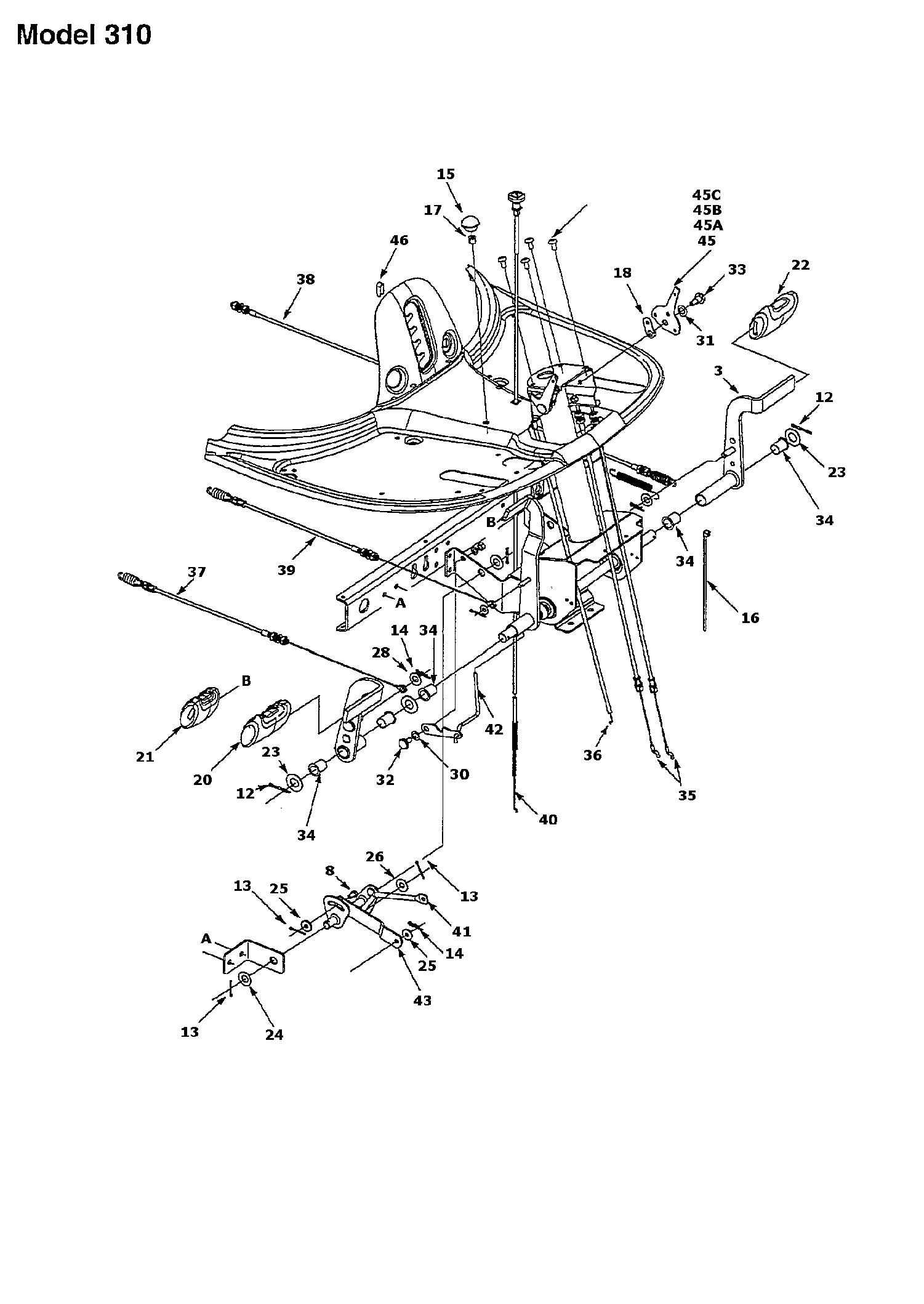

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	683-0155	BRAKE PEDAL	£84.66	Add
002	683-0156	VARIABLE PEDAL ASSY.	£92.09	Add
003	683-0275	PED ASM:DECK 683-0158	£94.45	Add
004	683-0161637	SHAFT ASSY-PEDAL 683-0161	£62.70	Add
005	683-0180	BRKT ASM:SHFT COLMN	£19.14	Add
006	710-1017	TAP SCREW	£2.97	Add
007	711-1156	SHFT:.623 DIA x 16.082 LG	£53.75	Add
008	711-0701	CLEVIS PIN	£4.89	Add
009	712-0287	NUT HEX	£3.31	Add
010	712-0324	HEX. INS L NUT	£3.69	Add
011	712-0241	HEX NUT 3/8-24	£2.79	Add
012	714-0470	COTTER PIN	£5.07	Add
013	714-0111	COTTER PIN	£3.20	Add
014	714-0104	PIN INTERNAL COTTER	£2.78	Add
015	720-0166	KNOB:BALL:1.06 DIA	£6.30	Add
016	725-0157	NO LONGER AVAILABLE	N/A	POA
017	731-0405	BUSH:SNAP:1/4" ID	£3.20	Add
018	731-1913	LVR:STOP	£3.59	Add
019	732-0815	NO LONGER AVAILABLE	N/A	POA
020	735-0261	DRIVE PAD	£36.75	Add
021	735-0263	BRAKE PAD (OBSOLETE) (OBSOLETE)	N/A
022	735-0262	DECK PAD	£28.71	Add
023	736-0187	FLAT WASHER	£3.19	Add
024	736-0272	WASHER:FL:.510 X 1.000 X .060	£3.16	Add
025	736-3000	WASH:FLAT:.250x.750x.119	£4.13	Add
026	736-0159	WASH .349 ID X .879 OD X .063	£3.59	Add
027	736-0329	L. WASHER	£3.26	Add
028	736-0300	WASHER	£2.81	Add
029	736-3020	WASH:FLAT:.271 X.630 X.065	£2.98	Add
030	736-0117	WASH:FLAT:.385 x.620 x.033	£3.31	Add
031	736-0608	WASHER:SPR:.45 x.74 x.035	£12.24	Add
032	738-0255	BOLT SHOULDER	£6.59	Add
033	738-0974	SCR:SHLDR:.375x.380:1/4-20	£9.24	Add
034	741-0591	FLANGE BEARING	£3.44	Add
035	746-0935A	SHIFT CABLE (SINGLE)	£56.26	Add
036	746-0942	CBL:THROT:67.0 LG	£64.79	Add
037	746-0936	VARIABLE DRIVE CABLE	£73.79	Add
038	746-0940	DECK CABLE	£51.72	Add
039	746-0937	BRAKE CABLE 52.0 LG	£76.15	Add
040	746-0941	NO LONGER AVAILABLE	N/A	POA
041	747-0963	ROD-BRAKE	£29.41	Add
042	747-0964	ROD-BRAKE	£26.21	Add
043	783-0525637	VARIABLE PEDAL LINK 783-0525	£9.63	Add
044	783-0473637	LEVER, PARK BRAKE ENGAGEMENT 783-0473	£25.42	Add
045	783-0593A	LVR:SHFT	£9.56	Add
046	17782	CHOKE CABLE RETAINER CLIP	£13.39	Add
