MTD006578

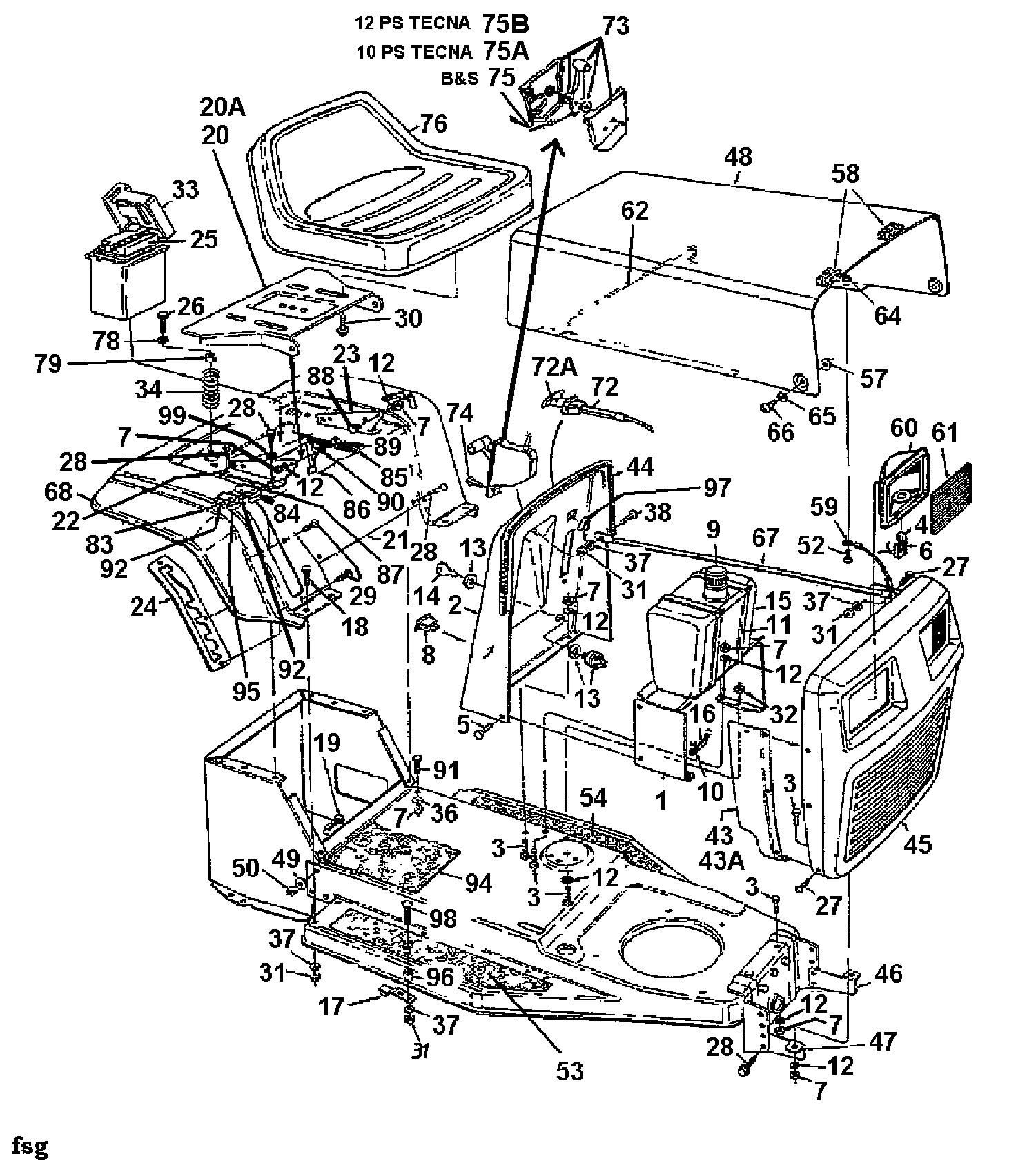

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	16655A	DASH PANEL SUPPORT BRACKET	£38.07	Add
002	16656	Instruments board	£110.97	Add
003	710-3008	HEX BOLT	£3.03	Add
004	725-0963	BULB	£7.18	Add
005	710-0776A	SCREW-HEX WASH HD	£3.20	Add
006	725-1650	SOCKET LAMP TWIST LOCK (OBSOLETE)	N/A
007	712-3010	NUT 5/16 x 18	£2.77	Add
008	725-0634	SW:ROCKER	£19.29	Add
009	751-0603A	CAP:FUEL	£9.01	Add
010	726-0205	HOSE CLAMP 1/2 INCH DIA.	£3.44	Add
011	726-0209	NO LONGER AVAILABLE	N/A	POA
012	736-0119	LOCK WASHER 5/16	£3.33	Add
013	725-0267B	IGNITION SWITCH	£25.04	Add
014	725-0201	IGNITION KEY	£6.47	Add
015	751-0553	FUEL TANK	£80.00	Add
016	751-10349-54	FUEL LINE HOSE BLACK	£25.38	Add
017	761-0197	BLADE BRAKE ASS'Y.	£26.63	Add
018	710-0134	BOLT	£3.03	Add
019	710-0793	SCREW-RIBBED NECK	N/A	POA
020	783-0039A637	NO LONGER AVAILABLE	N/A	POA
021	17590	FENDER-RR	£562.53	Add
022	17704	BRKT:SEAT:HINGE:SUPPORT R.H.	£24.50	Add
023	17703A	BRKT:SEAT:HGE:SUPT LH	£16.96	Add
024	17553	BRKT:INDX:LIFT:DK:6POS-PAI	£17.69	Add
025	EPB3117	BATTERY 12N14-3A (DRY)	£52.41	Add
026	710-0817	SCR:TT:5/16-18:1.250:HXINDWSH	£4.52	Add
027	710-0924	TRUSS SCREW (OBSOLETE) (OBSOLETE) (OBSOLETE)	N/A
028	710-0726	HEX SCREW AB 5/16-12:0.750	£3.19	Add
029	710-1017	TAP SCREW	£2.97	Add
030	710-0623	SCR:TT:3/8-16:.750 HXINDWSH	£6.30	Add
031	712-0287	NUT HEX	£3.31	Add
032	712-3007	HEX JAM NUT	£3.07	Add
033	731-0871B	BATTERY BOX W/COVER	£59.87	Add
034	732-0588	SPRG:COMP 1.35 OD X 3,6	£13.94	Add
036	736-0242	BELL WASHER	£3.72	Add
037	736-0329	L. WASHER	£3.26	Add
038	710-0751	BOLT 069	£3.39	Add
043	16622A	PANEL-SIDE-RH	£13.30	Add
044	731-051181	EDGE GUARD 731-0511	£32.27	Add
045	17025	GRILLE	£495.64	Add
046	17131	GRILLE MTG. BRKT.--L.H. (STYLE 2)	£6.72	Add
047	17132	GRILLE MTG. BRKT.--R.H. (STYLE 2)	£14.51	Add
048	16681	HOOD (STYLE 2, 7)	N/A	POA
049	736-0217	H.L. WASHER (RED)	£4.89	Add
050	712-0241	HEX NUT 3/8-24	£2.79	Add
052	710-0473	SCR:MACH:#10-24:0.500:TRUSPHI	£4.62	Add
053	723-0474	FOOT PAD RIGHT	£20.71	Add
054	723-0475	FOOD PAD LEFT	£20.71	Add
057	712-0380	NUT:FLGLK:1/4-28:GRF	£3.20	Add
058	722-0157	STRIP-FOAM	£2.56	Add
059	723-0302	HOOD STOP X 7.0	£27.76	Add
060	731-0705	HSG:HDLT	£27.93	Add
061	731-0706	LENS-HEADLAMP-SQ	£12.42	Add
062	732-0414A	SPRING-HOOD	£12.68	Add
064	712-0272	NUT SEMS:#10-24	£3.39	Add
065	736-0413	NO LONGER AVAILABLE	N/A	POA
066	738-0724	NO LONGER AVAILABLE	N/A	POA
067	749-0722B	ROD:SUPPORT:GRILLE:PAINTED	N/A	POA
068	731-051181	EDGE GUARD 731-0511	£32.27	Add
072	746-0617A	NO LONGER AVAILABLE	N/A	POA
073	931-0823A	THROTTLE CONTROL BOX ASSY	£25.49	Add
074	710-0779A	SELF TAP SCREW	£3.58	Add
075	746-0501	THROTTLE CONTROL WIRE	£23.72	Add
076	757-04107	SEAT	£187.38	Add
078	736-0159	WASH .349 ID X .879 OD X .063	£3.59	Add
079	722-0160	ELASTEMER BUSHING .930 OD X .5	£3.20	Add
083	710-0227	SCR:AB:#8-18:0.500:HXINDWH	£3.07	Add
084	725-1439	SW:INNER SEAT SPRG	£8.44	Add
085	732-0581B	SPRG:EXTN:.75 OD X 5.31	£7.22	Add
086	17239C	BRKT:LIFT:SEAT	N/A	POA
087	726-0278	INSULATING PLATE	£3.20	Add
088	738-0155	BOLT:SHLDR:.435 x.160:5/16-18	£7.50	Add
089	738-3024	NO LONGER AVAILABLE	N/A	POA
090	736-0141	WASH:SPR:.440 x.750 x.015	£3.39	Add
091	710-0604A	SCREW	£3.62	Add
092	726-0279	INSULATING PLATE	£3.20	Add
094	723-0310A	CENTER FOOT PAD	£18.38	Add
095	725-1303	SW:OUTER SEAT SPRG	£3.26	Add
096	750-0539	SPACER (OBSOLETE) (OBSOLETE)	N/A
097	17782	CHOKE CABLE RETAINER CLIP	£13.39	Add
098	710-0111	NO LONGER AVAILABLE	N/A	POA
099	736-0607	WASH:LOCK:5/16 EXT TOOTH	£3.31	Add
20A	783-0039A665	CARRIER	£38.09	Add
43A	16621A	PANEL	£13.30	Add
72A	746-0618	NO LONGER AVAILABLE	N/A	POA
75A	746-0638	CABLE-THROTTLE	£11.28	Add
75B	746-0638	CABLE-THROTTLE	£11.28	Add
