MTD006577

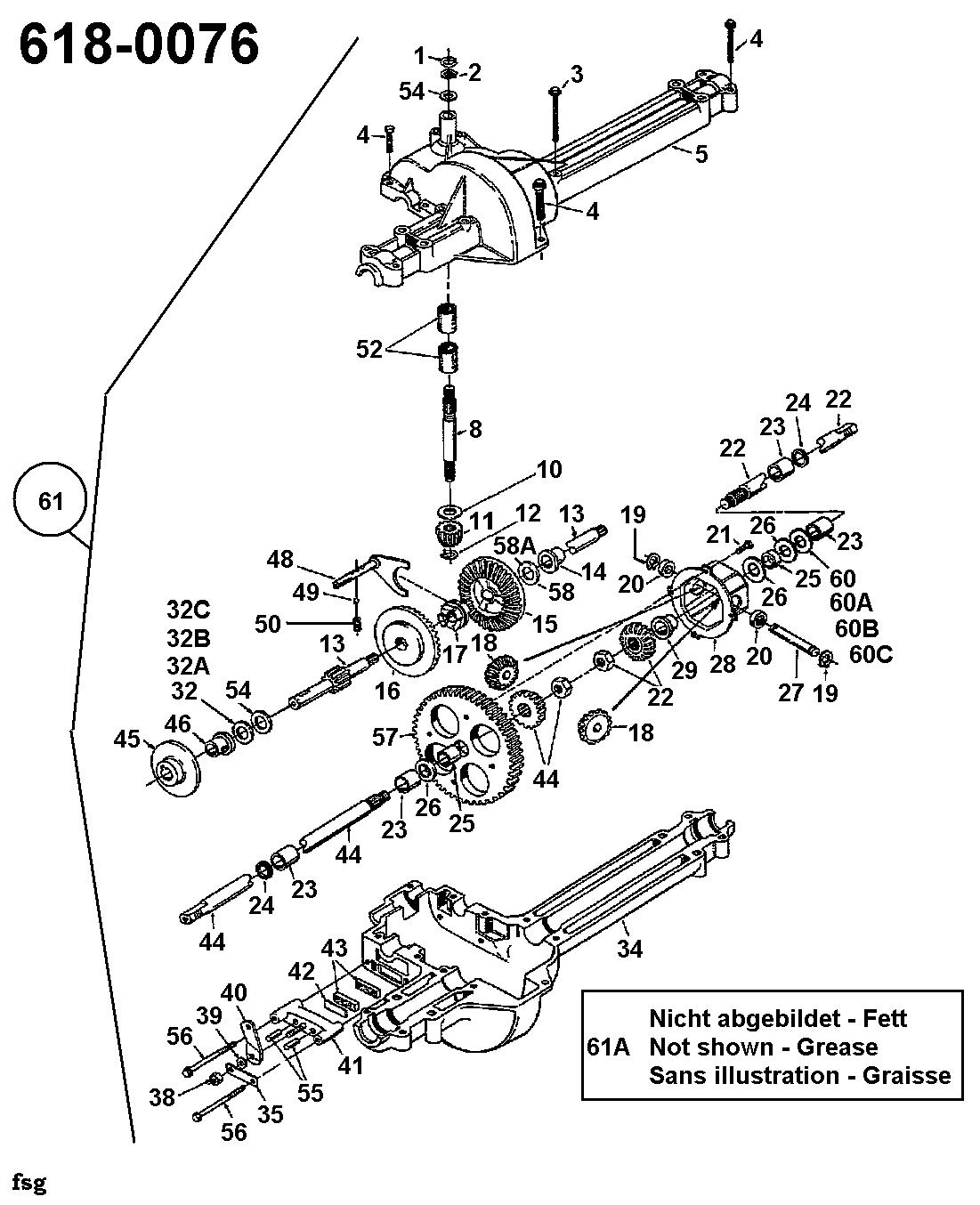

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	732-0614	CIRCLIP	£3.80	Add
002	716-0171	RING, RETAINER	£5.24	Add
003	710-1026	SCREW	£3.91	Add
004	710-0809	SCR:TT:1/4-20:1.250:HXINDWSH	£3.42	Add
005	753-0678	UPPER HOUSING 719-0314	£262.57	Add
006	710-0642	SCREW-HEX HD TAP 4-20 x 7.5	£3.68	Add
008	711-0861	NO LONGER AVAILABLE	N/A	POA
010	736-0335	WASH:THRST:.635 X 1.26 X .06	£8.82	Add
011	717-0633	PINION-INPUT-14T	£22.47	Add
012	716-0171	RING, RETAINER	£5.24	Add
013	753-0596	DRIVE SHAFT 711-0942	£135.36	Add
014	741-0336	BEARING	£8.18	Add
015	717-1362	PINION 42 T., SM. BORE HOLE	£57.65	Add
016	717-1363	PINION 42 T., BIG BORE HOLE	£58.35	Add
017	718-0228	HINGE PIN	£27.68	Add
018	717-1020	GEAR-MITER	£30.02	Add
019	716-0184	RETAINER	£2.98	Add
020	741-0589	THRUST BEARING	£4.37	Add
021	710-0862A	SCREW	£8.62	Add
022	717-0766	TRANSMISSION AXLE RH	£127.14	Add
023	741-05060	BEARING	£15.60	Add
024	721-0179	OIL SEAL 3/4 ID	£8.19	Add
025	750-0767	DISTANCE BUSH	£5.10	Add
026	736-0445	WASH:FL:.760 x 1.50 x.06:HT	£3.59	Add
027	711-0918	SHAFT-CROSS	£41.74	Add
028	917-1252	NO LONGER AVAILABLE	N/A	POA
032	736-0495	THRUST WASHER	£3.07	Add
034	719-0313B	LOWER HOUSING HALF	£146.80	Add
035	718-0150	BRACKET-ANTI ROTATION	£3.49	Add
038	712-0273	NUT:HEXLK:5/16-24:GR2:NYLON	£3.90	Add
039	736-0371	WASH:THRST:.343 X .880 X .062	£3.20	Add
040	717-0772B	LEVER, PARK BRAKE ENGAGEMENT	£13.38	Add
041	761-0198A	BRAKE YOKE	£31.21	Add
042	717-0682	PLATE	£14.67	Add
043	717-0678	PAD	£12.86	Add
044	717-0765	TRANSMISSION SHAFT LH	£205.36	Add
045	761-0202	BRAKE DISC	£16.56	Add
046	741-0337	BEARING	£10.11	Add
048	611-0011	KP SHIFT FORK	£48.90	Add
049	741-0862	BALL:DETNT:.250 DIA	£6.05	Add
050	732-0863	COMPRESSION SPRING 225X.50"	£3.42	Add
052	741-0335	BEARING-NEEDLE .625X.813X.495	£16.43	Add
054	736-0349	WASHER:SHIM:.630x1.000x.020:HD	£3.39	Add
055	741-0343	PIN	£10.78	Add
056	710-1206	SCREW SELF TAP	£3.69	Add
057	717-04292	GEAR-DIFFERENTIAL 58 TEETH 717-1364	£194.89	Add
058	736-0349	WASHER:SHIM:.630x1.000x.020:HD	£3.39	Add
060	736-0492	WASH:SHIM:.760x1.500x.010:HD	£3.90	Add
061	618-0165A	TRANSAXLE-SINGLE SPD 618-0076	£607.07	Add
062	737-0300A	GREASE (OBSOLETE)	N/A
32A	736-0773	WASH:FLAT:16x22x1 DIN 988	£2.93	Add
32B	736-0494	WASHER:FL:.632X1.000X.035:HD	£3.07	Add
32C	736-0337	WASHER:FLAT:.634x1.00x.04:HT	£3.19	Add
58A	736-0495	THRUST WASHER	£3.07	Add
60A	736-0493	WASHER:SHIM:.760x1.500x.020:HD	£4.11	Add
60B	736-0351	WASH:SHIM:.760x1.500X.030:HD	£2.97	Add
60C	736-0445	WASH:FL:.760 x 1.50 x.06:HT	£3.59	Add
