MTD009634

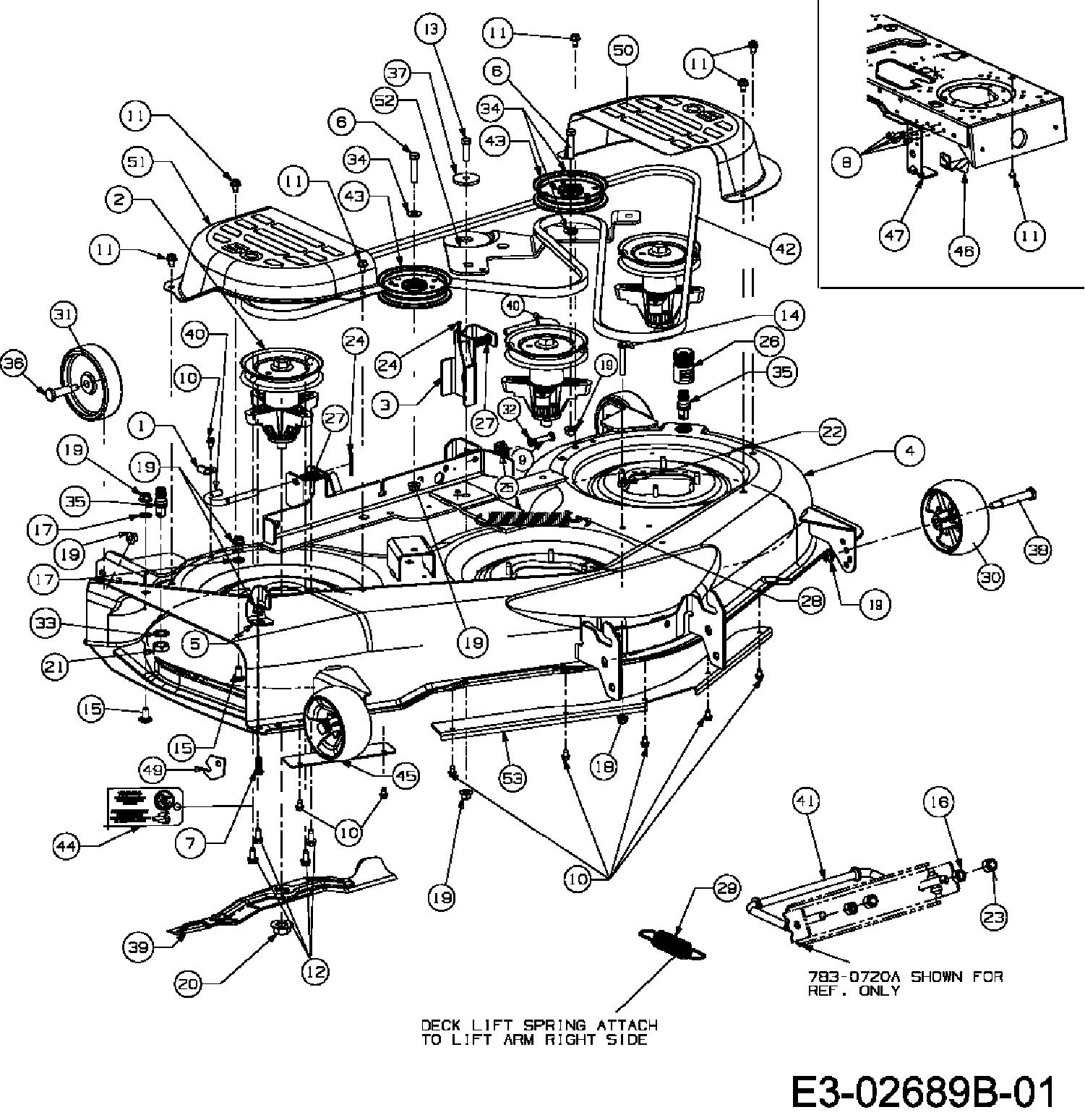

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	16606-Z	BRKT:HOOK:RETAINER 16606	£5.80	Add
002	918-04125B	SPINDL ASM PUL 5.39 DIA x.5625	£152.37	Add
003	683-0254B637	BRKT:ASM:DECK:HNGR LH LT BLACK	£30.23	Add
004	683-04075B	SHELL-DECK 50" SD w/NOZ	N/A	POA
005	703-3279	STOP:CHUT:DFL	£27.80	Add
006	710-0347	HEX SCR	£3.72	Add
007	710-04095	SCREW HEX CAP	£8.34	Add
008	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
009	710-0528	SCREW (DNR)	£3.55	Add
010	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
011	710-0607	SELF TAP SCREW	£4.71	Add
012	710-1260A	SCREW	£4.00	Add
013	710-3005	BOLT	£3.24	Add
014	710-3103	SCRE.HHCS:5/16-18:2.00:GR5:STD	£3.16	Add
015	710-3178	BOLT SHORT NECK CARR	£11.46	Add
016	712-0206	NUT	£3.42	Add
017	712-0229	NUT PUSH	£5.20	Add
018	712-04063	FLANGED NUT	£4.20	Add
019	712-04065	NUT	£4.02	Add
020	712-05134	BLADE NUT	£3.81	Add
021	712-0641	NUT	£6.47	Add
022	712-3010	NUT 5/16 x 18	£2.77	Add
023	712-3083	NUT	£2.79	Add
024	714-0470	COTTER PIN	£5.07	Add
025	717-04074	GEAR DECK ADJUSTMENT	£11.11	Add
026	721-04041	ADAPER:WATER NOZZLE	£16.76	Add
027	732-0306A	SPACER	£5.28	Add
028	732-0459C	EXTENSION SPRING	£18.91	Add
029	732-0934	SPR:EXTN:1.15 OD x 5.99 LG	£17.69	Add
030	734-04155	WHEEL:DECK	£16.47	Add
031	734-0973	WHEEL DECK 5in. DIA	£11.16	Add
032	736-0119	LOCK WASHER 5/16	£3.33	Add
033	736-0225	WASHER (RED)	£5.32	Add
034	736-0300	WASHER	£2.81	Add
035	737-04003D	NOZ:DECK:WATER	£19.14	Add
036	738-0373	AXLE BOLT	£6.84	Add
037	738-04162C	SPACER	£5.00	Add
038	738-3056	SHOULDER BOLT	£12.94	Add
039	742-04053C	BLADE	£39.96	Add
040	747-1116	QUICK RELEASE PINS RH LONG	£14.71	Add
041	747-1324	ROD-DECK FRONT ADJUSTER .5"DIA 54"GT	£38.09	Add
042	754-04077	BELT:V TYPE:B SEC X 134 ARAMID	N/A	POA
043	756-04129C	PUL:IDLR:4.25" DIA 756-04129	N/A	POA
044	771-11725A	TAG:DNGR:RT-99 CHUTE BLNGL	N/A	POA
045	783-04415637	SKIRT-RH 50" POWDER BLACK	£61.83	Add
046	783-04419B	BRACKET-CLUTCH	£45.93	Add
047	783-04467637	BRACKET:DECK:UP STOP	£91.80	Add
049	783-05219	BRKT:STOP:CHUTE 50"/54"	£14.15	Add
050	783-05280	BUMPER COVER	N/A	POA
051	783-05281	COVER	N/A	POA
052	783-05474	BRKT:IDLR:50LT W/O SPACER	N/A	POA
053	783-05513	SKIRT:CNTR:50" EXPORT	£109.17	Add
