MTD009633

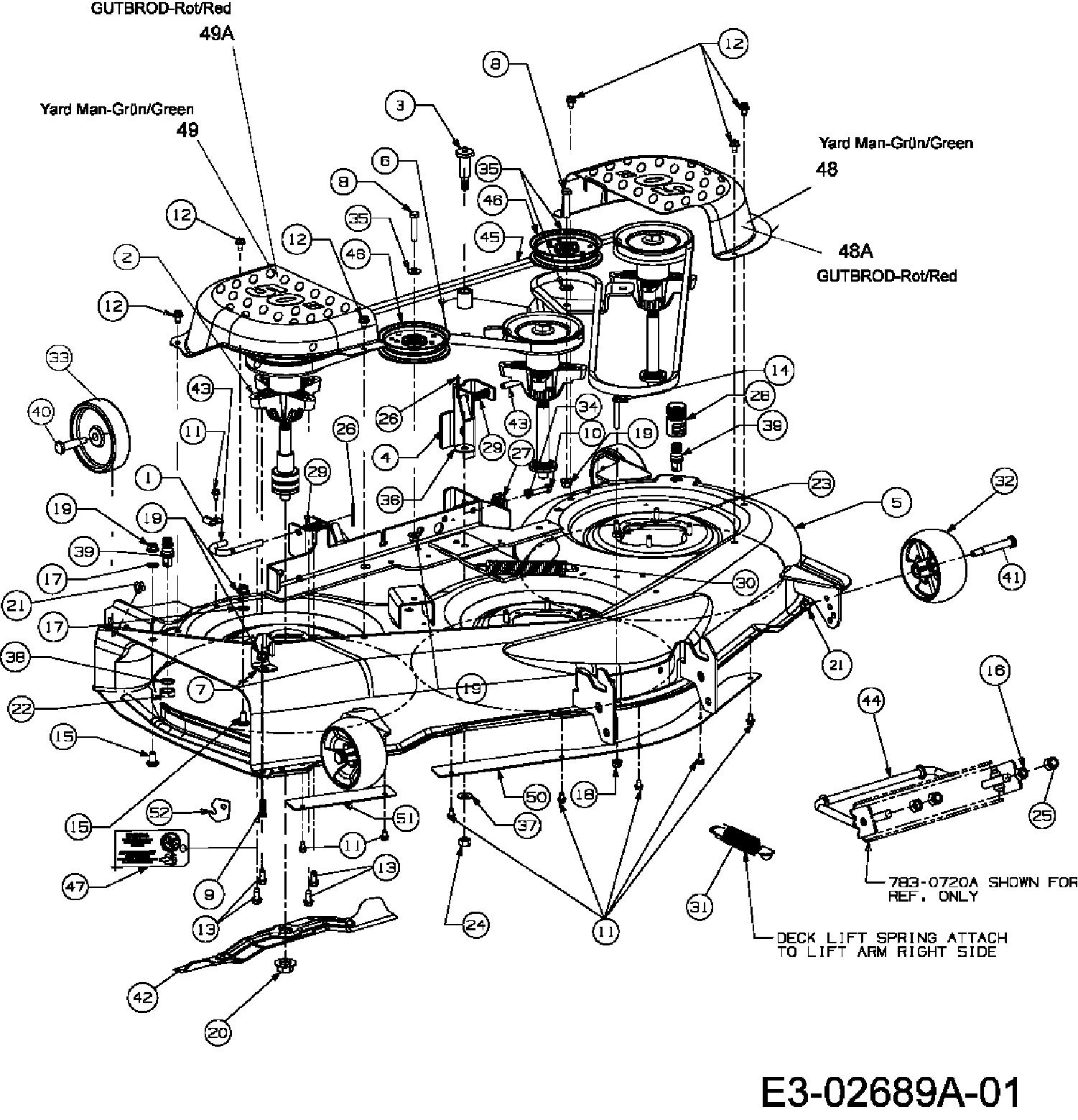

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	16606-Z	BRKT:HOOK:RETAINER 16606	£5.80	Add
002	618-04126	SPDL ASM:PUL:5.695 DIA X .5625	N/A	POA
003	638-04012A	BOLT	£17.98	Add
004	683-0254B637	BRKT:ASM:DECK:HNGR LH LT BLACK	£30.23	Add
005	683-04075	WELDMENT, 50-INCH DECK	N/A	POA
006	683-04098637	BRACKET ASSY-IDLER	£90.64	Add
007	703-3279	STOP:CHUT:DFL	£27.80	Add
008	710-0347	HEX SCR	£3.72	Add
009	710-04095	SCREW HEX CAP	£8.34	Add
010	710-0528	SCREW (DNR)	£3.55	Add
011	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
012	710-0607	SELF TAP SCREW	£4.71	Add
013	710-1260A	SCREW	£4.00	Add
014	710-3103	SCRE.HHCS:5/16-18:2.00:GR5:STD	£3.16	Add
015	710-3178	BOLT SHORT NECK CARR	£11.46	Add
016	712-0206	NUT	£3.42	Add
017	712-0229	NUT PUSH	£5.20	Add
018	712-04063	FLANGED NUT	£4.20	Add
019	712-04065	NUT	£4.02	Add
020	712-05134	BLADE NUT	£3.81	Add
021	712-0431	NUT	£3.20	Add
022	712-0641	NUT	£6.47	Add
023	712-3010	NUT 5/16 x 18	£2.77	Add
024	712-3019	NUT	£14.44	Add
025	712-3083	NUT	£2.79	Add
026	714-0470	COTTER PIN	£5.07	Add
027	717-04074	GEAR DECK ADJUSTMENT	£11.11	Add
028	721-04041	ADAPER:WATER NOZZLE	£16.76	Add
029	732-0306A	SPACER	£5.28	Add
030	732-0459C	EXTENSION SPRING	£18.91	Add
031	732-0934	SPR:EXTN:1.15 OD x 5.99 LG	£17.69	Add
032	734-04155	WHEEL:DECK:5.0 DIA BALL	£16.47	Add
033	734-0973	WHEEL DECK 5in. DIA	£11.16	Add
034	736-0119	LOCK WASHER 5/16	£3.33	Add
035	736-0300	WASHER	£2.81	Add
036	736-0406	WASH:F:.442 IDX 1.38 ODX.060HT	£3.39	Add
037	736-0407	WASHER	£11.84	Add
038	736-0760	WASHER	£4.01	Add
039	737-04003D	NOZ:DECK:WATER	£19.14	Add
040	738-0373	AXLE BOLT	£6.84	Add
041	738-3056	SHOULDER BOLT	£12.94	Add
042	742-04053C	BLADE	£39.58	Add
043	747-1116	QUICK RELEASE PINS RH LONG	£14.71	Add
044	747-1324	ROD-DECK FRONT ADJUSTER .5"DIA 54"GT	£38.09	Add
045	754-04077	BELT:V TYPE:B SEC X 134 ARAMID	N/A	POA
046	756-04129C	PUL:IDLR:4.25" DIA 756-04129	N/A	POA
047	771-11725A	TAG:DNGR:RT-99 CHUTE BLNGL	N/A	POA
048	783-04399665	COVER-BELT LH YARD-MAN GREEN	£31.79	Add
049	783-04400665	COVER-BELT RH YARD-MAN GREEN	£84.01	Add
050	783-04414637	SKIRT-CENTER 50" POWDER BLACK	£38.54	Add
051	783-04415637	SKIRT-RH 50" POWDER BLACK	£61.83	Add
052	783-05219	BRKT:STOP:CHUTE 50"/54"	£14.15	Add
48A	783-04399650	COVER-BELT LH	N/A	POA
49A	783-04400650	COVER-BELT RH	N/A	POA
