MTD009387

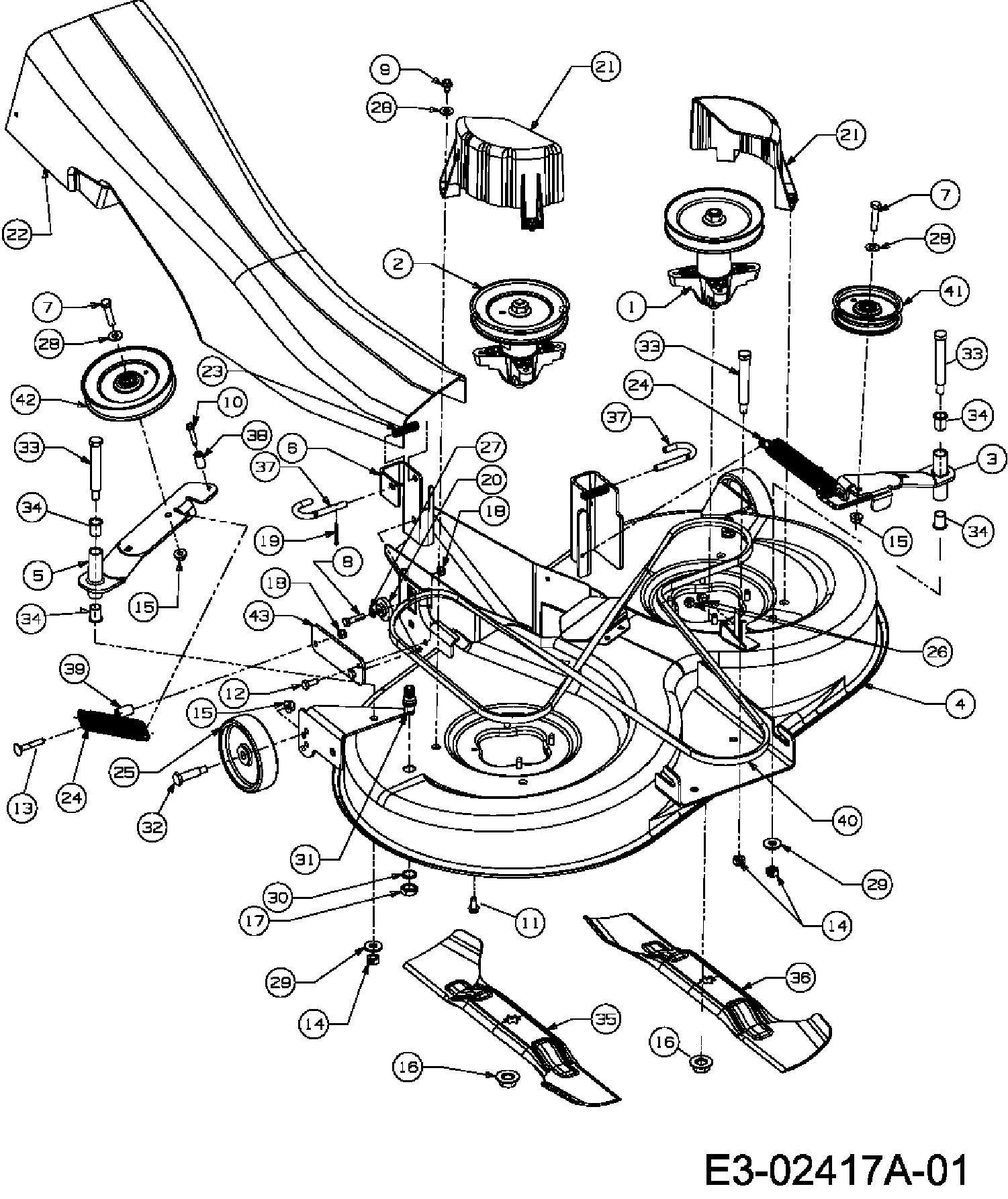

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD009387

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
002 618-0624B SPINDLE ASSY 6.3" DIA PULLEY £148.22 Add
003 683-04058E-S KIT IDLER ARM WITH BELT GUIDE £37.16 Add
004 683-04059a-s DECK PAN BLACK £363.13 Add
005 683-04061637 BRACKET IDLER ARM BLACK £23.62 Add
006 683-0596A637 BRKT ASM:DECK:HNGR ADJ 92/105 683-0596 N/A POA
007 710-0347 HEX SCR £3.14 Add
008 710-0528 SCREW (DNR) £3.00 Add
009 710-0607 SELF TAP SCREW £3.97 Add
010 710-0778 HEX WASHER HEAD SCREW £2.71 Add
011 710-1260A SCREW £3.37 Add
012 710-1681 HEX BOLT M8 X 20 DIN 933 (RED) £2.75 Add
013 710-1719 BOLT £4.12 Add
014 712-0290 NUT 7/16 CAD P/T LOCK TYPE 5 £2.36 Add
015 712-04065 NUT UTV £1.60 Add
016 712-05134 NUT £2.92 Add
017 712-0641 NUT £5.44 Add
018 712-0692 HEX NUT £2.57 Add
019 714-0470 COTTER PIN £2.50 Add
020 717-04074 GEAR DECK ADJUSTMENT £9.30 Add
021 731-2538 L.H. DECK BELT GUARD £32.27 Add
022 731-2539B REAR CHUTE SHORT VERSION 731-2539A £94.87 Add
023 732-0306A SPACER £4.44 Add
024 732-04099 SPRING £10.72 Add
025 734-0973 WHEEL DECK 5in. DIA £9.66 Add
026 735-0271A UTV TAILGATE GROMMET £7.74 Add
027 736-0119 LOCK WASHER 5/16 £2.81 Add
028 736-0300 WASHER £2.39 Add
029 736-04097A WASHER £2.82 Add
030 736-0760 WASHER £3.38 Add
031 737-04003D NOZ:DECK:WATER £15.98 Add
032 738-0373 AXLE BOLT £5.74 Add
033 738-0476 SHOULDER SCREW £3.96 Add
034 741-0591 FLANGE BEARING £2.90 Add
035 742-0670A BLADE £44.99 Add
036 742-0671A BLADE £44.99 Add
037 747-04116A ROD:HNDL:DECK REL .375 DIA 747-04116 £26.19 Add
038 750-04182 SPACER £3.70 Add
039 750-04195 SPACER Ò16 x Ò8 x 27LG DIN2391 £4.75 Add
040 754-04069 BELT N DECK £102.31 Add
041 756-04049A IDLER £33.98 Add
042 756-04050 IDLER PULLEY £31.99 Add
043 783-04255 BRKT:DECK:SPR 500 SERIES N/A POA
