MTD015434

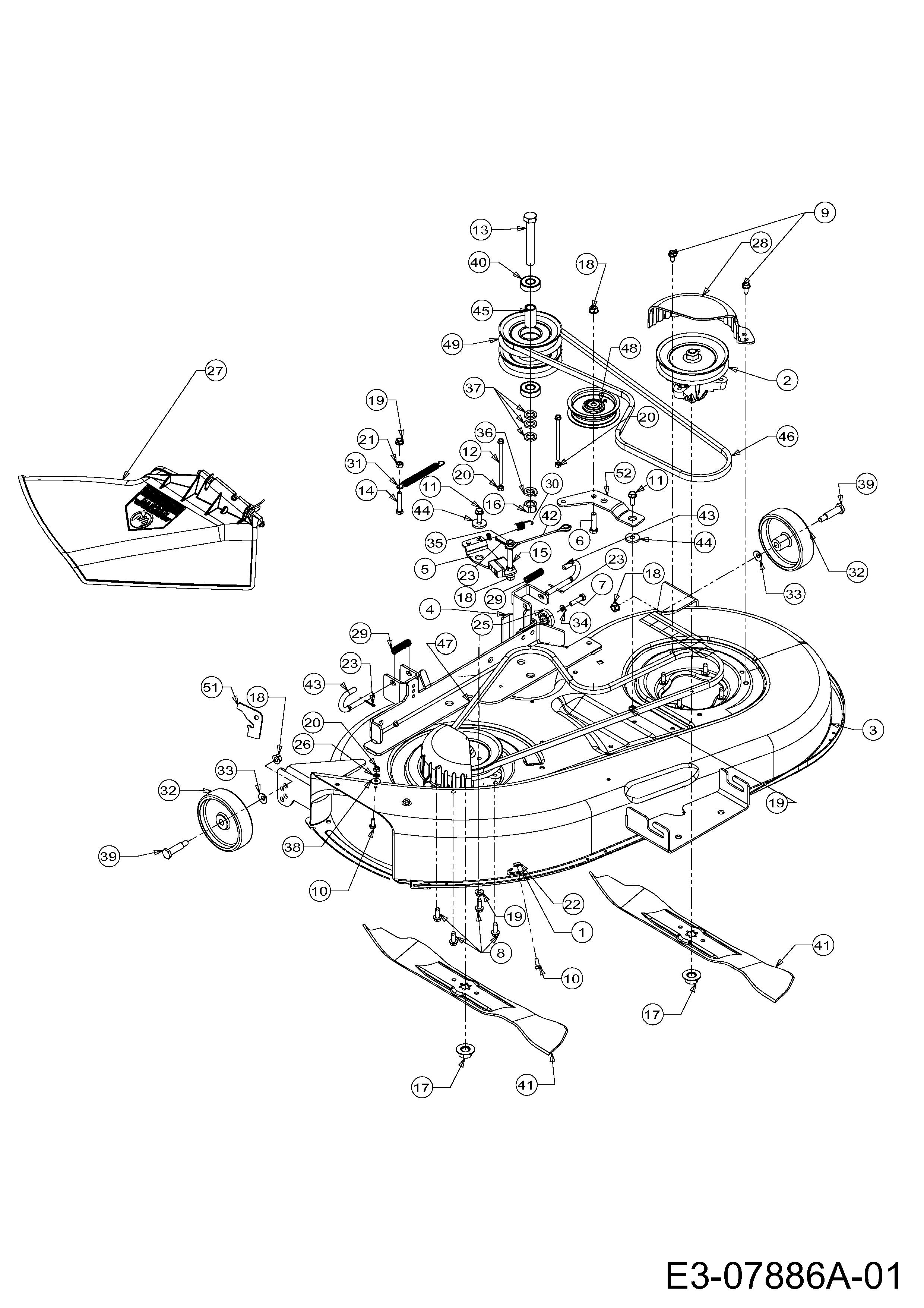

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	16606-Z	BRKT:HOOK:RETAINER 16606	£5.80	Add
002	618-0574	SHAFT	N/A	POA
003	683-0198E		N/A	POA
004	683-0254B637	BRKT:ASM:DECK:HNGR LH LT BLACK	£30.23	Add
005	683-0440	BRAKE ASM:BLADE	£55.05	Add
006	710-0520	SCREW HEX CAP 3/8 (RED)	£3.51	Add
007	710-0528	SCREW (DNR)	£3.55	Add
008	710-0650	SCREW	£3.58	Add
009	710-0726	HEX SCREW AB 5/16-12:0.750	£3.19	Add
010	710-0751	BOLT 069	£3.39	Add
011	710-1238	SCREW	£3.20	Add
012	710-1830	SCREW:TT:1/4-20:4.00:HXINDWSH	£17.35	Add
013	710-3151A		N/A	POA
014	710-3180	SCREW HEX CAP	£5.00	Add
015	711-1534	Bolt	N/A	POA
016	712-0337	NUT-HEX	£14.89	Add
017	712-05134	BLADE NUT	£3.81	Add
018	712-0431	NUT	£3.20	Add
019	712-3004A	HEX FLANGE NUT	£2.97	Add
020	712-3006	NUT	£2.77	Add
021	712-3010	NUT 5/16 x 18	£2.77	Add
022	712-3027	LOCK NUT	£2.79	Add
023	714-0470	COTTER PIN	£5.07	Add
025	717-04074	GEAR DECK ADJUSTMENT	£11.11	Add
026	726-0233	NUT:PUSH:.25 ID X .50 OD	£3.58	Add
027	731-1032B	EJECTION FLAP	£92.54	Add
028	731-2486	COVER-BELT	£29.47	Add
029	732-0306A	SPACER	£5.28	Add
030	732-0470A	EXTENSION SPRING	£11.07	Add
032	734-0973	WHEEL DECK 5in. DIA	£11.16	Add
033	736-0105	BELL WASHER	£3.33	Add
034	736-0119	LOCK WASHER 5/16	£3.33	Add
035	736-0140	WASH:FLAT:.385 x.62 x.063	£3.59	Add
036	736-0158	WASHER:LOCK:5/8:SPLT:REG	£3.47	Add
037	736-0162	WASHER:FLAT:.640x1.000x.120	£4.62	Add
038	736-0270	BELL WASHER	£3.91	Add
039	738-0373	AXLE BOLT	£6.84	Add
040	741-0524A	BRG BALL 625X40X12:6203	£31.45	Add
041	742-0616A	BLADE 21.23 INCH FOR 42 INCH DECK	£43.90	Add
042	746-0970	BRAKE CABLE	£15.32	Add
043	747-1116	QUICK RELEASE PINS RH LONG	£14.71	Add
044	748-0331	SHLD SPACER	£4.23	Add
045	750-0932A	SPACER	£32.45	Add
046	754-0497	BELT-PTO (42" DECKS)	£47.08	Add
047	754-0498	BELT-DECK	£83.76	Add
048	756-0627D	PUL:IDLR:FLAT 3.5 OD	£27.53	Add
049	756-1202	PULLEY-DOUBLE	£169.60	Add
051	783-1025	STOP:CHUTE	£7.30	Add
052	783-1291	IDLER BELT KEEPER	£13.56	Add
