MTD015518

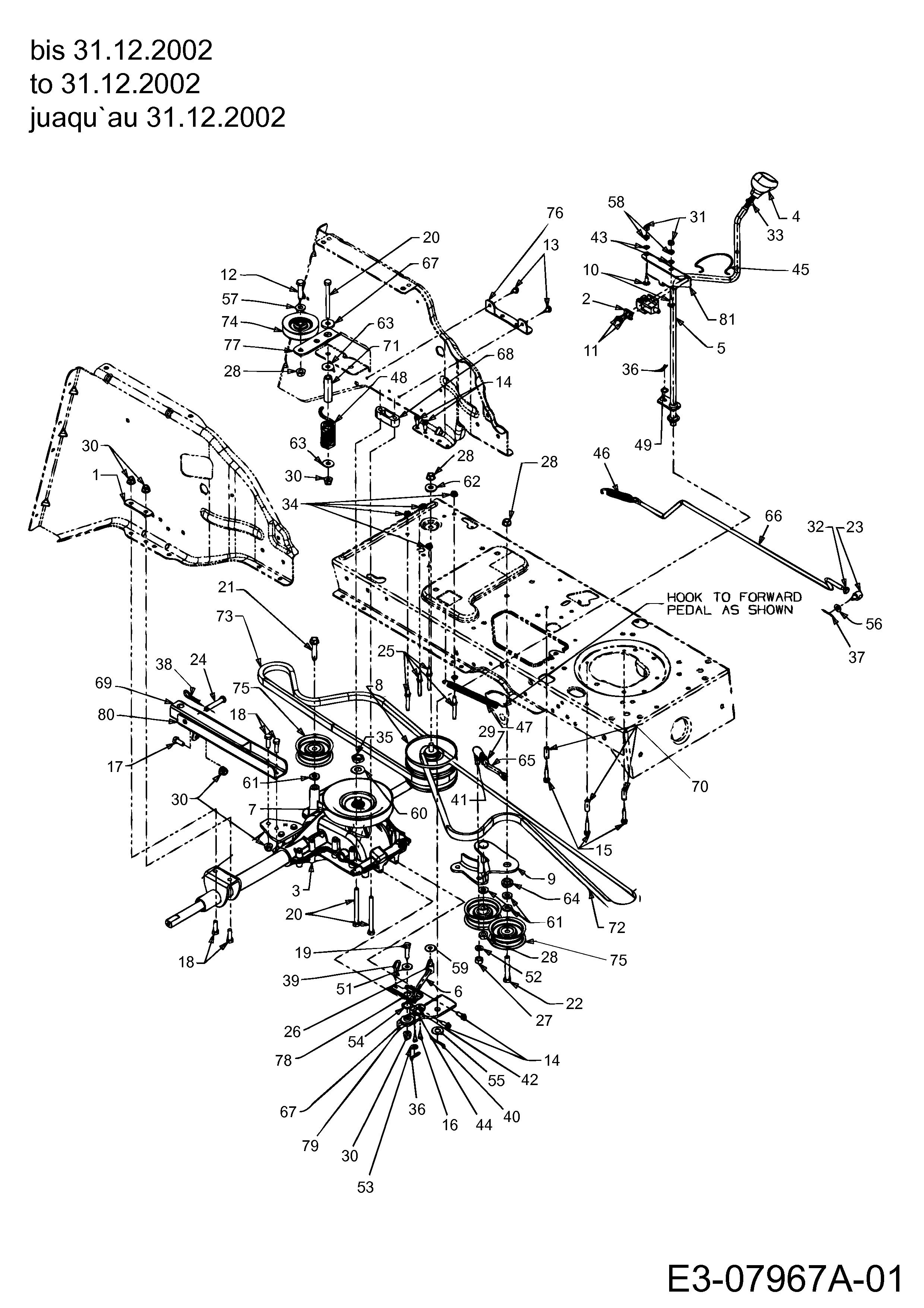

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD015518

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 17840-Z BRKT:MTG:TRANSAXLE £18.33 Add
002 17962 PLT:SW £4.62 Add
003 618-04331A TRANSAXLE £391.32 Add
004 631-0009A KNOB:SHIFTER:3/8-16 THRD £7.55 Add
005 647-0059-Z ROD-SHIFT 647-0059 N/A POA
006 647-0060 ROD ASM:SHFT:ADJ 500 £28.21 Add
007 656-0002 PULLEY £47.82 Add
008 656-0061 PUL ASM:VAR SPD 500 £177.31 Add
009 683-04000-Z BRACKET ASSY-IDLER 683-0251 N/A POA
010 710-0134 BOLT £2.57 Add
011 710-0224 SCR:AB:#10-16:0.500:HXINDWSH N/A POA
012 710-0344 HHCS:3/8-16:1.50:GR5:SPEC N/A POA
013 710-0599 HEX TT SCREW 1/4-20 £4.16 Add
014 710-0642 SCREW-HEX HD TAP 4-20 x 7.5 £3.11 Add
015 710-0809 SCR:TT:1/4-20:1.250:HXINDWSH £2.94 Add
016 710-1388 SCREW £2.74 Add
017 710-1681 HEX BOLT M8 X 20 DIN 933 (RED) £2.75 Add
018 710-1682 SCR:M8-1:25.00 LG:DIN 933 £3.02 Add
019 710-1683 SCR:M8-1:30.00 LG:DIN 933 £2.64 Add
020 710-1686 SCR:M8-1.25:90.00 LG:DIN 931 £6.05 Add
021 710-1858A SCR:TT:3/8-16 X 1.75:HXINDWSH £3.00 Add
022 710-3011 HHCS:3/8-16:2.25:GR5:STD £6.93 Add
023 711-0677 FERRULE:5/16-18 x.312 DIA £16.07 Add
024 711-0679A CLEVIS PIN £5.62 Add
025 711-0747 PIN:GDE:.250 DIA x 1.68 LG £5.26 Add
026 711-1171 FRL:5/16-24 RH X .312 £17.64 Add
027 712-0241 HEX NUT 3/8-24 £2.38 Add
028 712-0431 NUT £2.71 Add
029 712-0711 NUT £2.59 Add
030 712-0714 NUT:FLGLK:M8-1.25 DIN 6926 £3.57 Add
031 712-3006 NUT £2.35 Add
032 712-3007 HEX JAM NUT £2.59 Add
033 712-3008 NUT:JAM:3/8-16:GR5 £2.76 Add
034 712-3027 LOCK NUT £2.38 Add
035 712-3035 NUT:JAM:9/16-18:GRADE 5 £3.89 Add
036 714-0104 PIN INTERNAL COTTER £2.36 Add
037 714-0111 COTTER PIN £2.71 Add
038 714-0147 COTTER PIN £2.96 Add
039 714-0209 INTERNAL COTTER PIN .125 DIA £3.73 Add
040 714-0470 COTTER PIN £2.50 Add
041 723-3018 BALL JOINT £20.04 Add
042 725-1773 SW:SPR:SHORT £7.08 Add
043 726-0233 NUT:PUSH:.25 ID X .50 OD £4.37 Add
044 726-0320 INSULATING PLATE £2.55 Add
045 732-0525 COMP SPRING CLIP £2.65 Add
046 732-0716D SPRING EXTENSION £12.05 Add
047 732-0963 SPRING £8.15 Add
048 732-1030 SPR:TORSN:RH:20MM ID X 71MM LG N/A POA
049 736-0117 WASH:FLAT:.385 x.620 x.033 £2.79 Add
050 736-0142 WASHER:FLAT:.281 x.50 x.063 £3.89 Add
051 736-0159 WASH .349 ID X .879 OD X .063 £3.89 Add
052 736-0169 L. WASHER £2.45 Add
053 736-0204 F.I. WASHER £3.04 Add
054 736-0256 WASHER:FL:.635 IDX.930 ODX.03 £3.60 Add
055 736-0272 WASHER:FL:.510 X 1.000 X .060 £2.67 Add
056 736-0275 WASH:FLAT:.344 x .688 x.065 £2.66 Add
057 736-0300 WASHER £2.39 Add
058 736-0329 L. WASHER £1.28 Add
059 736-0425 BELLWASHER £2.80 Add
060 736-0427 BELL:WASH:.567 x 1.125 x .06 £3.57 Add
061 736-3010 WASH:FL:.407X.812X.135:HD £2.41 Add
062 736-3052 WASH:FLAT:.406 X 1.00 X .105 £3.18 Add
063 736-3078 WASH:FLAT:.344 x 1.00 x 063:HD £4.18 Add
064 738-0372B COLLAR £4.74 Add
065 747-1127 ROD,ENGAGEMENT ASSY. £17.77 Add
066 747-1298B ROD:BRAKE:LONG £17.74 Add
067 748-0331 SHLD SPACER £3.56 Add
068 748-0334 TRANSAXLE SPACER .68 £7.66 Add
069 749-04013B-S HITCH TUBE BLACK £26.88 Add
070 750-0566A SPACER £6.49 Add
071 750-1311 SPCR:17MM X 9MM X 62MM LG £5.47 Add
072 754-0626 BELT £73.42 Add
073 754-0629 BELT £44.00 Add
074 756-05234 IDLER PULLEY 2" DIA £21.36 Add
075 756-3054A PULLEY IDLER £54.71 Add
076 783-04051-RG BRKT:MTG:TRANS N/A POA
077 783-1323-Z BRKT:IDLR £11.45 Add
078 783-1361 BRKT:SHFT £6.47 Add
079 753-04952 SUPT:LVR:SHFT 783-1362A N/A POA
080 783-1369637 BRKT:HITCH:GT 783-1369 £18.69 Add
081 783-1387A BRKT:ROD:SHF £23.37 Add
