MTD008487

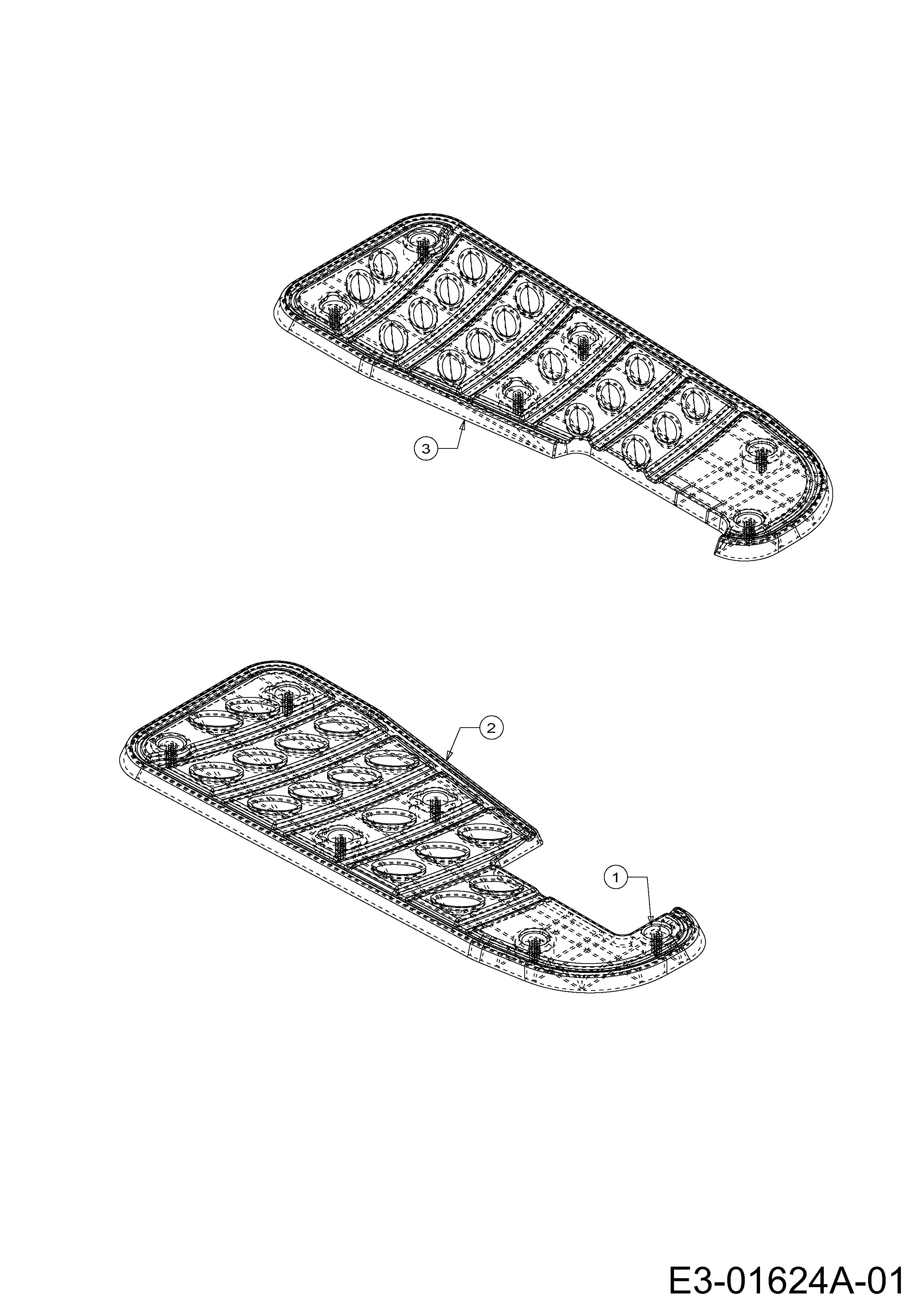

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD008487

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 726-3046 MOUNTING CLIP:.250 DIA £2.94 Add
002 735-0656 PAD-FOOT RH £34.43 Add
003 735-0693 PAD-FOOT LH £12.38 Add
