MTD011610

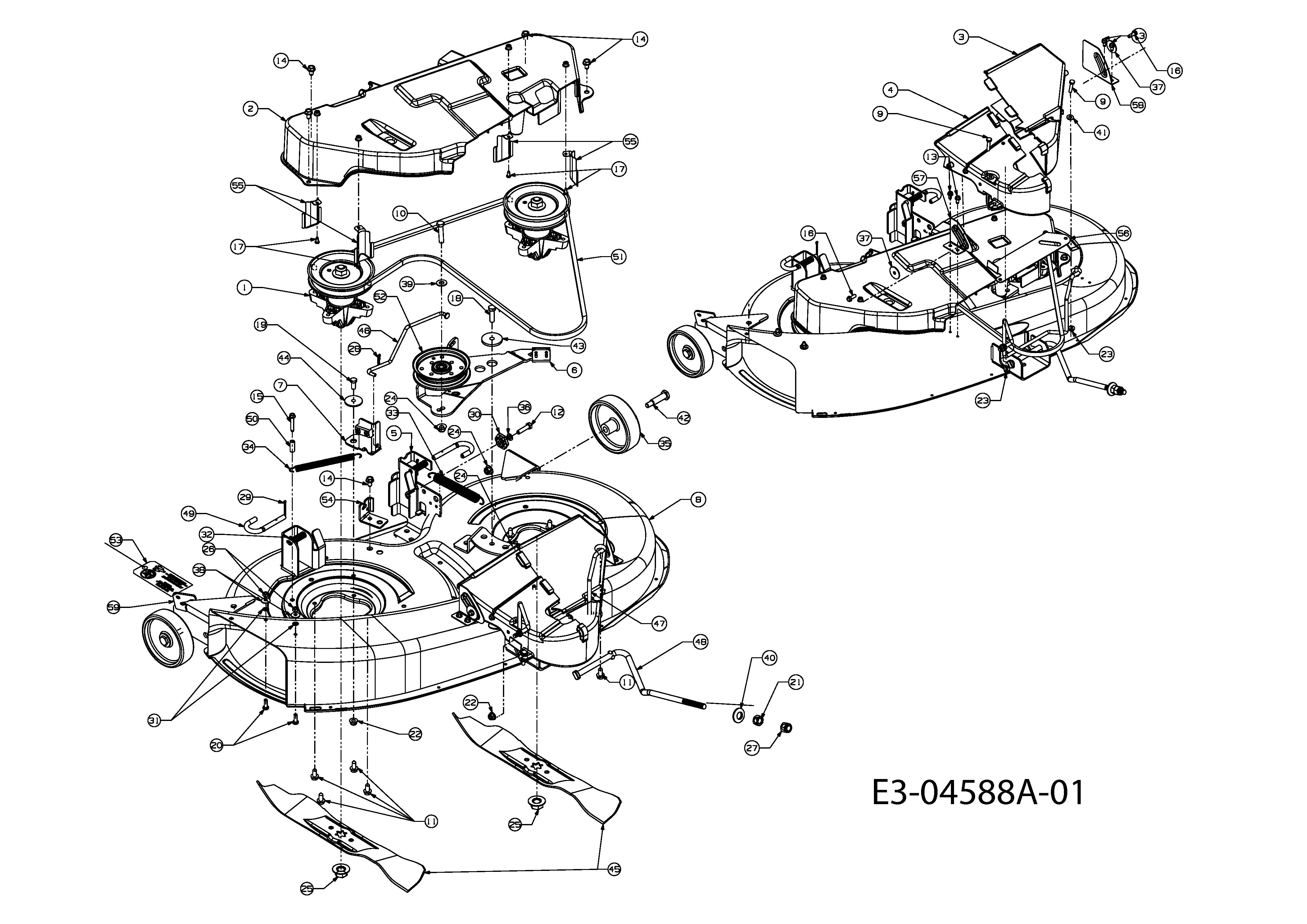

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	618-04474B	SPINDLE 5.75 INCH DIA	£132.96	Add
002	631-04312	COVER 38" DECK	£63.42	Add
003	631-04342	COVER ASM LEFT	£89.28	Add
004	631-04343	CVR ASM:RIGHT	£89.28	Add
005	683-0254B	BRKT:ASM:DECK:HNGR LH LT (OBSOLETE)	N/A
006	683-04138B	BRAKE ASM:DECK:42"	£40.90	Add
007	983-04167	BRAKE ASM:DECK 42" 683-04167	£23.95	Add
008	683-04264C-S	DECK PAN 38 INCH BLACK	£556.92	Add
009	710-0106	HHCS:1/4-20:1.25:GR5:SPEC	£3.95	Add
010	710-0347	HEX SCR	£3.72	Add
011	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
012	710-0528	SCREW (DNR)	£3.55	Add
013	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
014	710-0604A	SCREW	£3.62	Add
015	710-0778	HEX WASHER HEAD SCREW	£3.20	Add
016	710-0895	SCR:HL:1/4-10:0.750:HXINDWSH	£3.51	Add
017	710-0919	SCREW TAPP	£3.07	Add
018	710-3005	BOLT	£3.24	Add
019	710-3008	HEX BOLT	£3.03	Add
020	710-3015	SCREW HEX CAP	£3.33	Add
021	712-0206	NUT	£3.42	Add
022	712-04063	FLANGED NUT	£4.20	Add
023	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
024	712-04065	NUT	£4.02	Add
025	712-05134	BLADE NUT	£3.81	Add
026	712-3006	NUT	£2.77	Add
027	712-3083	NUT	£2.79	Add
028	714-0104	PIN INTERNAL COTTER	£2.78	Add
029	714-0470	COTTER PIN	£5.07	Add
030	717-04074	GEAR DECK ADJUSTMENT	£11.11	Add
031	726-0233	NUT:PUSH:.25 ID X .50 OD	£3.58	Add
032	732-0306A	SPACER	£5.28	Add
033	732-04280B	EXT SPRING	£18.09	Add
034	732-04287	EXT SPRING	£16.41	Add
035	734-0973	WHEEL DECK 5in. DIA	£11.16	Add
036	736-0119	LOCK WASHER 5/16	£3.33	Add
037	736-0211	WASHER:FLAT:.285 x 1.250 x.060	£3.91	Add
038	736-0270	BELL WASHER	£3.91	Add
039	736-0300	WASHER	£2.81	Add
040	736-0317	BELLE WASHER	£8.58	Add
041	736-0463	WASH:FLAT: .250 x .630 x .052	£3.31	Add
042	738-0373	AXLE BOLT	£6.84	Add
043	738-04162C	SPACER	£4.64	Add
044	738-04166	SPACER	£5.21	Add
045	742-0610A	BLADE 19.38" FOR 38" DECK	£43.75	Add
046	747-04381	BRAKE ROD 38"	£18.78	Add
047	747-04998	ROD-ENGAGEMENT	£41.59	Add
048	747-05061	ROD:DECK 38" EURO COVER	£32.18	Add
049	747-1116	QUICK RELEASE PINS RH LONG	£14.71	Add
050	750-0566A	SPACER	£7.75	Add
051	754-04062	BELT	£66.33	Add
052	756-04129C	PUL:IDLR:4.25" DIA 756-04129	N/A	POA
053	771-11725A	TAG:DNGR:RT-99 CHUTE BLNGL	N/A	POA
054	783-04740	BRKT:CBL:DECK ENGAGE (OBSOLETE)	N/A
055	783-05497	BRKT:KEEPR:BELT	£24.51	Add
056	783-06276	BRKT:CVR:FRENCH	N/A	POA
057	783-06283	PLT:PIVOT:FRNCH CVR:REIGHT	£74.24	Add
058	783-06284	PLT:PIVOT:FRENCH CVR:LEFT	£30.07	Add
059	783-1025	STOP:CHUTE	£7.30	Add
