MTD010491

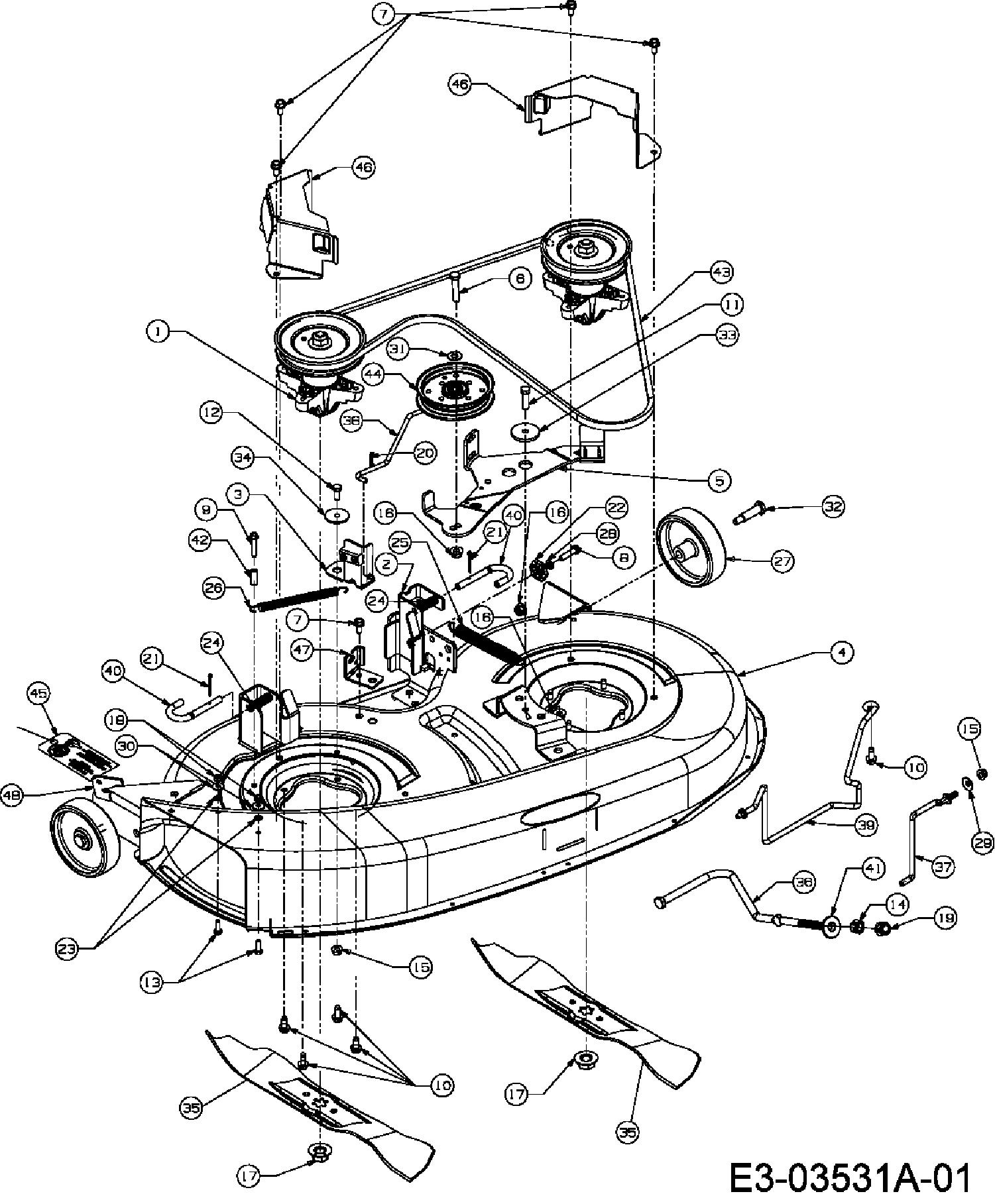

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	618-04495	SPINDLE ASSY.	£128.76	Add
002	683-0254B	BRKT:ASM:DECK:HNGR LH LT (OBSOLETE)	N/A
003	983-04167	BRAKE ASM:DECK 42" 683-04167	£23.95	Add
004	683-04264C-S	DECK PAN 38 INCH BLACK	£556.92	Add
005	683-04352	BRAKE ASM:DECK 38"	N/A	POA
006	710-0347	HEX SCR	£3.72	Add
007	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
008	710-0528	SCREW (DNR)	£3.55	Add
009	710-0778	HEX WASHER HEAD SCREW	£3.20	Add
010	710-1260A	SCREW	£4.00	Add
011	710-3005	BOLT	£3.24	Add
012	710-3008	HEX BOLT	£3.03	Add
013	710-3015	SCREW HEX CAP	£3.33	Add
014	712-0206	NUT	£3.42	Add
015	712-04063	FLANGED NUT	£4.20	Add
016	712-04065	NUT	£4.02	Add
017	712-05134	BLADE NUT	£3.81	Add
018	712-3006	NUT	£2.77	Add
019	712-3083	NUT	£2.79	Add
020	714-0104	PIN INTERNAL COTTER	£2.78	Add
021	714-0470	COTTER PIN	£5.07	Add
022	717-04074	GEAR DECK ADJUSTMENT	£11.11	Add
023	726-0233	NUT:PUSH:.25 ID X .50 OD	£3.58	Add
024	732-0306A	SPACER	£5.28	Add
025	732-04280B	EXT SPRING	£18.09	Add
026	732-04287	EXT SPRING	£16.41	Add
027	734-0973	WHEEL DECK 5in. DIA	£11.16	Add
028	736-0119	LOCK WASHER 5/16	£3.33	Add
029	736-0242	BELL WASHER	£3.72	Add
030	736-0270	BELL WASHER	£3.91	Add
031	736-0300	WASHER	£2.81	Add
032	738-0373	AXLE BOLT	£6.84	Add
033	738-04162C	SPACER	£5.00	Add
034	738-04166	SPACER	£5.21	Add
035	742-0610A	BLADE 19.38" FOR 38" DECK	£43.75	Add
036	747-04322	ROD:DECK:FRNT ADJ .4480" DIA	£31.54	Add
037	747-04355	ROD	£24.05	Add
038	747-04381	BRAKE ROD 38"	£18.78	Add
039	747-04590A	V-belt guide	£47.61	Add
040	747-1116	QUICK RELEASE PINS RH LONG	£14.71	Add
041	748-04069	PIVOT CUP	£4.12	Add
042	750-0566A	SPACER	£7.75	Add
043	754-04062	BELT	£66.33	Add
044	756-04129C	PUL:IDLR:4.25" DIA 756-04129	N/A	POA
045	771-11725A	TAG:DNGR:RT-99 CHUTE BLNGL	N/A	POA
046	783-04602A	CVR:BELT:5.66 DIA	N/A	POA
047	783-04740	BRKT:CBL:DECK ENGAGE (OBSOLETE)	N/A
048	783-1025	STOP:CHUTE	£7.30	Add
