MTD008306

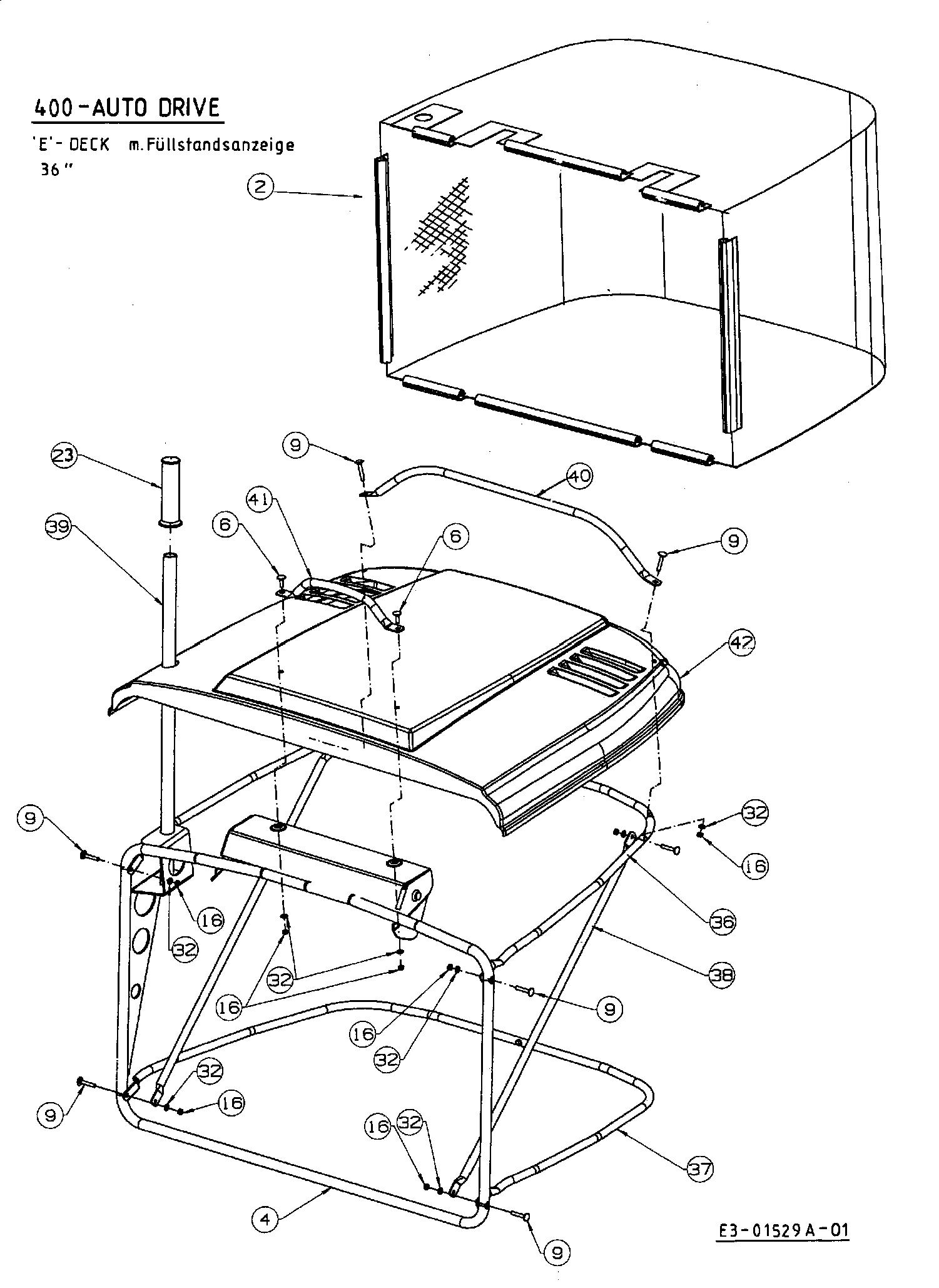

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD008306

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 629-0955 WIRE HARNESS :400er HYDRO £65.38 Add
002 664-0125A GRASS BAG TISSUE £160.96 Add
003 683-0230A637 SUPPORT CPL. £85.49 Add
004 683-0231637 TUBE FRAME ASM WELDING PART 683-0231 £150.58 Add
005 710-0597 HEX SEMS SCREW £2.52 Add
006 710-1360 SCREW DIN 603 M5x16-8.8 £3.41 Add
007 710-1391 Screw 21.1443.55 £4.78 Add
008 710-1397 SCREW M4x35-4.8 DIN 7985 £3.44 Add
009 710-1612 BOLT:CRG:5mm x 30.0 LG £5.01 Add
010 710-1681 HEX BOLT M8 X 20 DIN 933 (RED) £2.75 Add
011 710-1690 HHCS:M6-1:16.00 £3.89 Add
012 710-1691 HEX. SCREW:M6X12 DIN 933 8.8 £4.60 Add
013 711-0679A CLEVIS PIN £5.62 Add
014 711-0701 CLEVIS PIN £4.12 Add
015 712-0636 NUT: HEX: M4: DIN 985 £4.59 Add
016 712-0675 NUT:HEX:M5 x.80:DIN 985 £7.46 Add
017 712-0689 NUT:HEX:M6-1:DIN 934 £2.16 Add
018 712-0690 NUT:HEX:M8-1.25 DIN 934 £2.33 Add
019 712-0691 HEX NUT M6 DIN 985 £1.28 Add
020 712-3006 NUT £2.35 Add
021 714-0147 COTTER PIN £2.96 Add
022 714-0507 COTTER PIN 3/32 DIA £2.65 Add
023 720-0301 GRIP £8.24 Add
024 725-0157 NYLON CABLE TIE 3/16 X .05 X 7.4 N/A POA
025 725-3166 Snap Mount Switch £11.84 Add
026 725-1803 SWITCH £12.70 Add
027 726-0354 CLAMP 16mm £7.07 Add
028 931-0156 CHUTE £47.10 Add
029 732-0750A SPACER: SWITCH ACTUATOR £10.47 Add
031 736-0329 L. WASHER £1.28 Add
032 736-0602 WASHER A 5,3 DIN 125 £3.60 Add
033 736-0648 WASHER:LOCK:B6:DIN 127 £2.12 Add
034 736-0649A WASHER:LOCK:B8:DIN 12 736-0649 £2.17 Add
035 749-0966637 HITCH TUBE 400 749-0966 £52.39 Add
036 749-1009637 TUBE;GRSBG:UPPER:#03280011 749-1009 N/A POA
037 749-1010637 TUBE:GRSBG:LOWER:#03280014 749-1010 N/A POA
038 749-1011 BRACE-VAR SP £20.98 Add
039 749-1012A TUBE:LVR:BAG:LIFT £22.49 Add
040 749-1013 HANDLE LONG £29.53 Add
041 749-1014637 HANDLE SHORT 749-1014 N/A POA
042 783-0583665 HOOD:CATCHER £115.82 Add
043 683-0428 HITCH BRACKET £29.40 Add
044 783-0858637 PLT:RR DIS:36" 783-0858 £56.17 Add
046 783-0931638 SWITCH BRACKET, BAG PRESENT £19.15 Add
047 783-0933-Z BRACKET FILL LEVEL BAG 783-0933 N/A POA
048 913-04339665 GRSBG: PNL: 400 HYD: E-DECK £581.86 Add
049 753-0761 SCREW PACK:400 HYD:E-DECK £9.63 Add
46A 783-0931665 ANGLE:BRKT:SAFETY SWITCH £17.97 Add
