MTD008300

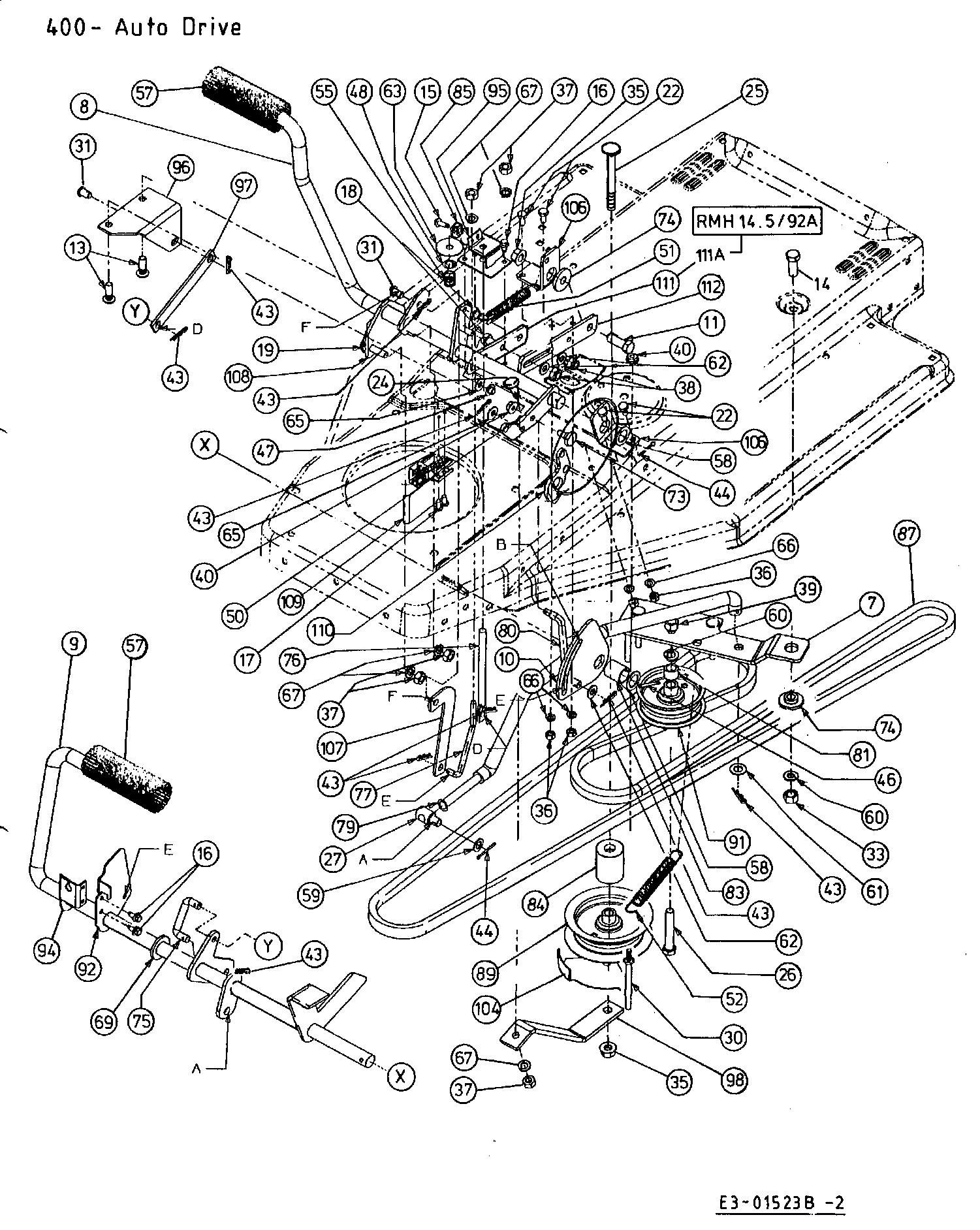

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD008300

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 17840 TRANSAXLE BRACKET REINFORCE £12.77 Add
002 618-0556A GEAR £310.72 Add
003 647-0075-Z LVR ASM SHIFT (OBSOLETE) N/A POA
004 647-0076 ROD ASM: SHFT: 400 £39.67 Add
005 647-0077 ROD ASM:SHFT £29.74 Add
006 656-04029 PUL ASM:VAR SPD £319.35 Add
007 683-0429A IDLER ASSEMBLY. £23.57 Add
008 683-0434 PED ASM:BRAKE:400 £54.85 Add
009 683-0435 PED ASM:DR:400 £57.07 Add
010 683-0437 BRAKE BRACKET £16.72 Add
011 710-0514 HEX BOLT £3.22 Add
012 710-0538 HEX L BOLT £3.07 Add
013 710-1012 BOLT:RIBBED:HD 5/16-24 x.87"LG £3.89 Add
014 710-1039 HEX BOLT 3/8-24 x 1 INCH Lg £2.78 Add
015 710-1237 SCREW SELF TAP £2.38 Add
016 710-1355 SCR:TT:M5-.8:10.00:HXFLG £2.46 Add
017 710-1388 SCREW £2.74 Add
018 710-1681 HEX BOLT M8 X 20 DIN 933 (RED) £2.75 Add
019 710-1682 SCR:M8-1:25.00 LG:DIN 933 £3.02 Add
020 710-1683 SCR:M8-1:30.00 LG:DIN 933 £2.64 Add
021 710-1685 SCR:M8-1:75.00 LG:DIN 931 £5.54 Add
022 710-1691 HEX. SCREW:M6X12 DIN 933 8.8 £4.60 Add
023 710-1714 Screw 21.1441.67 £3.57 Add
024 710-1746 MASHROOM HEAD SQUARE NECK BOLT £3.08 Add
025 710-1813 SCR:CRG:3/8-16:GR5:3.50 £6.93 Add
026 710-3011 HHCS:3/8-16:2.25:GR5:STD £6.93 Add
027 711-0198 PIVOT BUSHING £9.13 Add
028 711-0677 FERRULE:5/16-18 x.312 DIA £16.07 Add
029 711-0993 BELT GUARD PIN Ò1/4 x 1.43 £5.10 Add
030 711-1000 BELT KEEPER £2.89 Add
031 711-1229 BOLT 25.7428.19 £19.22 Add
032 711-1407 LINK £11.71 Add
033 712-0241 HEX NUT 3/8-24 £2.38 Add
034 712-0329 NUT-HEX £8.58 Add
035 712-0431 NUT £2.71 Add
036 712-0689 NUT:HEX:M6-1:DIN 934 £2.16 Add
037 712-0690 NUT:HEX:M8-1.25 DIN 934 £2.33 Add
038 712-0692 HEX NUT £2.57 Add
039 712-3017 NUT:JAM:3/8-16:GR5 £2.49 Add
040 712-3027 LOCK NUT £2.38 Add
041 712-3035 NUT:JAM:9/16-18:GRADE 5 £3.89 Add
042 714-0101 PIN:COT:INT:.08 X 1.42 £3.57 Add
043 714-0104 PIN INTERNAL COTTER £2.36 Add
044 714-0111 COTTER PIN £2.71 Add
045 714-0149B COTTER PIN £2.78 Add
046 714-0470 COTTER PIN £2.50 Add
047 726-0106 CAP SPEED NUT £2.82 Add
048 726-0201 SPEED NUT £2.02 Add
049 726-0457 CLIP £7.96 Add
050 732-0357A EXTENSION SPRING £8.02 Add
051 732-0429A SPRING EXTENSION £7.31 Add
052 732-0470A EXTENSION SPRING £8.32 Add
053 732-0525 COMP SPRING CLIP £2.65 Add
054 732-0637 EXTENSION SPRING £5.01 Add
055 732-0973 SPR:COMP:11.70 ID X 19.06 LG £3.27 Add
056 732-1015A SPRING £13.98 Add
057 735-0239 FOOT PAD £6.34 Add
058 736-0116 WASH:FLAT:.635 x.93 x.06 £4.33 Add
059 736-0140 WASH:FLAT:.385 x.62 x.063 £3.89 Add
060 736-0169 L. WASHER £2.45 Add
061 736-0185 FLAT WASHER (RED) £3.04 Add
062 736-0264 WASH:FLAT:.330 x.630x.0635 £2.87 Add
063 736-0362 WASH-FLAT:.330 x 1.25 x.06:HD £4.62 Add
064 736-0427 BELL:WASH:.567 x 1.125 x .06 £3.57 Add
065 736-0463 WASH:FLAT: .250 x .630 x .052 N/A POA
066 736-0648 WASHER:LOCK:B6:DIN 127 £2.12 Add
067 736-0649A WASHER:LOCK:B8:DIN 12 736-0649 £2.17 Add
068 736-0700 FLAT WASHER £1.90 Add
069 736-0705 WASHER £9.40 Add
070 736-0708 Lockwasher 24.8190.18 £2.42 Add
071 736-3024 WASH:FL:.469 X .750 X .06 £3.27 Add
073 738-0255 BOLT SHOULDER £5.54 Add
074 738-0347 SPACER £3.50 Add
075 747-1048 U-ROD,CRUISE £8.57 Add
076 747-1167 ROD: CONT £17.15 Add
077 747-1180A PLGR:REL:CRUS £12.79 Add
078 747-1289 ROD-BRAKE £43.44 Add
079 747-1237 ROD:CONT:AUTO DRIVE 10MM N/A POA
080 747-1238 ROD:BRAKE:400 £32.08 Add
081 748-0270 SPCR:.440 ID X .625 X .445 £3.40 Add
082 748-0331 SHLD SPACER £3.56 Add
083 750-0379 SPACER .657 ID X .87 OD X .85 £4.62 Add
084 750-1130 SPACER £21.99 Add
085 751B213146 CASING CLAMP £3.32 Add
086 754-0468 BELT £50.75 Add
087 754-0492 BELT:V-TYPE:5L X 97.1 LG POLY £36.78 Add
088 756-0399 PUL:IDLR:V-TYPE 3.5 DIA £71.19 Add
089 756-0643A PUL IDLER FLAT 3.12 £20.64 Add
090 756-0950 PUL:V-TYP:8.0 x 5/8-36 £52.86 Add
091 756-04224 IDLER PULLEY £23.48 Add
092 783-0816 BRKT:BRAKE £7.44 Add
093 783-0823A637 BRKT:AXLE:MT 783-0823A £11.64 Add
094 783-0906 BRKT: £10.87 Add
095 783-0909 BRKT:CRUISE £11.95 Add
096 783-0929 BRACKET £5.89 Add
097 783-0930 PLATE £5.93 Add
098 783-0988637 DRAW BAR 783-0988 N/A POA
099 783-0990 BRKT: SHFT: TRANSMATIC £22.58 Add
100 783-0991637 BRKT: SHLD GRASS 783-0991 N/A POA
101 783-1016B BRKT:ROD:SPEED CONTROL £8.80 Add
102 783-1070A637 BRKT: VAR: PUL 783-1070A N/A POA
103 683-0336637 BRKT ASM:BELT GUARD:400:E-DECK 683-0336 N/A POA
104 783-1087637 GUARD:BELT 783-1087 £8.48 Add
105 783-1092637 BRKT:BRAKE:ROD HLDR 783-1092 N/A POA
106 783-1105 BRKT:SUPT:BRAKE PEDAL £8.60 Add
107 783-1106 PLT:CRUISE:REL £7.75 Add
108 783-1108 PLT:SUPT:BRAKE ROD £4.61 Add
109 783-1113A BRKT:SW:SUPT £8.68 Add
110 783-1128A BRKT:LATCH:BRK £4.29 Add
111 783-1277 PLT:PED:FRT:LOCKOUT £19.99 Add
111A 111.11.114 SRAP:CHUTE 723-0617 £9.20 Add
112 783-1278 PLT:PRD:RR:LOCKOUT £31.46 Add
113 734-0592-G WHL:COMP:18 x 6.5 7 £150.02 Add
114 734-0294 TIRE:18 X 6.5 X 8 SQ SH £99.37 Add
115 634-04174662 RIM ASM-8.0X5.38 w/VALVE £76.58 Add
116 734-0255 VALVE - TUBELESS AIR £5.89 Add
117 736-0242 BELL WASHER £3.14 Add
118 710-0627 HEX SCREW £2.81 Add
119 731-2290B SMALL HUBCAP £5.88 Add
